Clearance and Design Specifications
SpecificationsType *904, and 998 Automatic Transmissions.
*There are two versions of the 904 Type transmissions, This one has a lock-up Torque Converter.
Fluid Capacity
^ Model 904 with four-cylinder engine: 14.2 pints (6.67 liters).
^ Model 904 with sjx-cylinder engine: 17.1 pints (8.1 liters).
^ Model 998 with six-cylinder engine: 17.1 pints (8.1 liters).

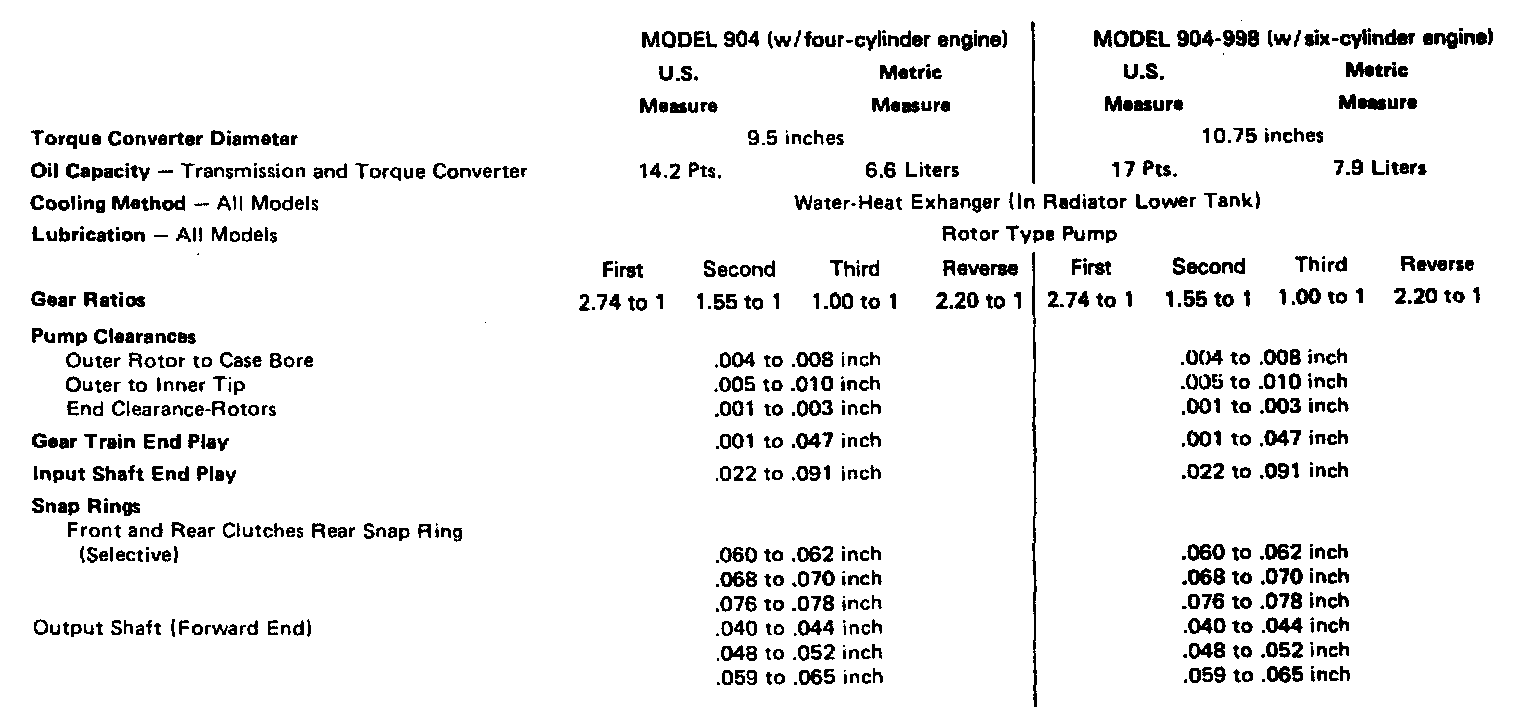

Specifications:

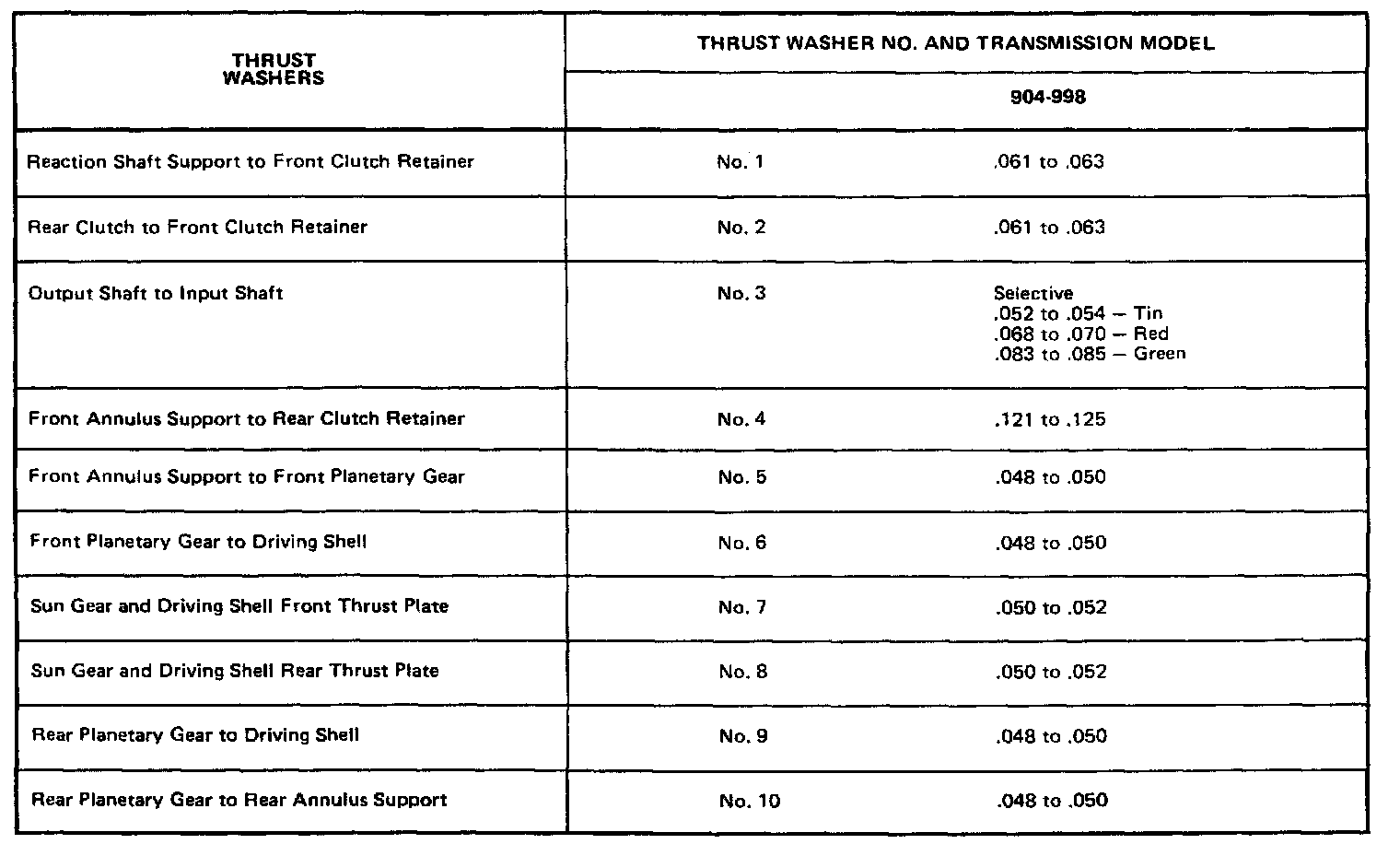

Thrust Washer Chart:

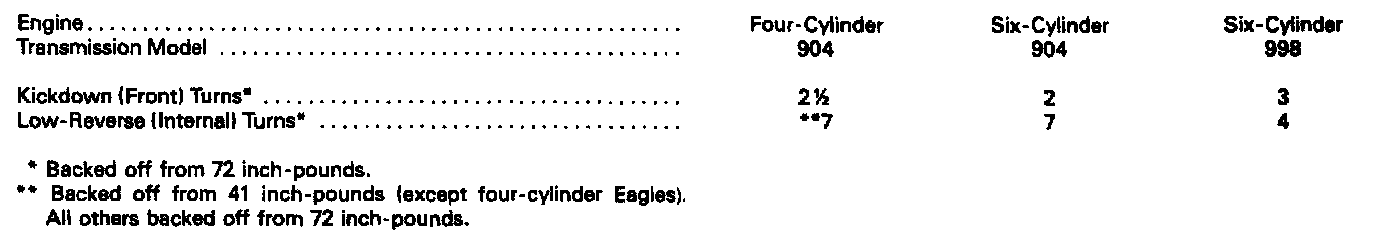

Band Adjustments:

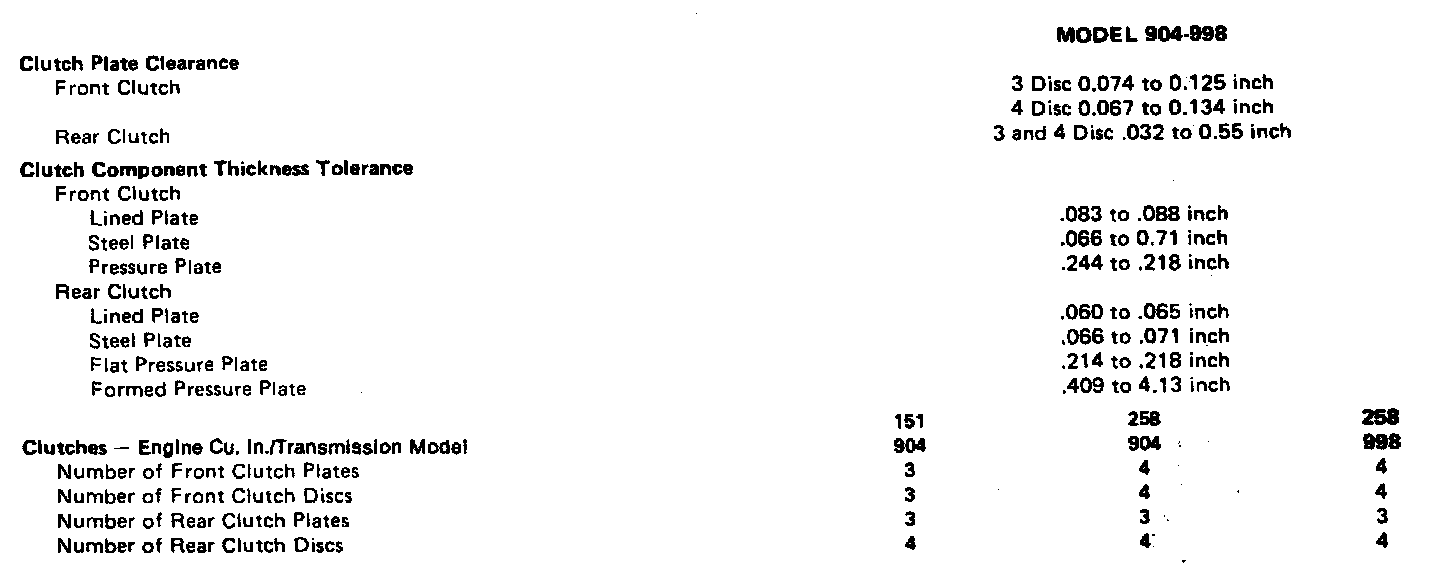

Specifications:
