Torque Specifications

Torque Specifications

Service Set-To Torques should be used when assembling components. Service In-Usn Recheck Torques should be used for checking a pre-tightened Item.

Front Differential

Torque Specifications:

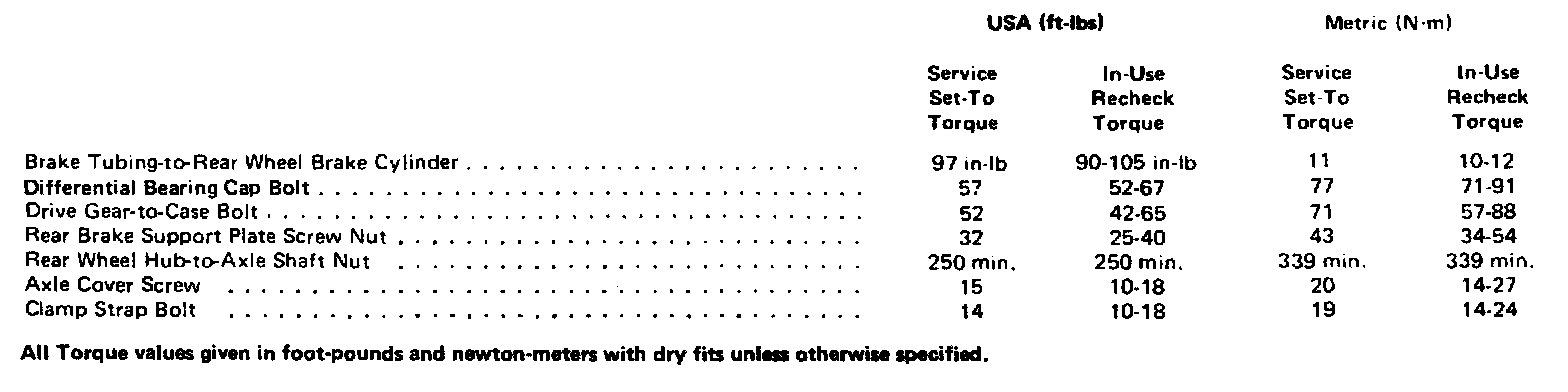

Rear Differential

Torque Specifications:
