Coolant Temperature Sensor (Cts)

The coolant temperature sensor is located in the thermostat housing, above water pump. See Fig 1 .

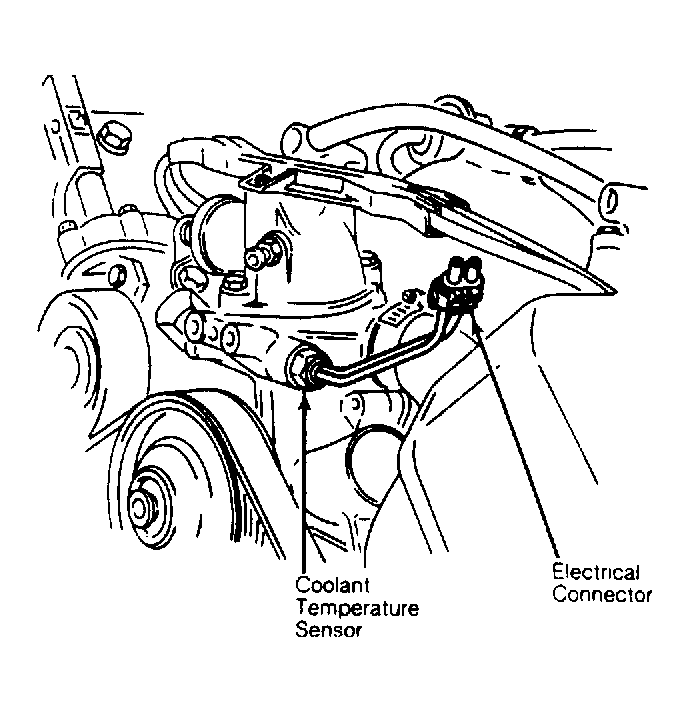

Fig 1: Coolant Temperature Sensor (CTS)
G54311
