Fuel Pressure Regulator

The fuel pressure regulator is located in-line with the fuel return tube. See Fig 1 .

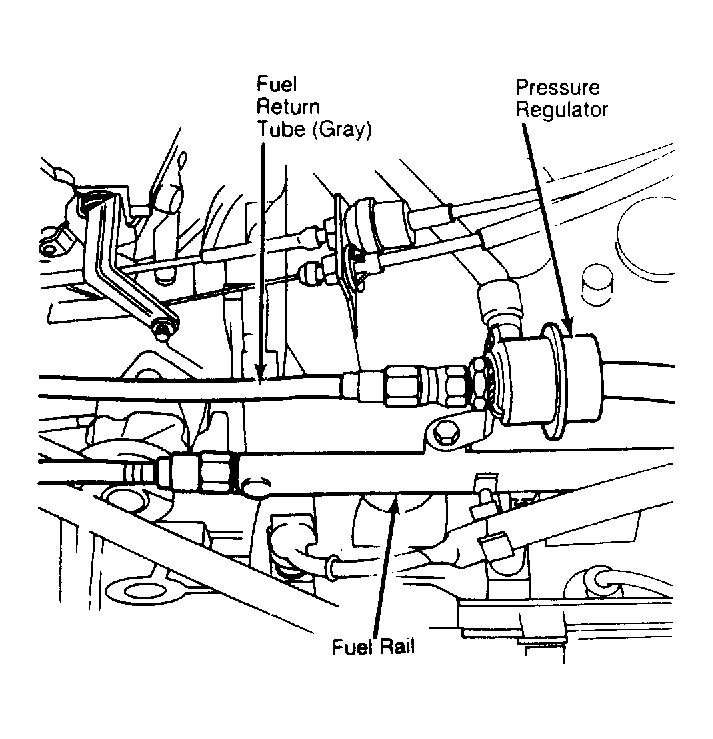

Fig 1: Fuel Pressure Regulator Location
G54310
