Connector Identification

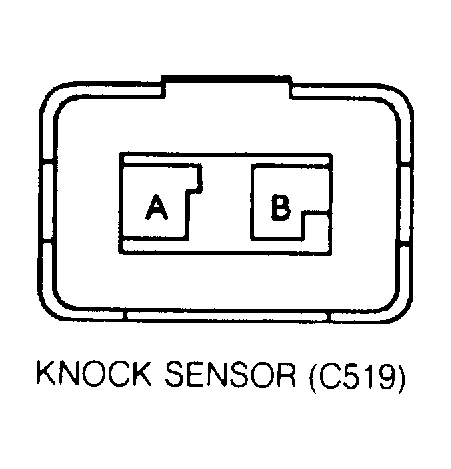

Fig 1: Knock Sensor Connector Terminal Identification

G108305

Courtesy of CHRYSLER MOTORS.

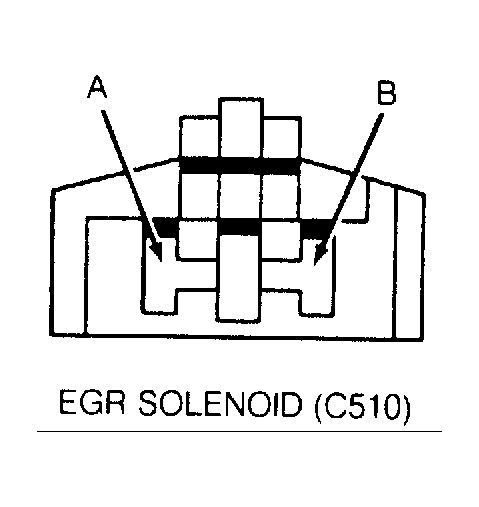

Fig 2: EGR Solenoid Connector Terminal Identification

G108306

Courtesy of CHRYSLER MOTORS.

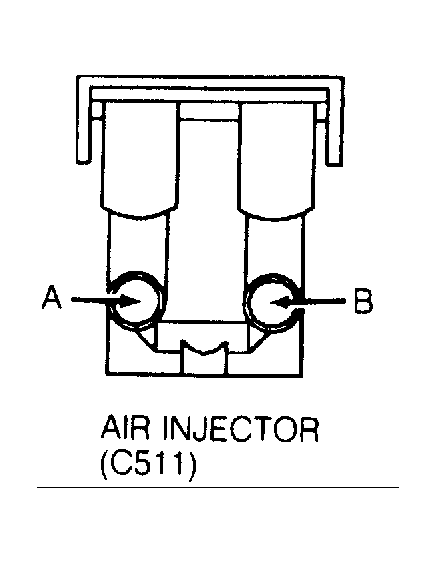

Fig 3: Air Injector Connector Terminal Identification

G108307

Courtesy of CHRYSLER MOTORS.

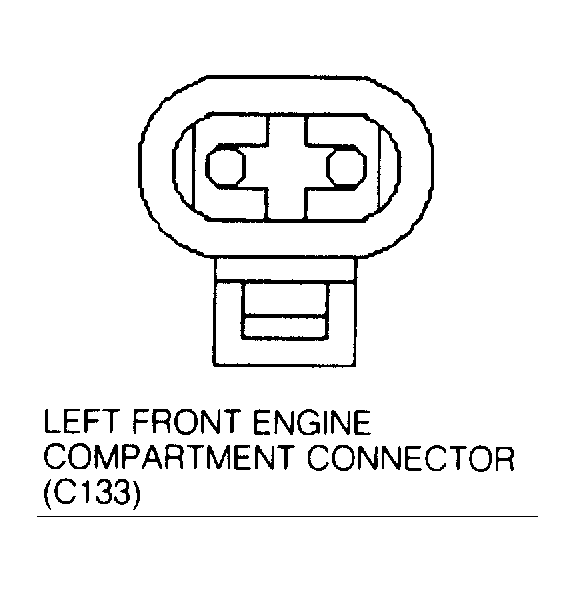

Fig 4: Left Front Engine Compartment Connector Terminal Identification

G108308

Courtesy of CHRYSLER MOTORS.

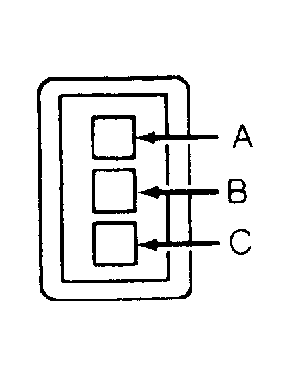

Fig 5: Coolant Fan Connector Identification

G108309

Courtesy of CHRYSLER MOTORS.

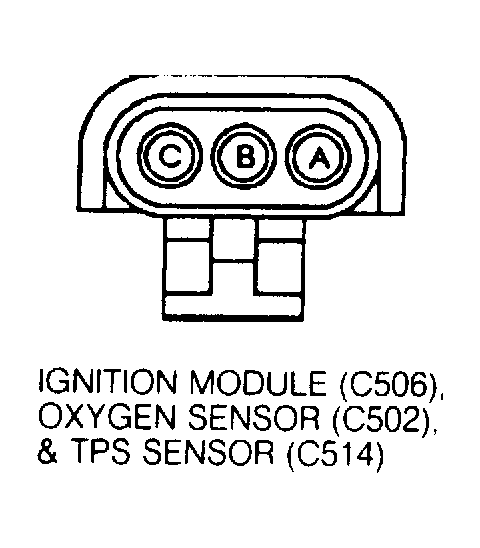

Fig 6: Ignition Module (C506), O2 Sensor (C502), & TPS Sensor (C514) Connector Identification

G108310

Courtesy of CHRYSLER MOTORS.

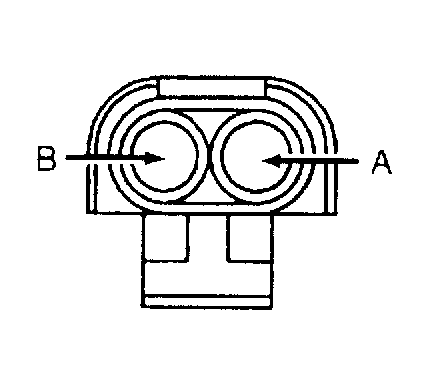

Fig 7: Ignition Module (507) & MAT Sensor (C568) Connector Identification

G108311

Courtesy of CHRYSLER MOTORS.

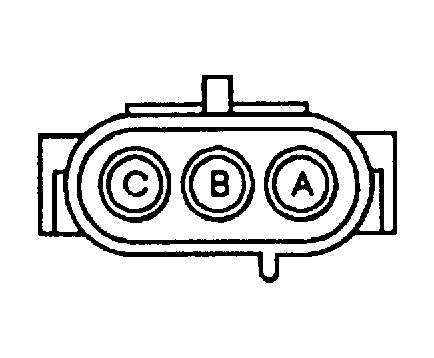

Fig 8: Crankshaft Position/ESS (C512) & MAP Sensor (C513) Connector Identification

G108312

Courtesy of CHRYSLER MOTORS.

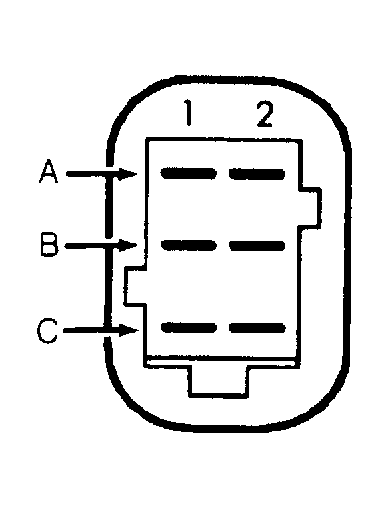

Fig 9: Transmission Control Unit (C677) Connector Identification

G108313

Courtesy of CHRYSLER MOTORS.

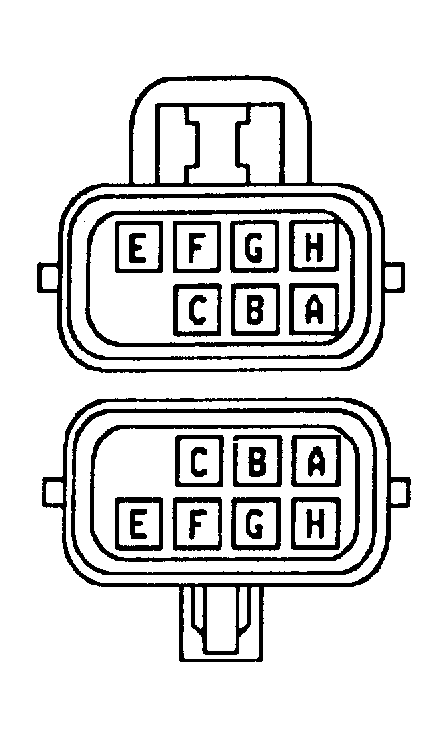

Fig 10: Center Rear Engine Compartment (C106) Connector Identification

G108314

Courtesy of CHRYSLER MOTORS.

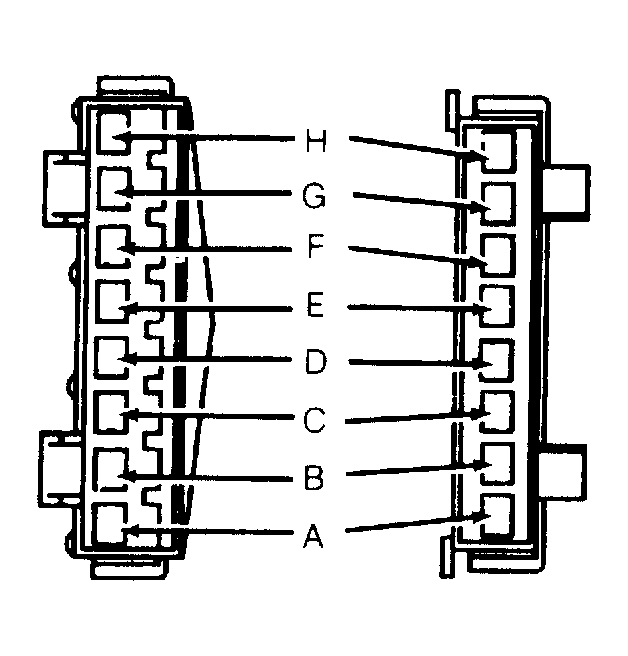

Fig 11: Under Right Side Instrument Panel (C114) Connector Identification

G108315

Courtesy of CHRYSLER MOTORS.

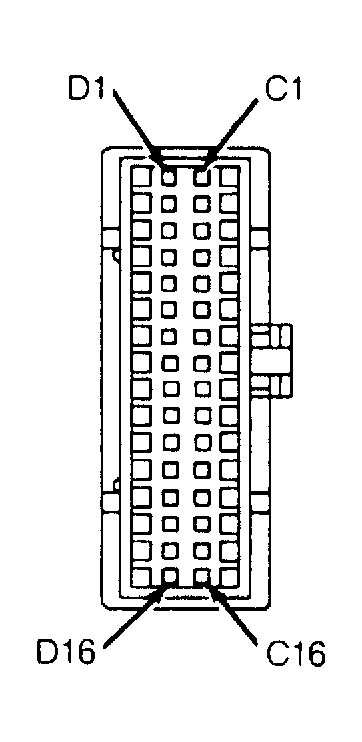

Fig 12: Electronic Control Unit (C505) Connector Identification

G108316

Courtesy of CHRYSLER MOTORS.

Fig 13: Left Front Corner Engine Compartment Connector (C107) Identification

G108317

Courtesy of CHRYSLER MOTORS.

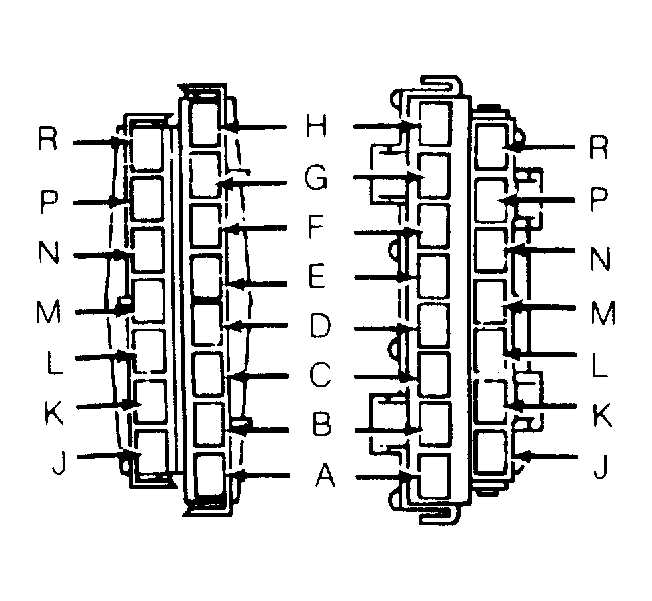

Fig 14: Under Instrument Panel Left Side (C109) Connector Identification

G108318

Courtesy of CHRYSLER MOTORS.

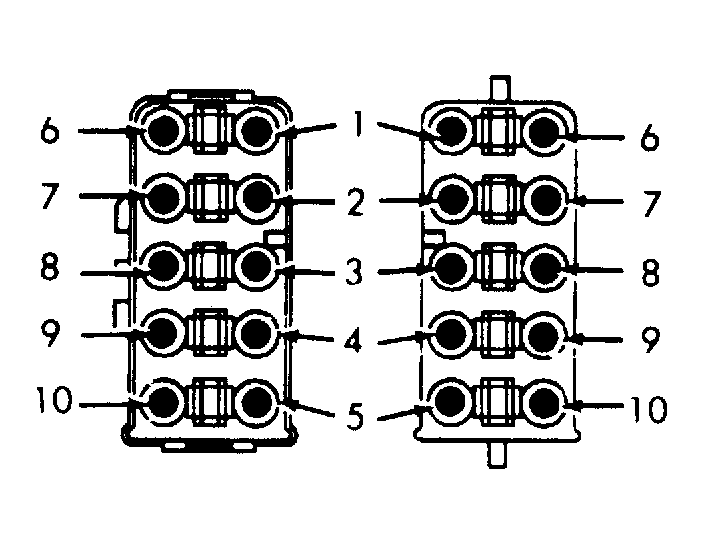

Fig 15: Under Instrument Panel Right Side (C108) Connector Identification

G108319

Courtesy of CHRYSLER MOTORS.

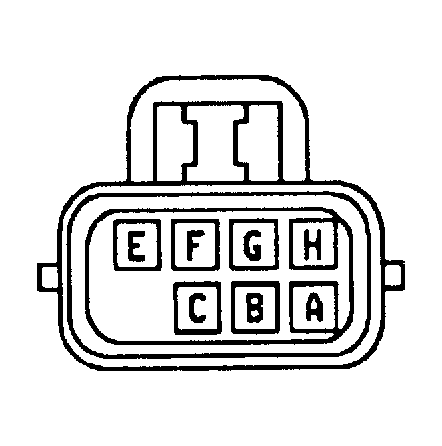

Fig 16: Center Rear Engine Compartment (C106) Connector Identification

G108320

Courtesy of CHRYSLER MOTORS.

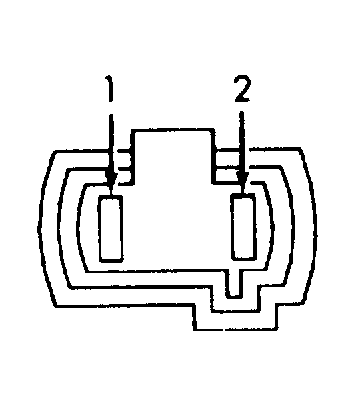

Fig 17: A/C Low Pressure Switch (C617) Connector Identification

G108321

Courtesy of CHRYSLER MOTORS.

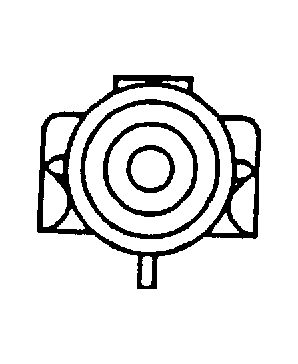

Fig 18: A/C Compressor Clutch Connector Identification

G108322

Courtesy of CHRYSLER MOTORS.

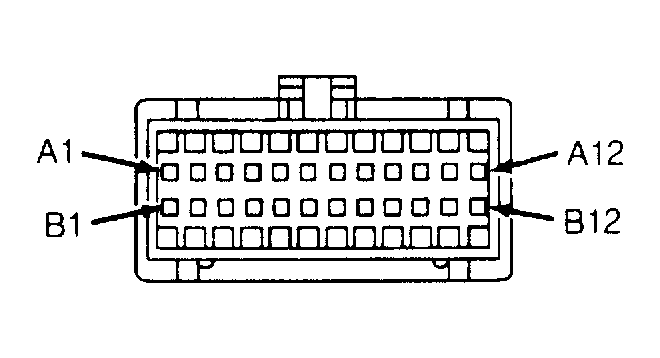

Fig 19: Electronic Control Unit (C504) Connector Identification

G108323

Courtesy of CHRYSLER MOTORS.

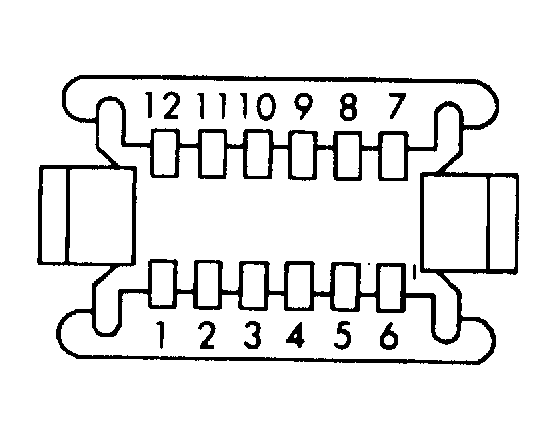

Fig 20: Behind Instrument Cluster (FC542) Connector Identification

G108324

Courtesy of CHRYSLER MOTORS.

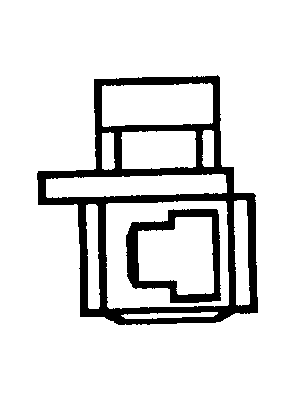

Fig 21: Under Left Side Instrument Panel (C143) Connector Identification

G108325

Courtesy of CHRYSLER MOTORS.

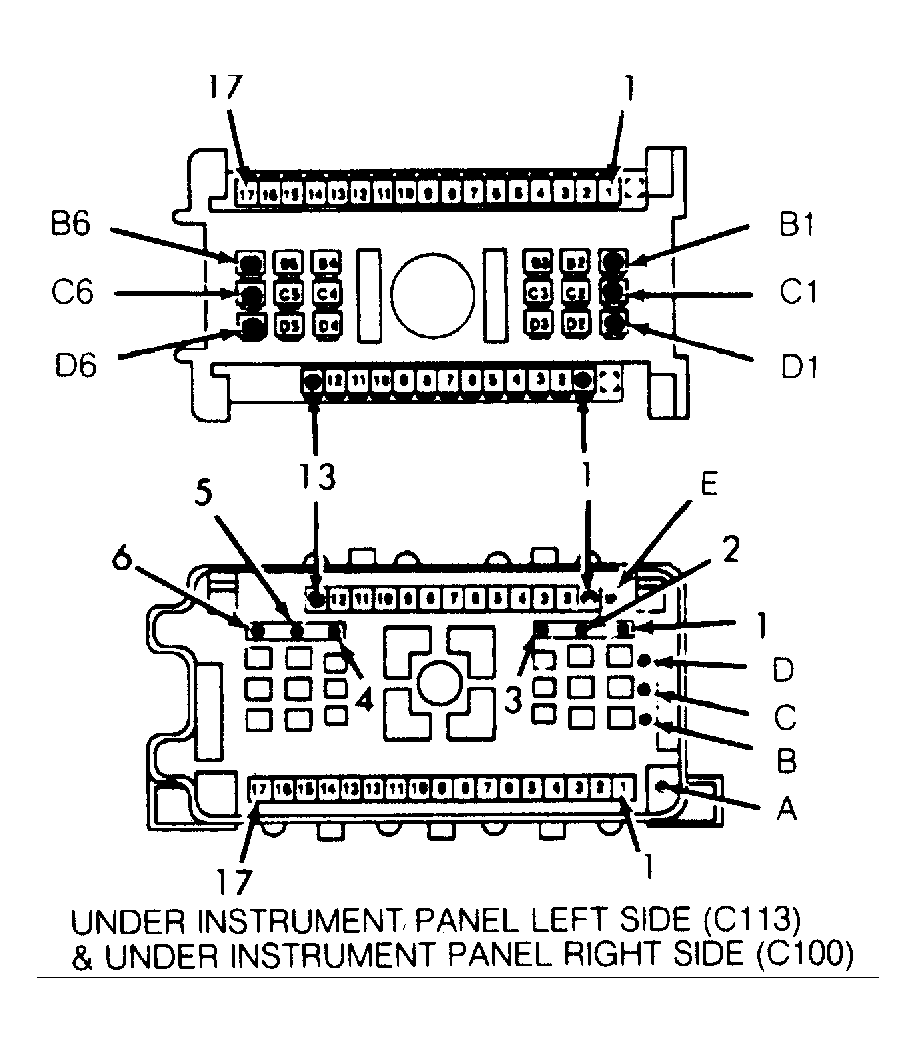

Fig 22: Under Instrument Panel Left Side (C113) & Under Instrument Panel Right Side (C100) Connector Identification

G108326

Courtesy of CHRYSLER MOTORS.

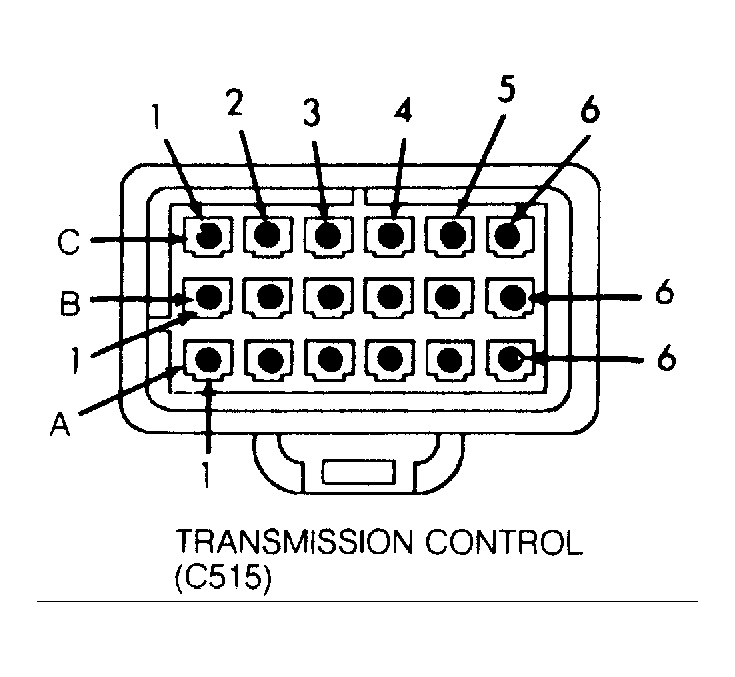

Fig 23: Transmission Control (C515) Connector Identification

G108327

Courtesy of CHRYSLER MOTORS.

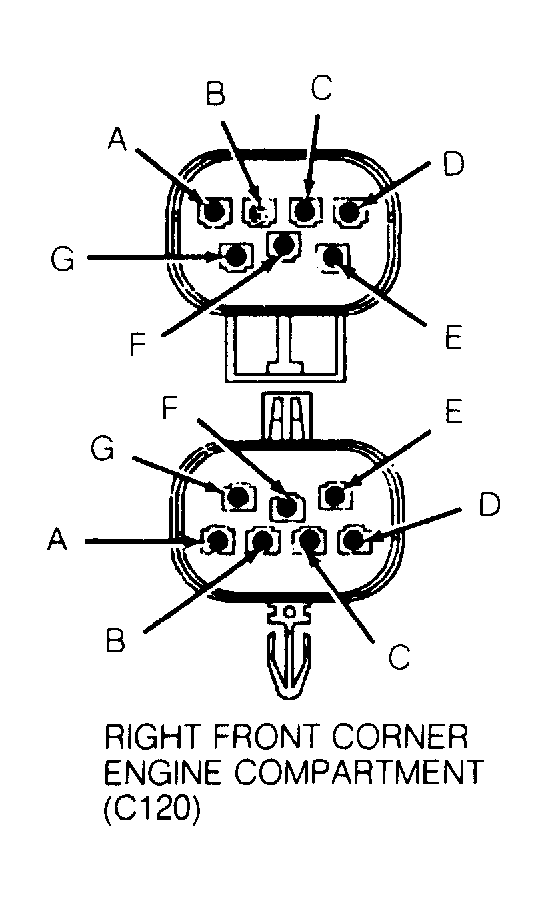

Fig 24: Right Front Corner Engine Compartment (C120) Connector Identification

G108328

Courtesy of CHRYSLER MOTORS.

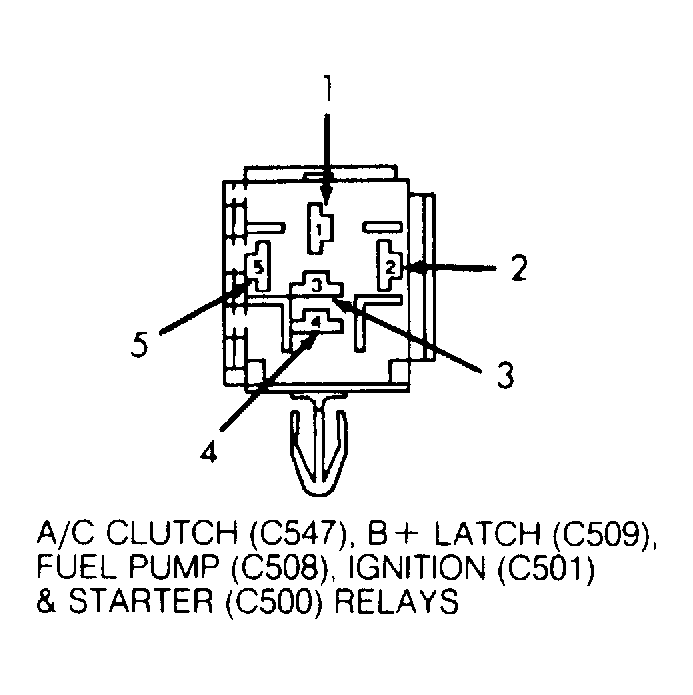

Fig 25: A/C Clutch (C547), B+ Latch (C509), Fuel Pump (C508), Ignition (C501) & Starter (C500) Relays Connector Identification

G108331

Courtesy of CHRYSLER MOTORS.

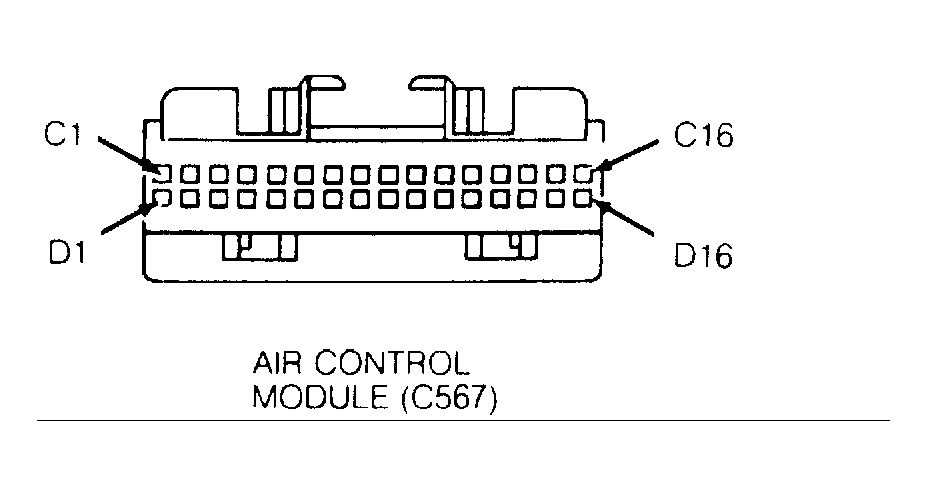

Fig 26: Air Control Module (C567) Connector Identification

G108333

Courtesy of CHRYSLER MOTORS.

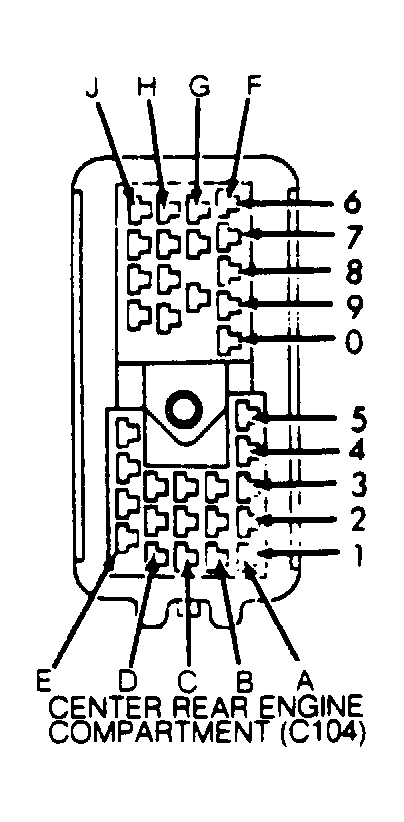

Fig 27: Center Rear Engine Compartment (C104) Connector Identification

G108329

Courtesy of CHRYSLER MOTORS.

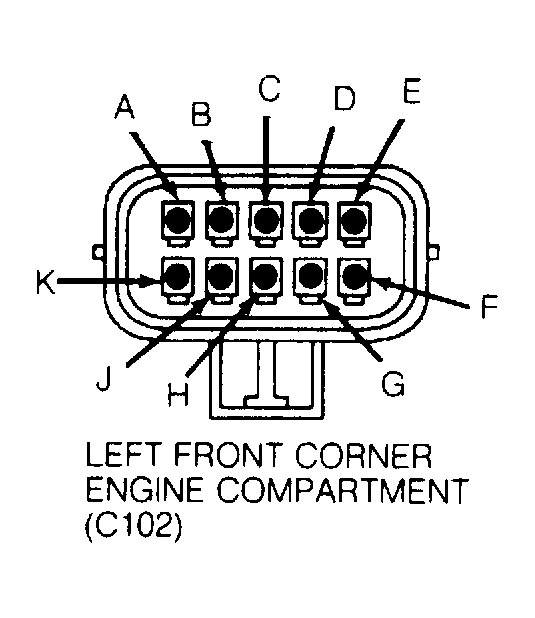

Fig 28: Left Front Corner Engine Compartment (C102) Connector Identification

G108330

Courtesy of CHRYSLER MOTORS.

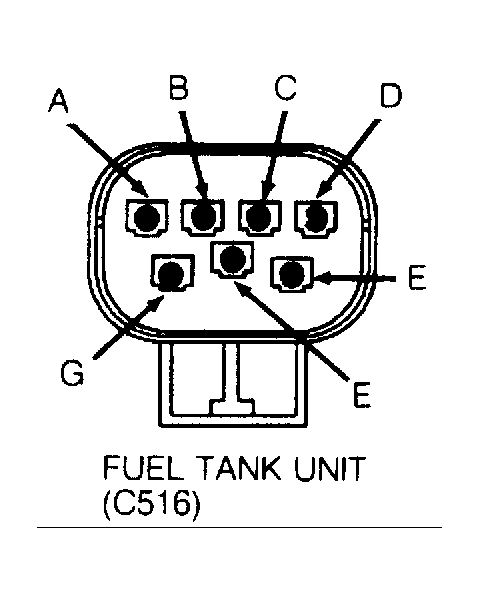

Fig 29: Fuel Tank Unit (C516) Connector Identification

G108332

Courtesy of CHRYSLER MOTORS.

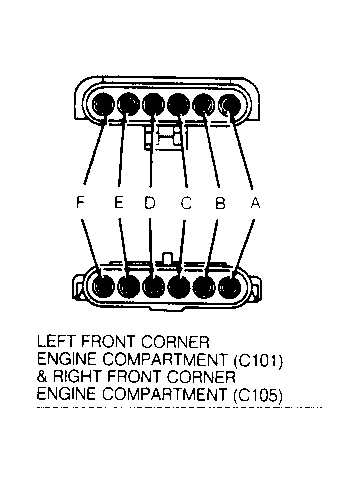

Fig 30: Left Front Corner Compartment (C101) & Right Front Corner Engine Compartment (C105) Connector Identification

G108334

Courtesy of CHRYSLER MOTORS.

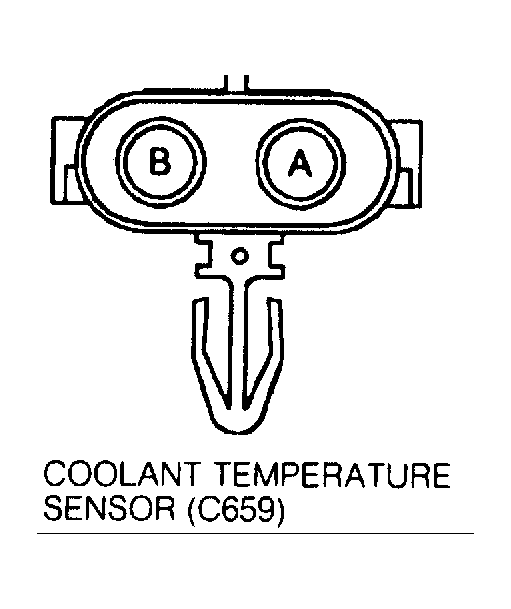

Fig 31: Coolant Temperature Sensor (C659) Connector Identification

G108335

Courtesy of CHRYSLER MOTORS.

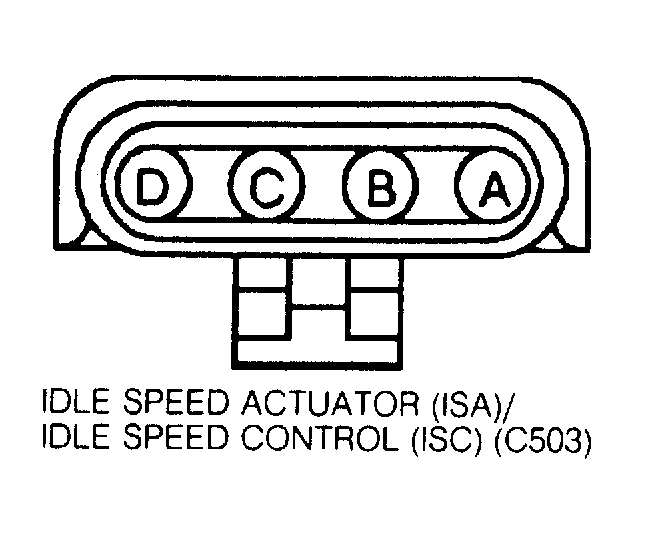

Fig 32: Idle Speed Actuator/Idle Speed Control (ISA/ISC) (C503) Connector Identification

G108336

Courtesy of CHRYSLER MOTORS.

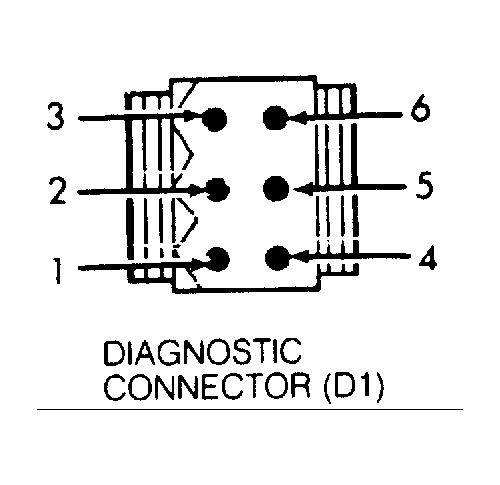

Fig 33: Diagnostic Connector (D1) Connector Identification

G108337

Courtesy of CHRYSLER MOTORS.

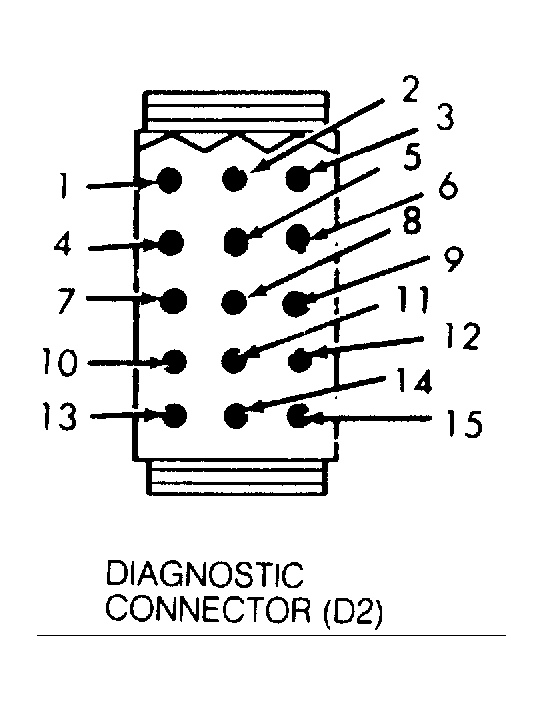

Fig 34: Diagnostic Connector (D2) Connector Identification

G108338

Courtesy of CHRYSLER MOTORS.

NOTE: The following trouble shooting charts and illustrations are courtesy of Chrysler Motors.
