Fault 1012 - Ignition Control Module Line Low

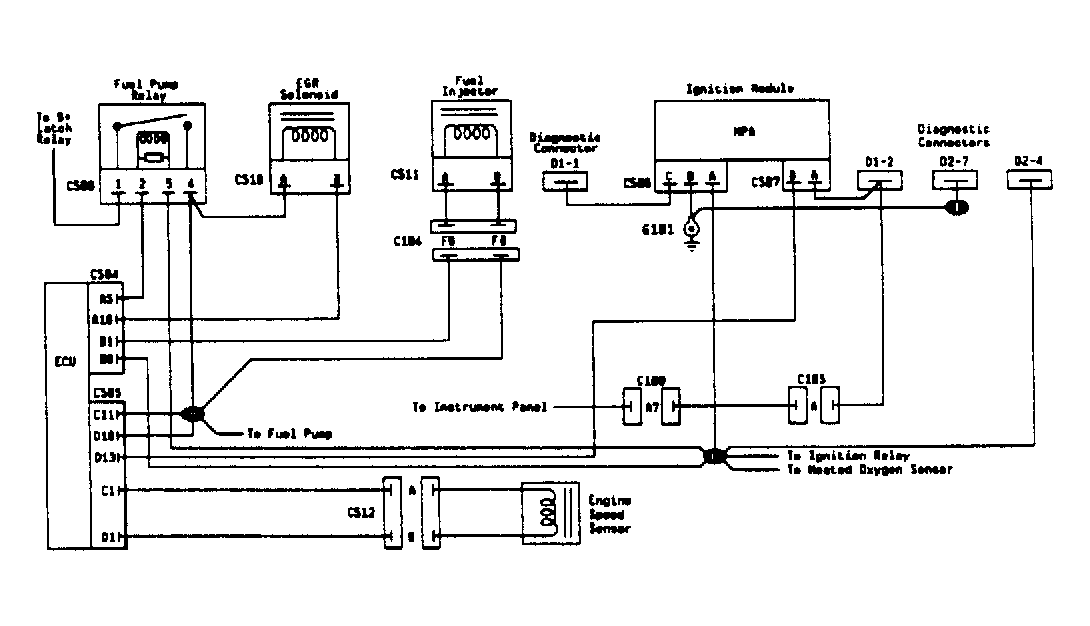

Fig 1: Fault 1012 (1 of 2) - Ignition Control Module Schematic
G108140

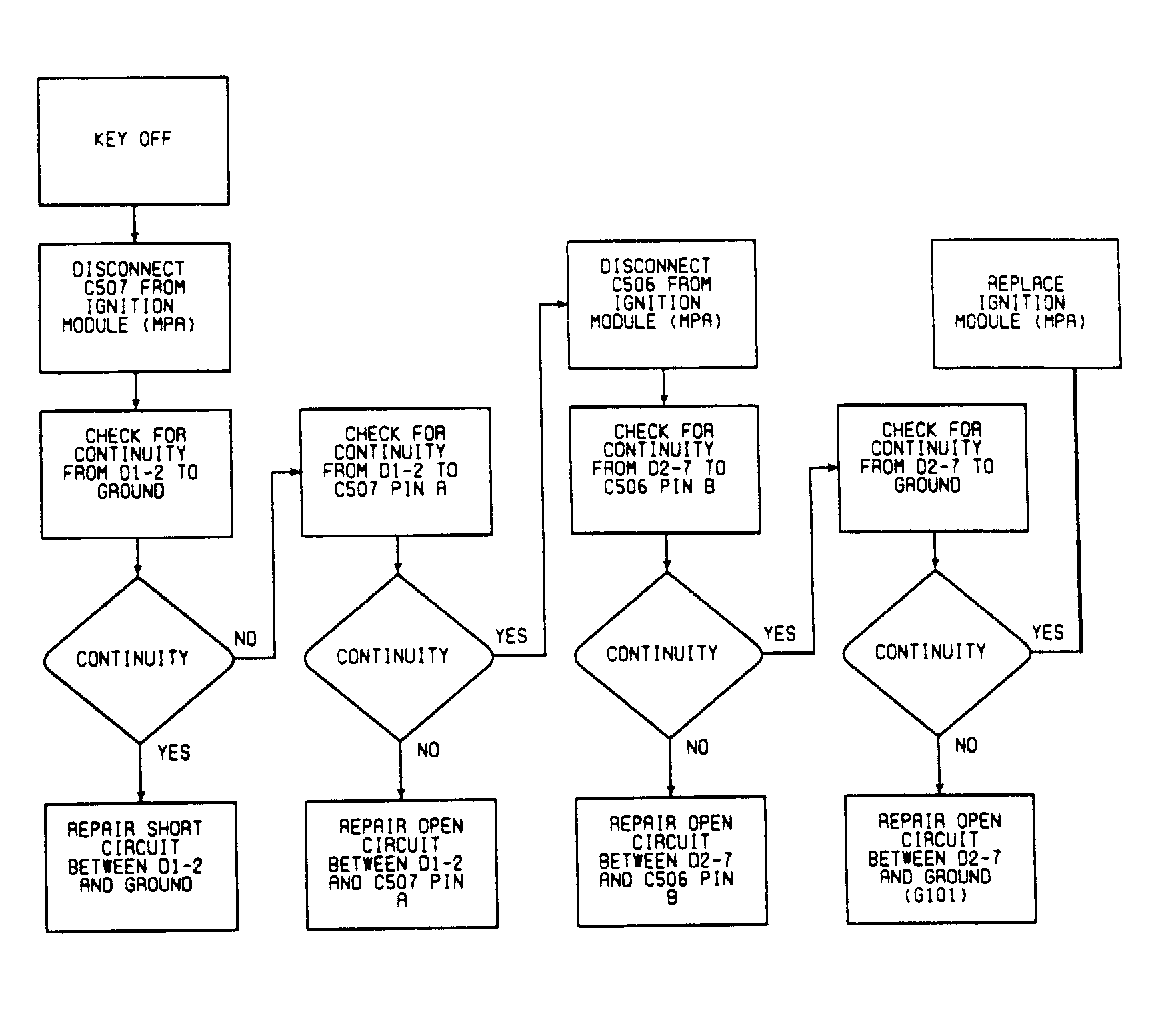

Fig 2: Fault 1012 (2 of 2) - Ignition Control Module Line Low Flow Chart
G108141
