Fault 1013 - Ignition Control Module Line High

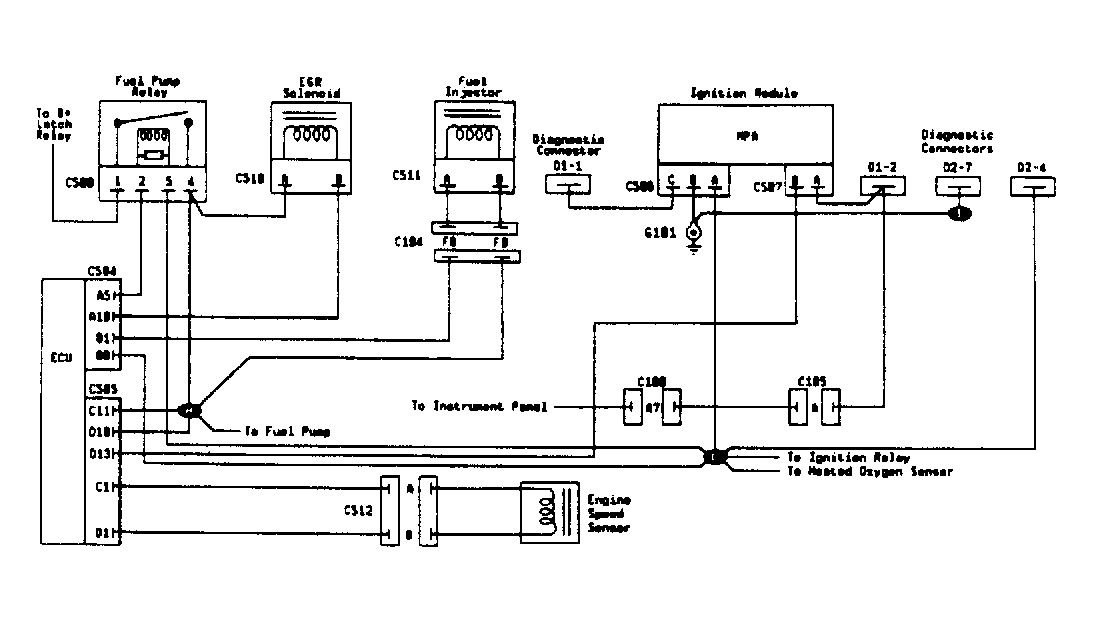

Fig 1: Fault 1013 (1 of 2) - Ignition Control Module Schematic
G108142

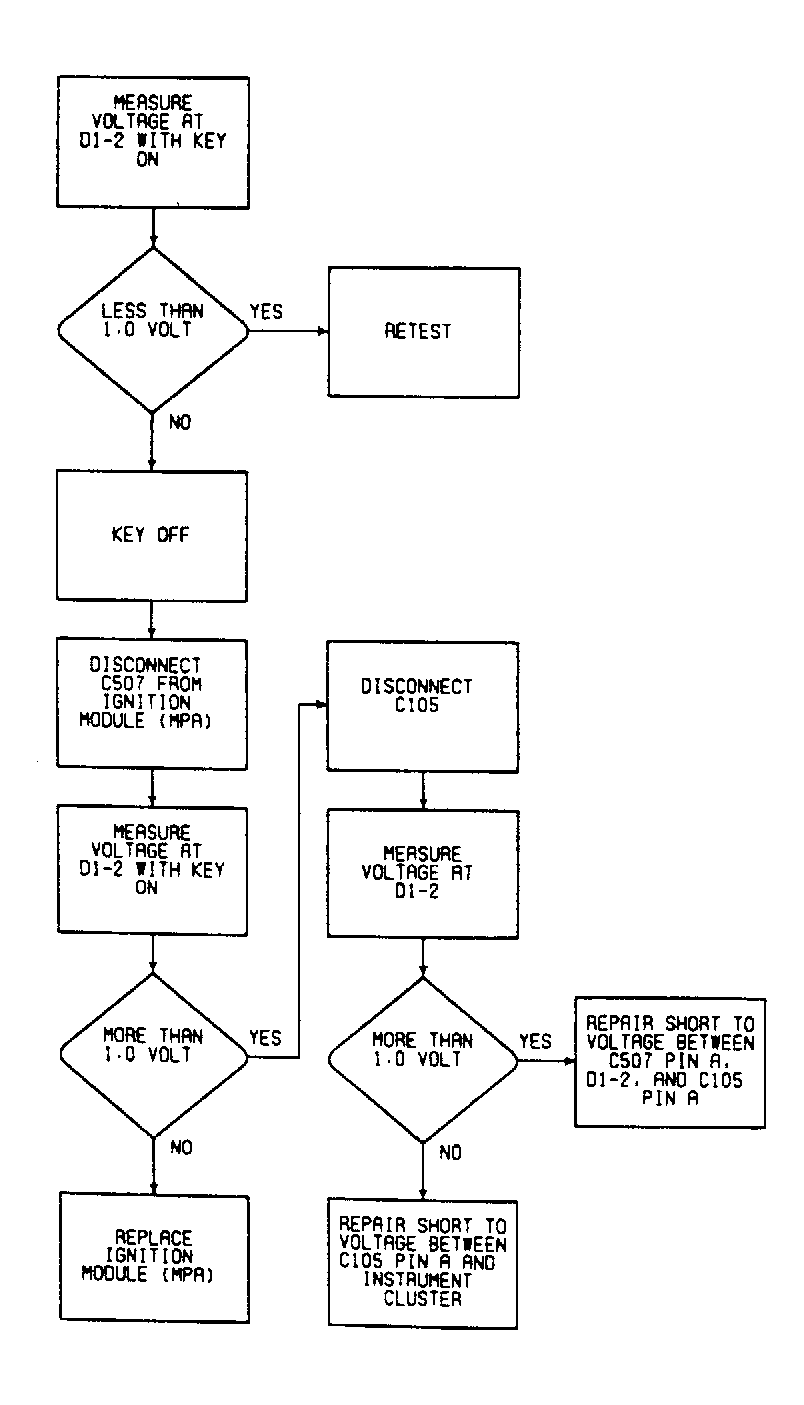

Fig 2: Fault 1013 (2 of 2) - Ignition Control Module Line High Flow Chart
G108143
