Fault 1065 - Rich O2 Sensor Reading

Fig 1: Fault 1065 (1 of 2) - Oxygen (O2) Sensor Schematic
G108232

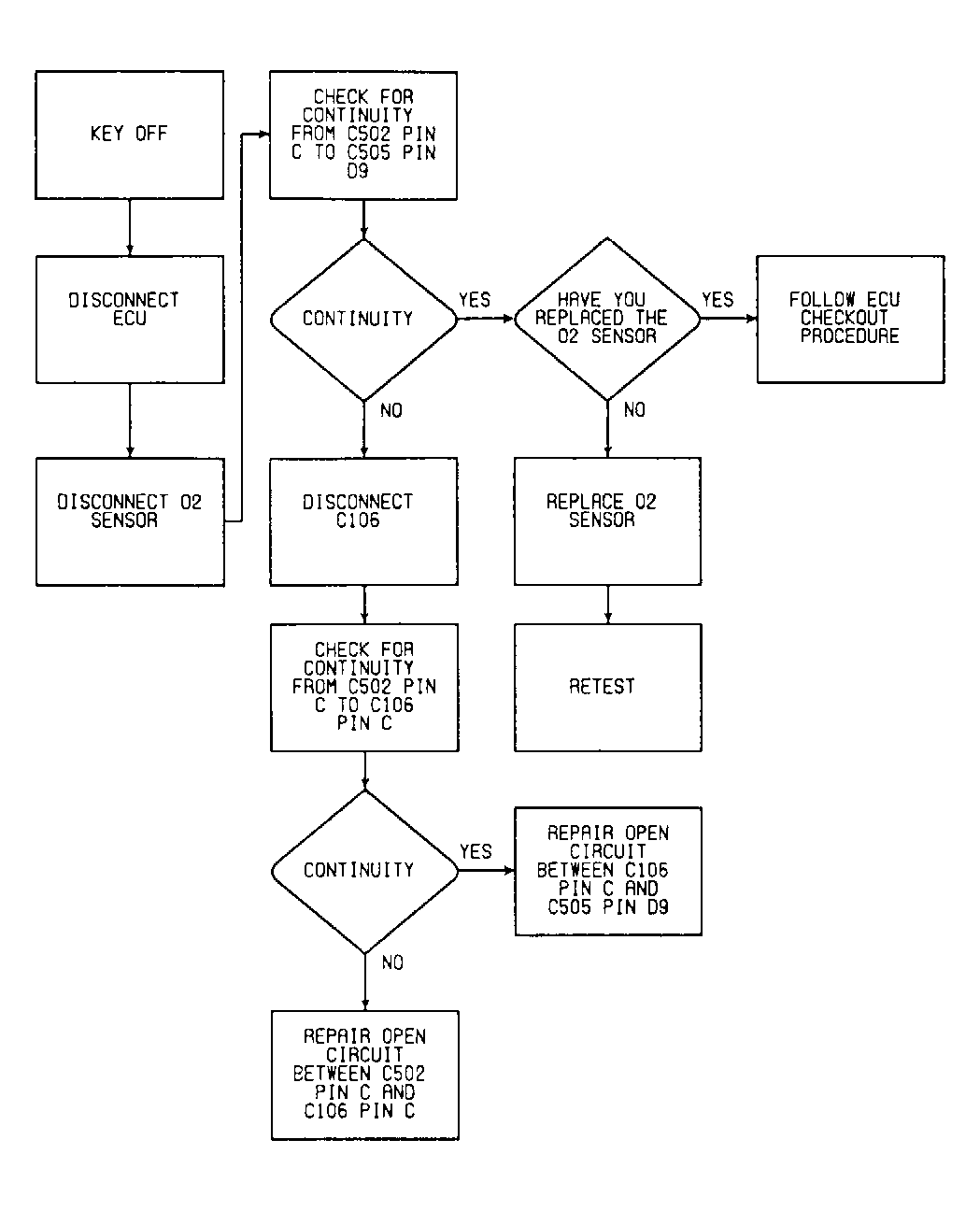

Fig 2: Fault 1065 (2 of 2) - Rich Oxygen (O2) Sensor Reading Flow Chart
G108233
