Connector Identification

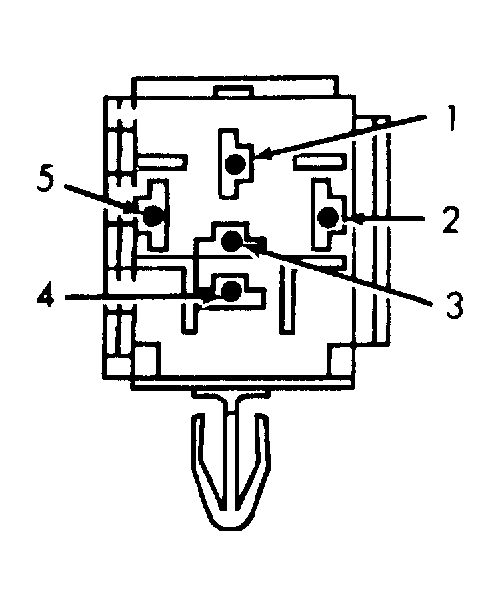

Fig 1: Connector ID - B+ Latch (C509), Fuel Pump (C508), Starter (C500) & Ignition (C501) Relay

G108275

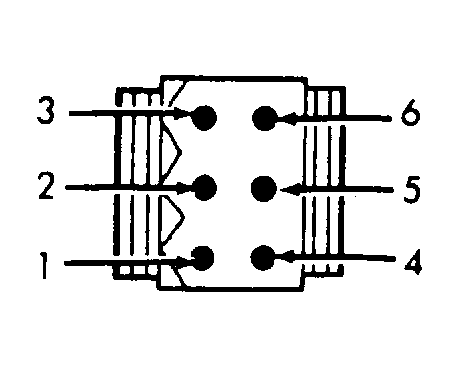

Fig 2: Connector ID - Diagnostic Connector (D1)

G108276

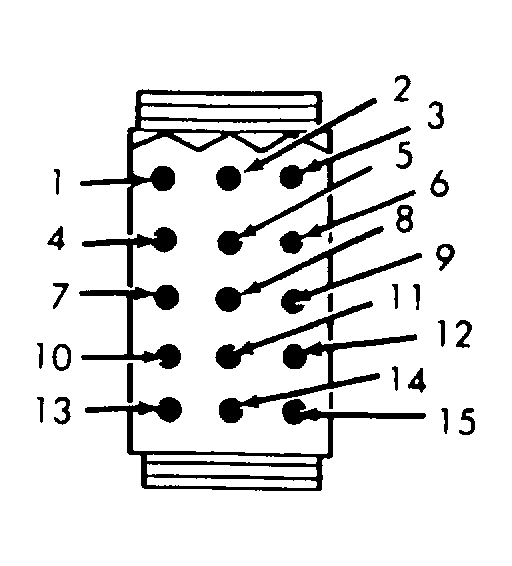

Fig 3: Connector ID - Diagnostic Connector (D2)

G108277

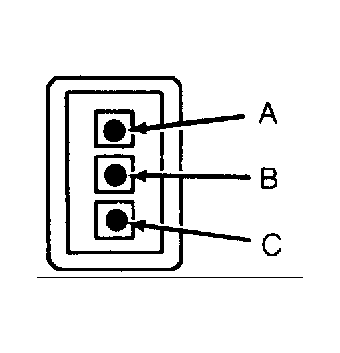

Fig 4: Connector ID - Coolant Fan Diode Assembly (C619)

G108278

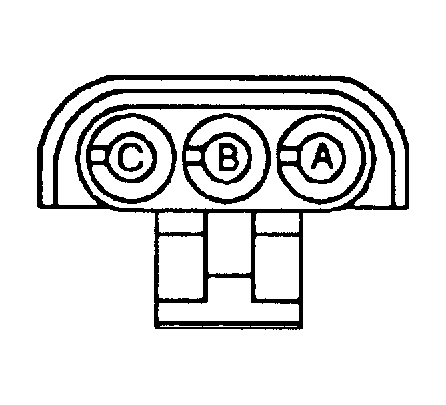

Fig 5: Connector ID - Ignition Module (C522), Oxygen Sensor (C523) & TPS (C548)

G108279

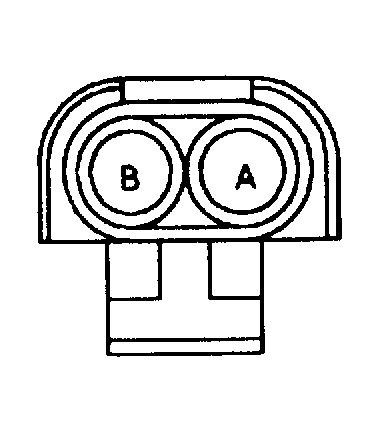

Fig 6: Connector ID - Ignition Module (C535)

G108280

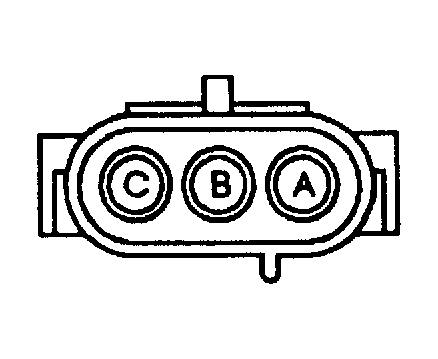

Fig 7: Connector ID - Crakshaft Position/Engine Speed Sensor (C520) & Map Sensor (C534)

G108281

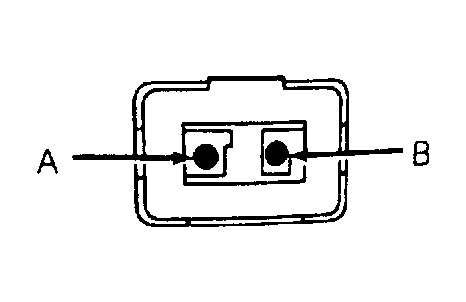

Fig 8: Connector ID - Knock Sensor (C519)

G108282

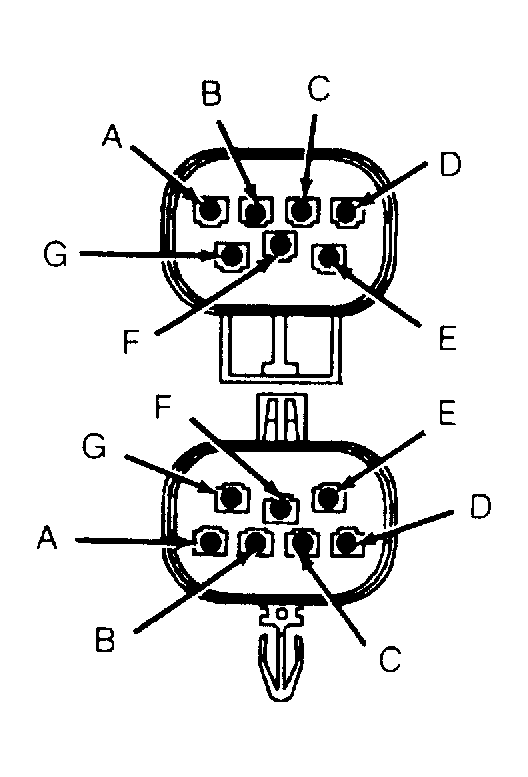

Fig 9: Connector ID - RF Corner Engine Compartment (C120) & Fuel Tank Unit (C516)

G108283

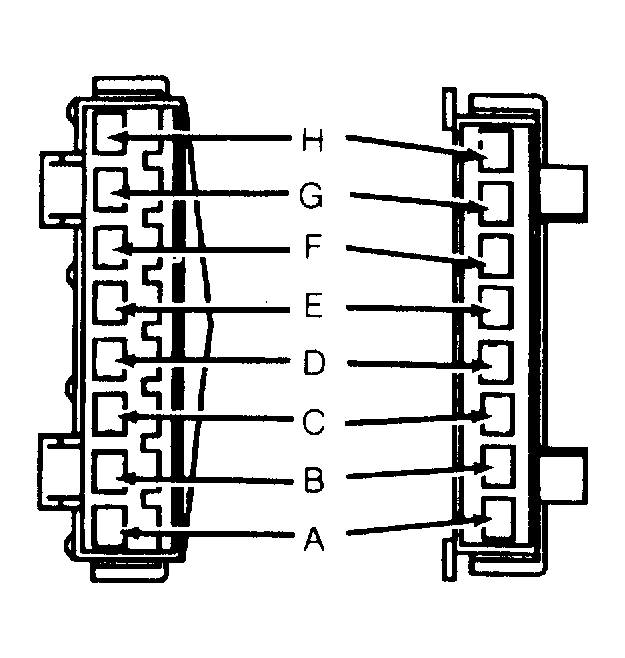

Fig 10: Connector ID - Under Right Side Instrument Panel (C114)

G108284

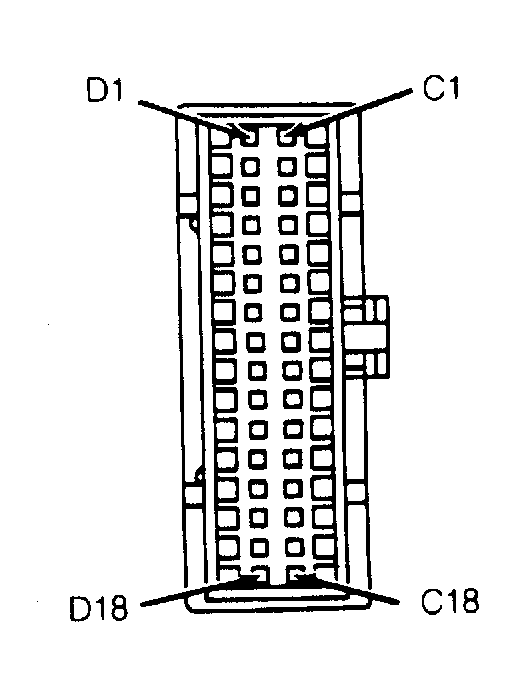

Fig 11: Connector ID - Electronic Control Unit (C518)

G108285

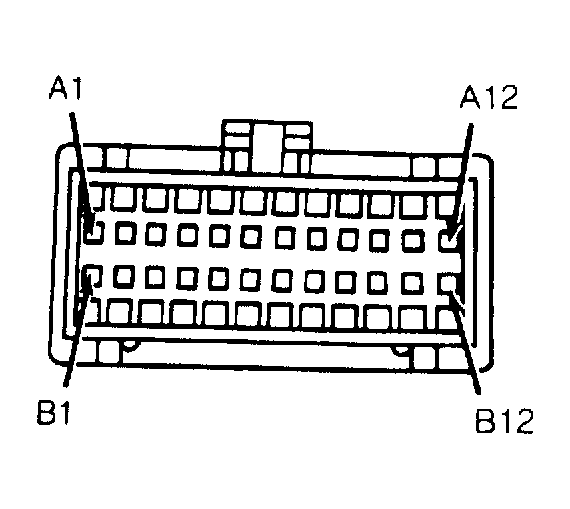

Fig 12: Connector ID - Electronic Control Unit (C517)

G108286

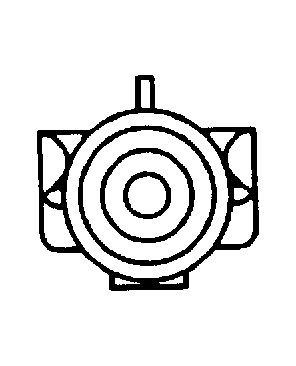

Fig 13: Connector ID - A/C Compressor Clutch (C622)

G108287

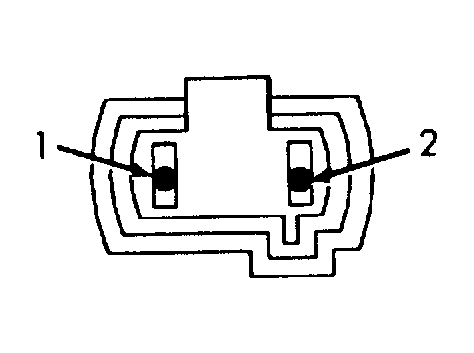

Fig 14: Connector ID - A/C Low Pressure Switch (C617)

G108288

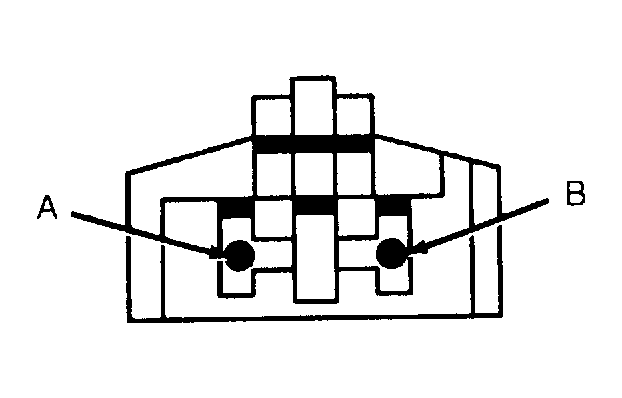

Fig 15: Connector ID - EGR Solenoid (C524)

G108289

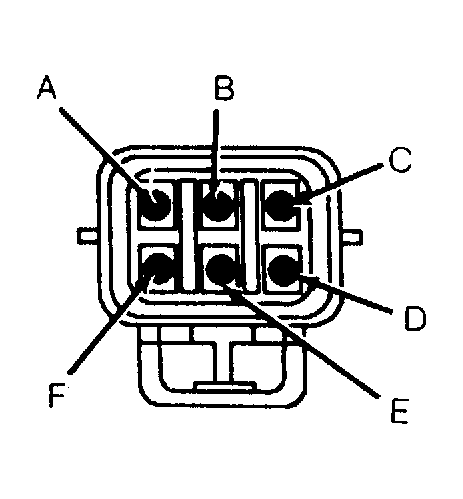

Fig 16: Connector ID - Gear Selector Switch (C545)

G108290

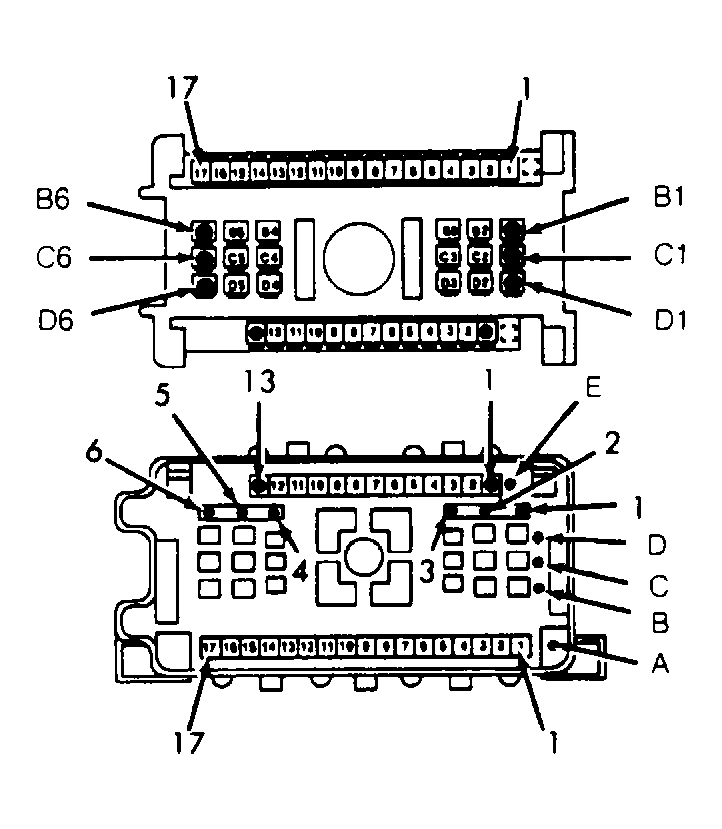

Fig 17: Connector ID - Under Instrument Panel Right Side & Under Instrument Panel Left Side (C113)

G108291

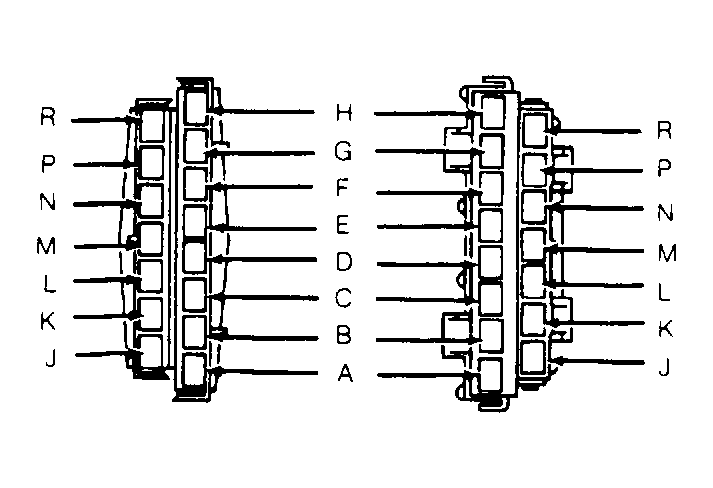

Fig 18: Connector ID - Under Instrument Panel Left Side (C109)

G108292

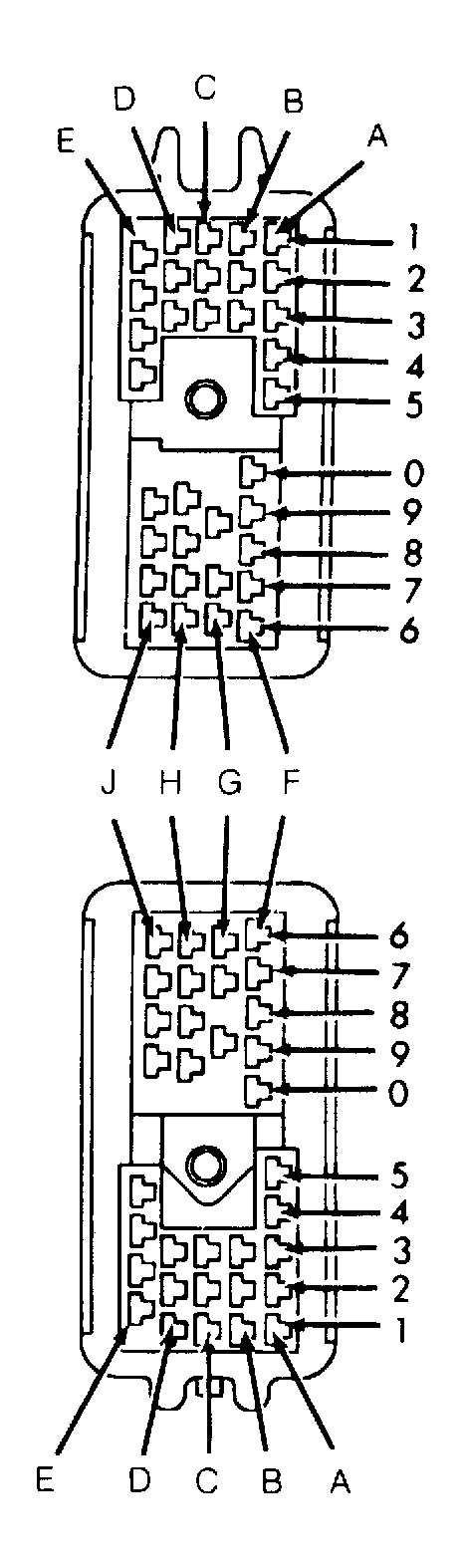

Fig 19: Connector ID - Center Rear Engine Compartment (C104)

G108293

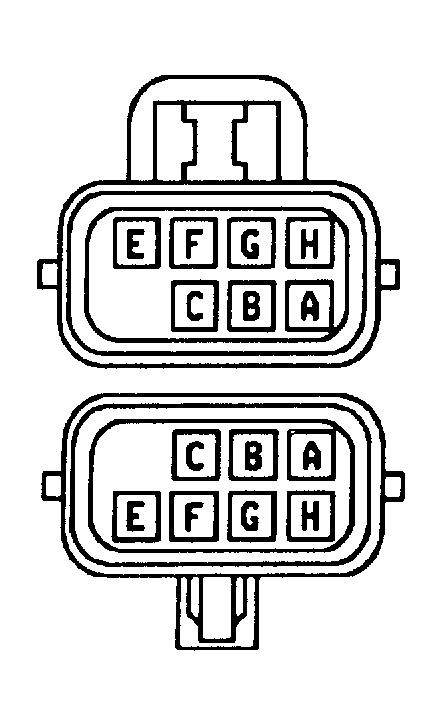

Fig 20: Connector ID - Center Rear Engine Compartment (C106)

G108294

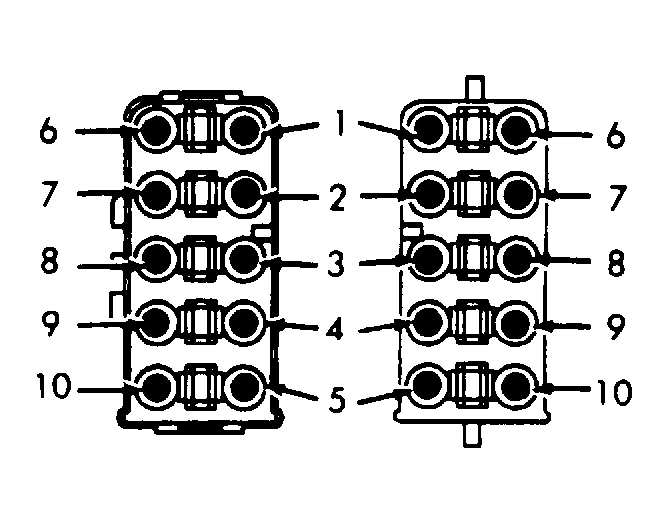

Fig 21: Connector ID - Under Instrument Panel Right Side (C108)

G108295

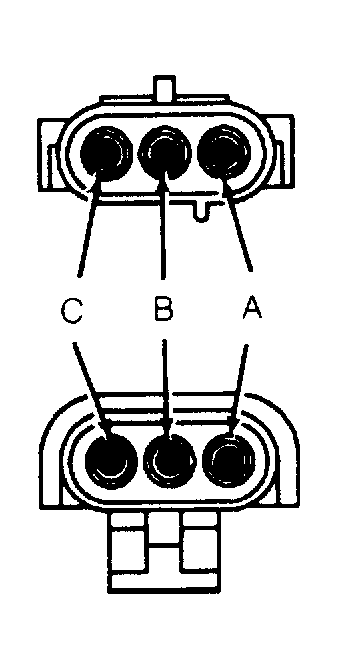

Fig 22: Connector ID - Engine Compartment Left Front Corner (C107)

G108296

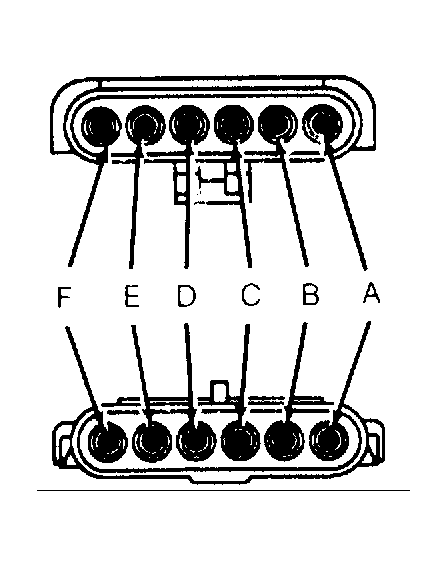

Fig 23: Connector ID - Left Front Engine Compartment (C101) & Right Front Engine Compartment (C105)

G108297

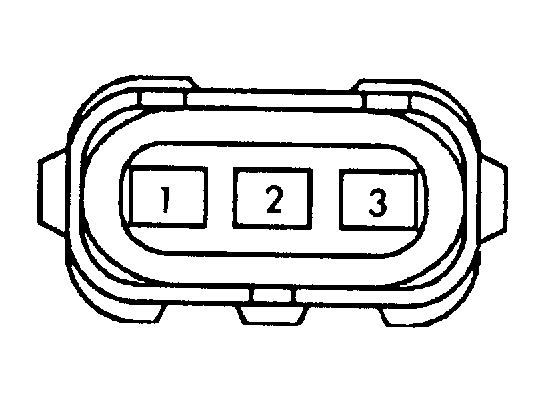

Fig 24: Connector ID - Idle Speed Regulator (C532)

G108298

Fig 25: Connector ID - Air Control Module (C567)

G108299

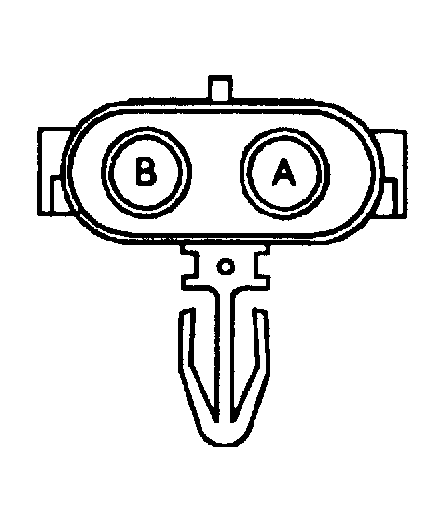

Fig 26: Connector ID - Coolant Temperature Sensor (C536)

G108300
