Fault 1022 - Start Line Low

Fig 1: Fault 1022 - Start Line Low Schematic
G108380Courtesy of CHRYSLER MOTORS

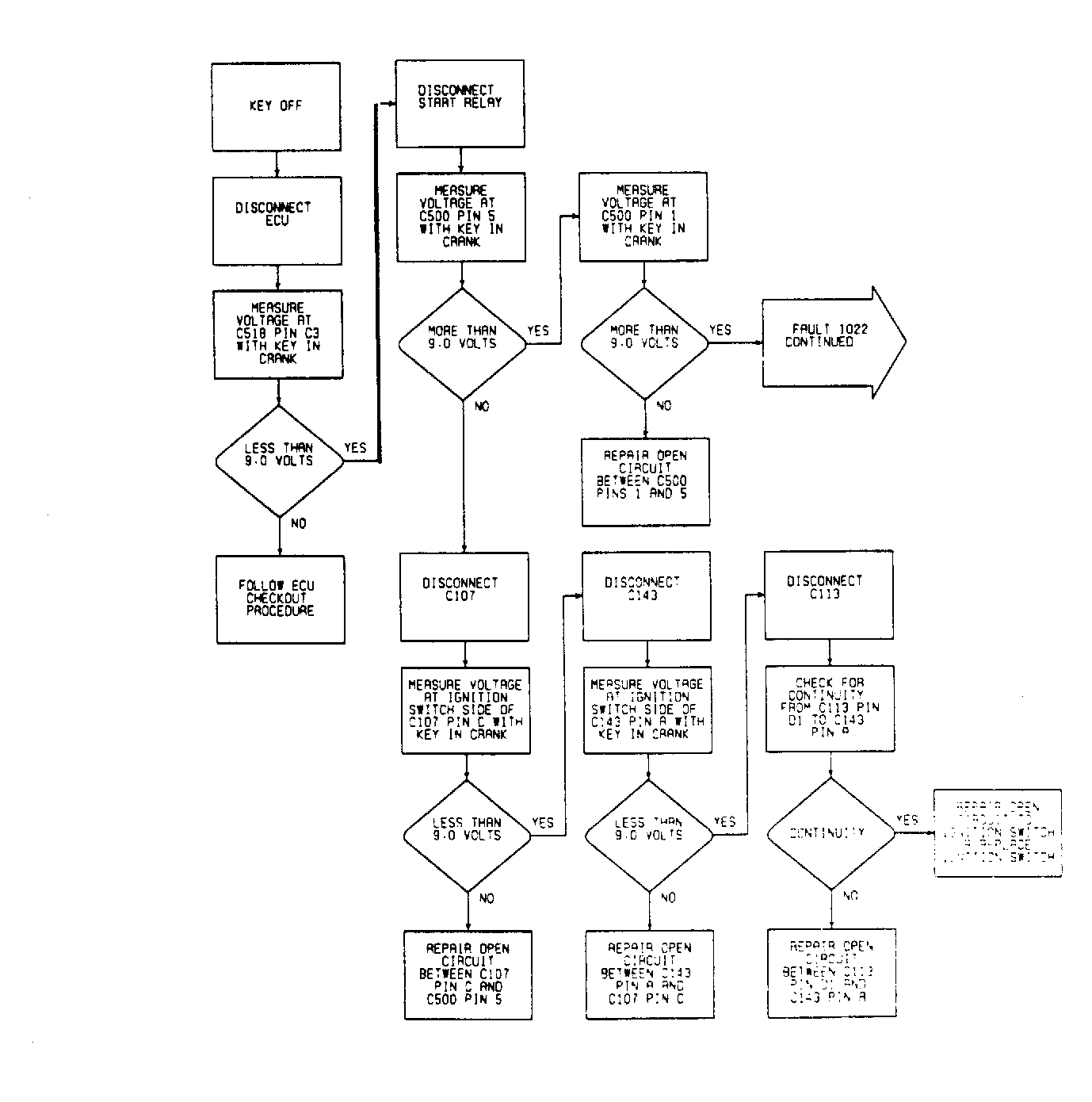

Fig 2: Fault 1022 (1 of 2) - Flow Chart
G108381Courtesy of CHRYSLER MOTORS

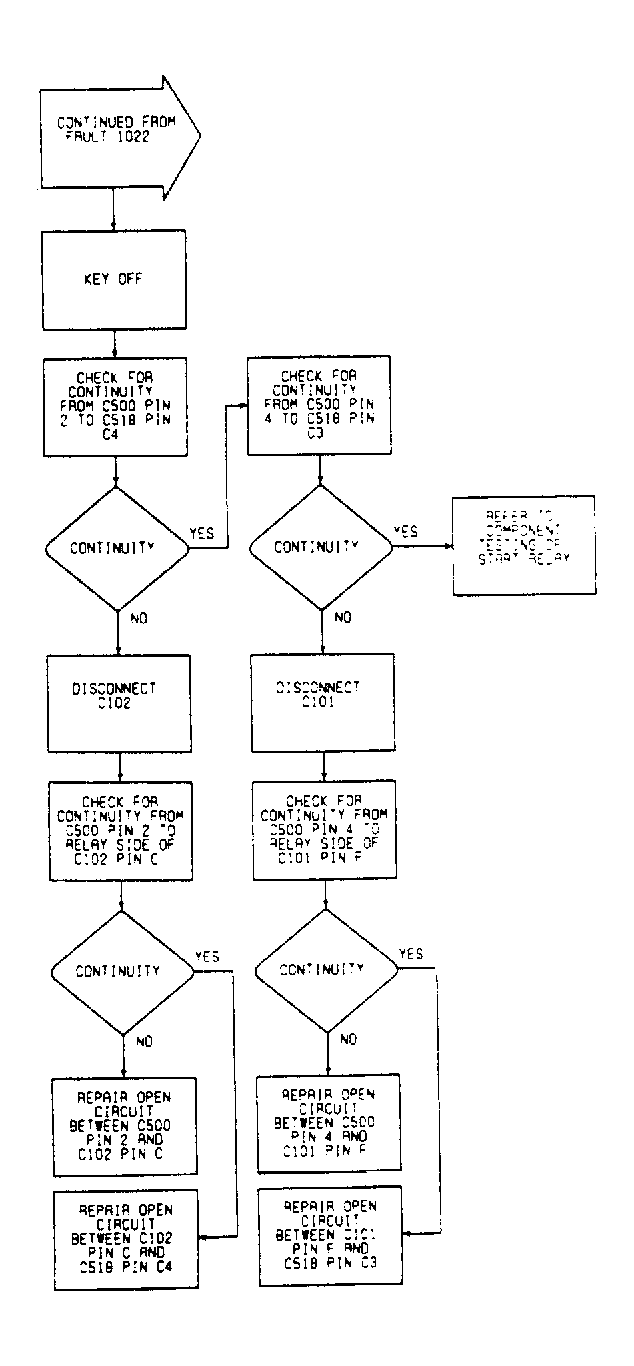

Fig 3: Fault 1022 (2 of 2) - Flow Chart
G108382Courtesy of CHRYSLER MOTORS
