Fault 1052 - Map Sensor Out Of Limits

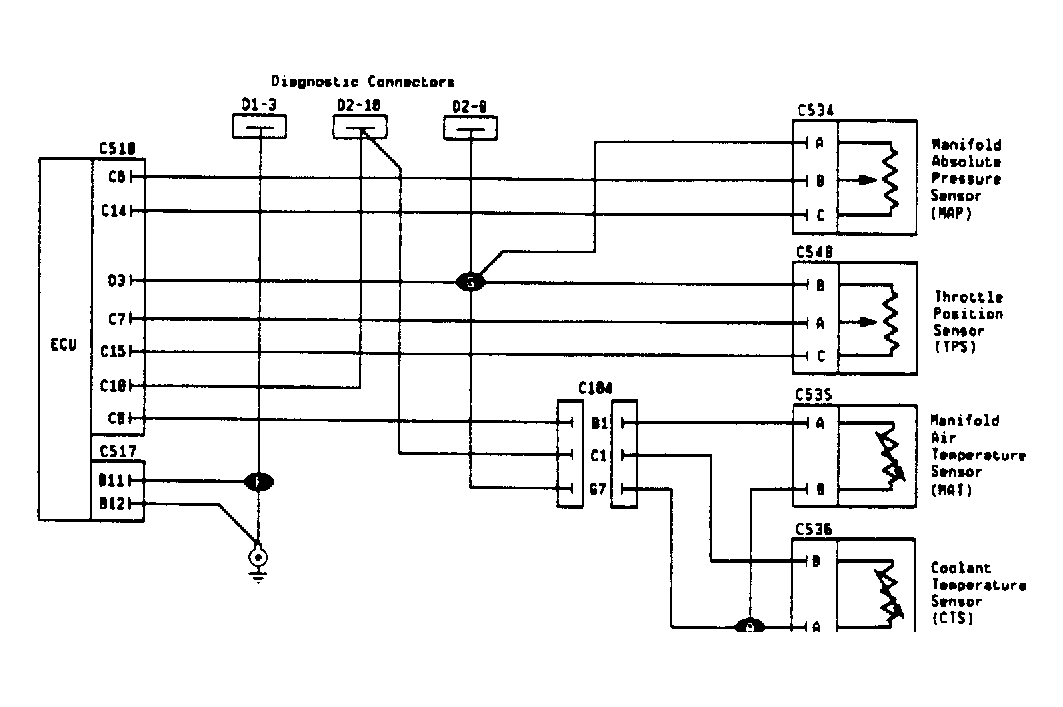

Fig 1: Fault 1052 - MAP Sensor Out of Limits Schematic
G108422Courtesy of CHRYSLER MOTORS

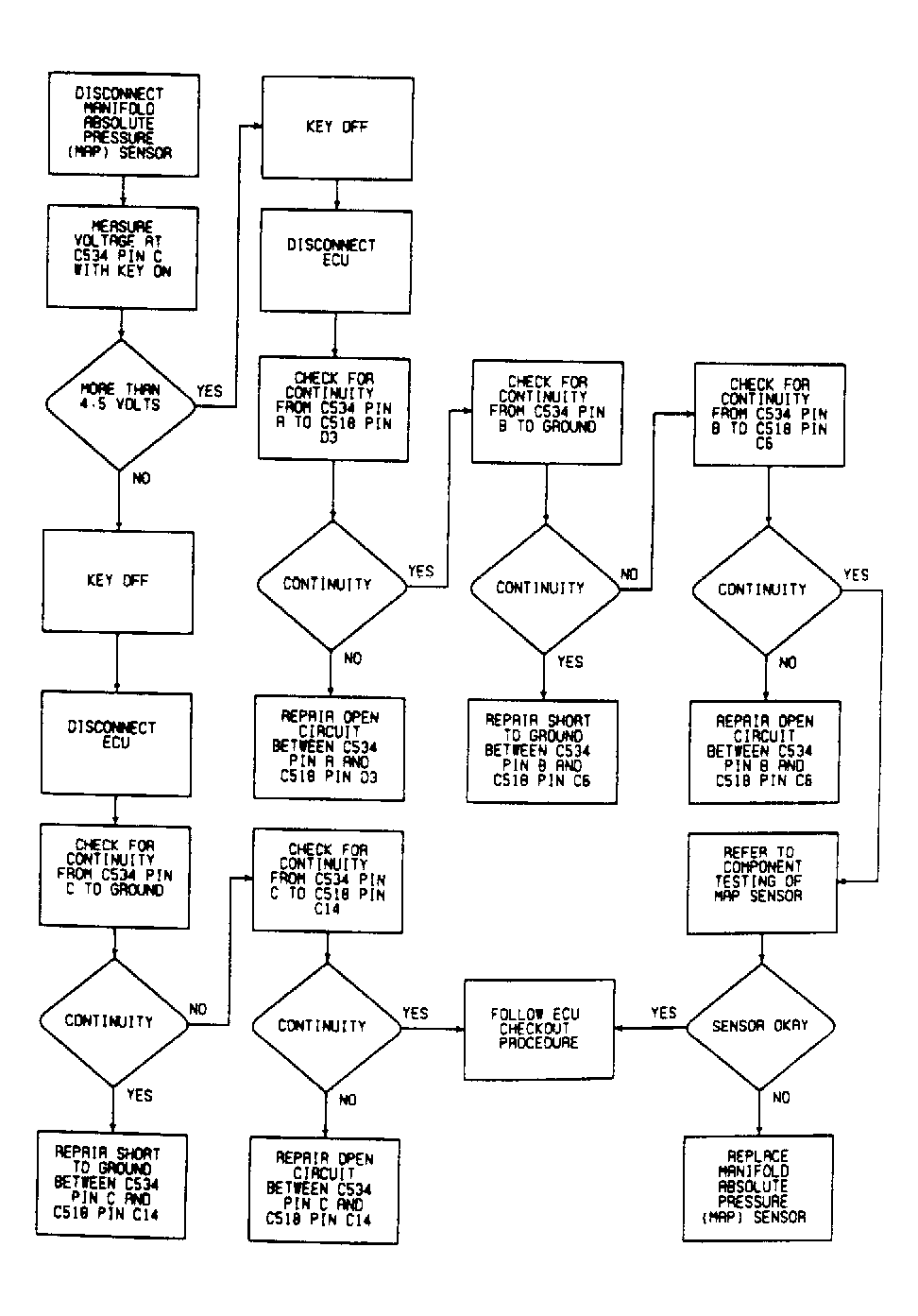

Fig 2: Fault 1052 - Flow Chart
G108423Courtesy of CHRYSLER MOTORS
