Fault 1056 - Inactive Coolant Temperature Sensor

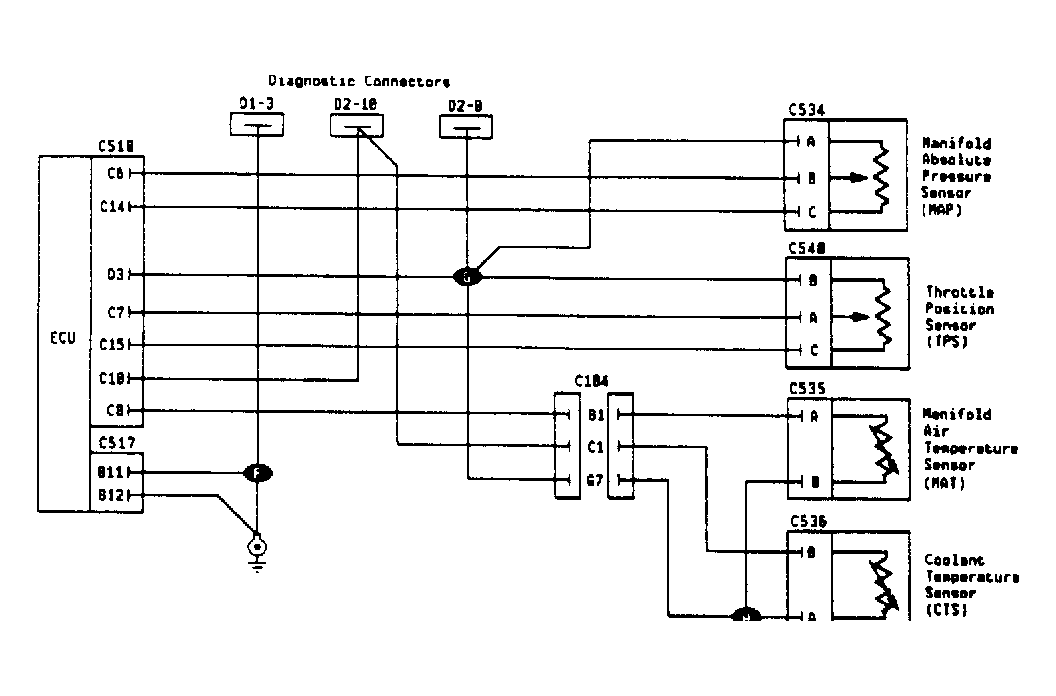

Fig 1: Fault 1056 - Inactive Coolant Temp. Sensor Schematic
G108432Courtesy of CHRYSLER MOTORS
