Fault 1060 - A/C Request Line High

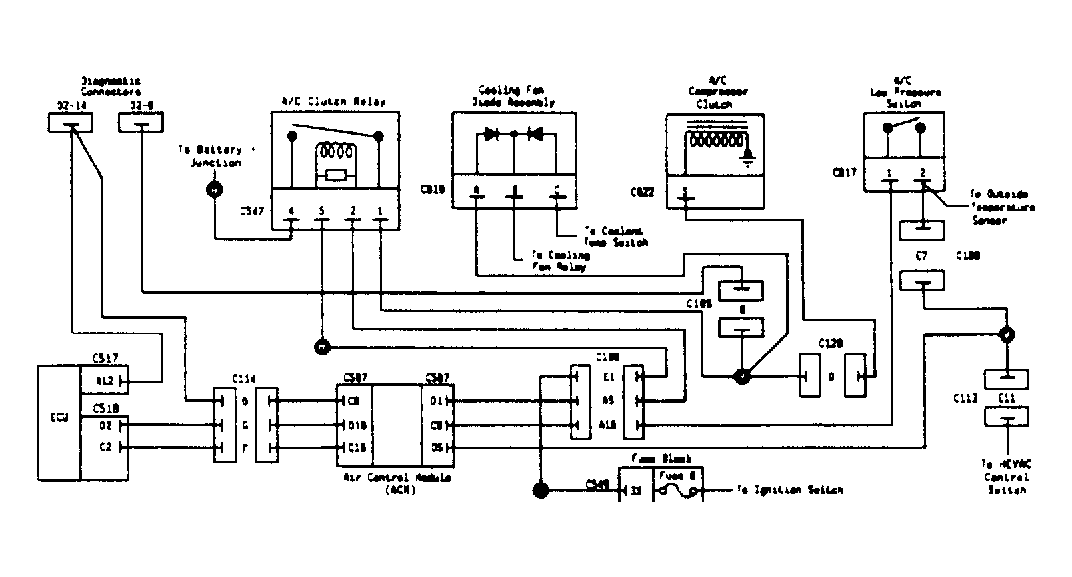

Fig 1: Fault 1060 - A/C Request Line High Schematic
G108440Courtesy of CHRYSLER MOTORS

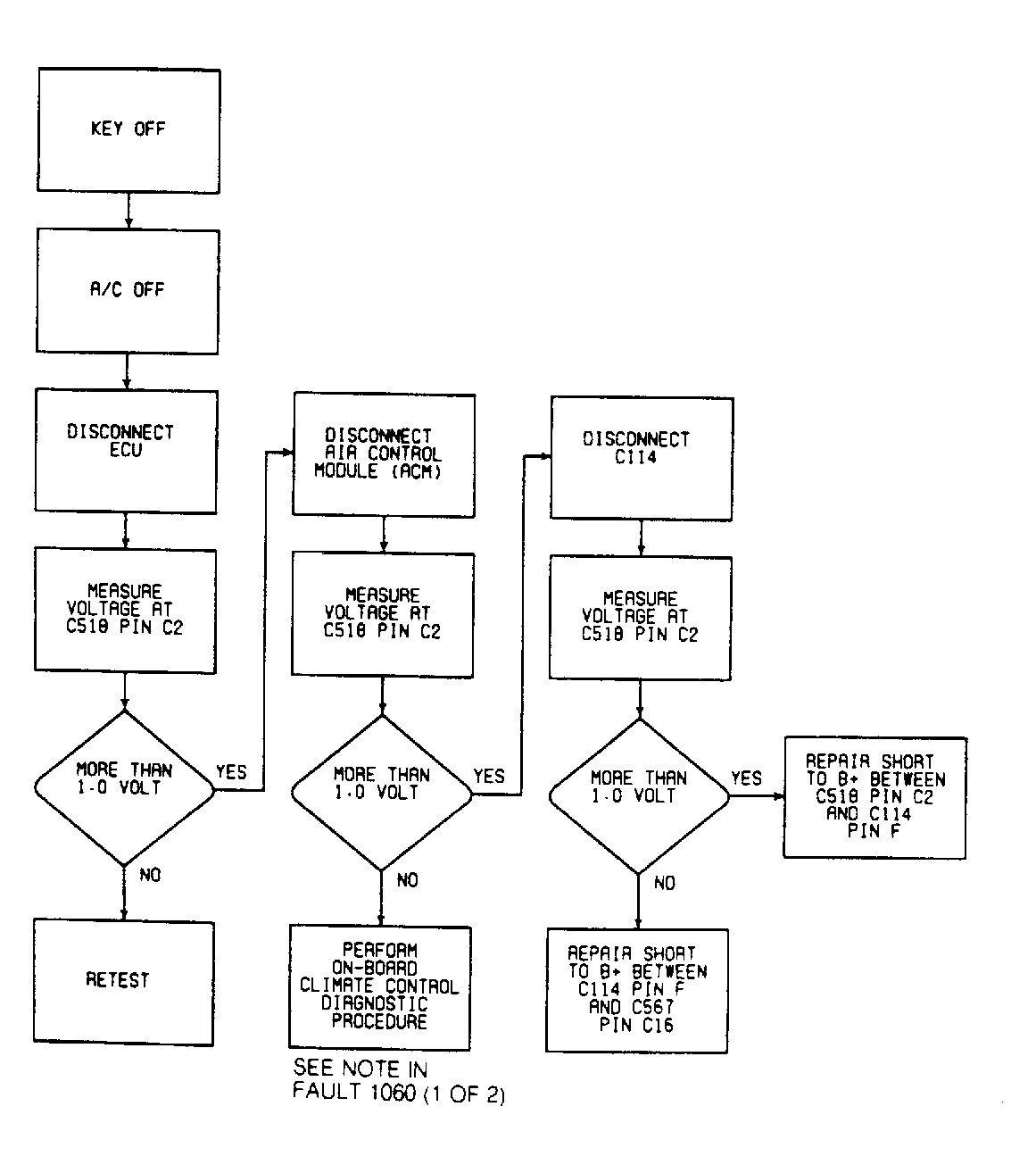

Fig 2: Fault 1060 - Flow Chart
G108441Courtesy of CHRYSLER MOTORS
