Fault 1062 - A/C Select Line High

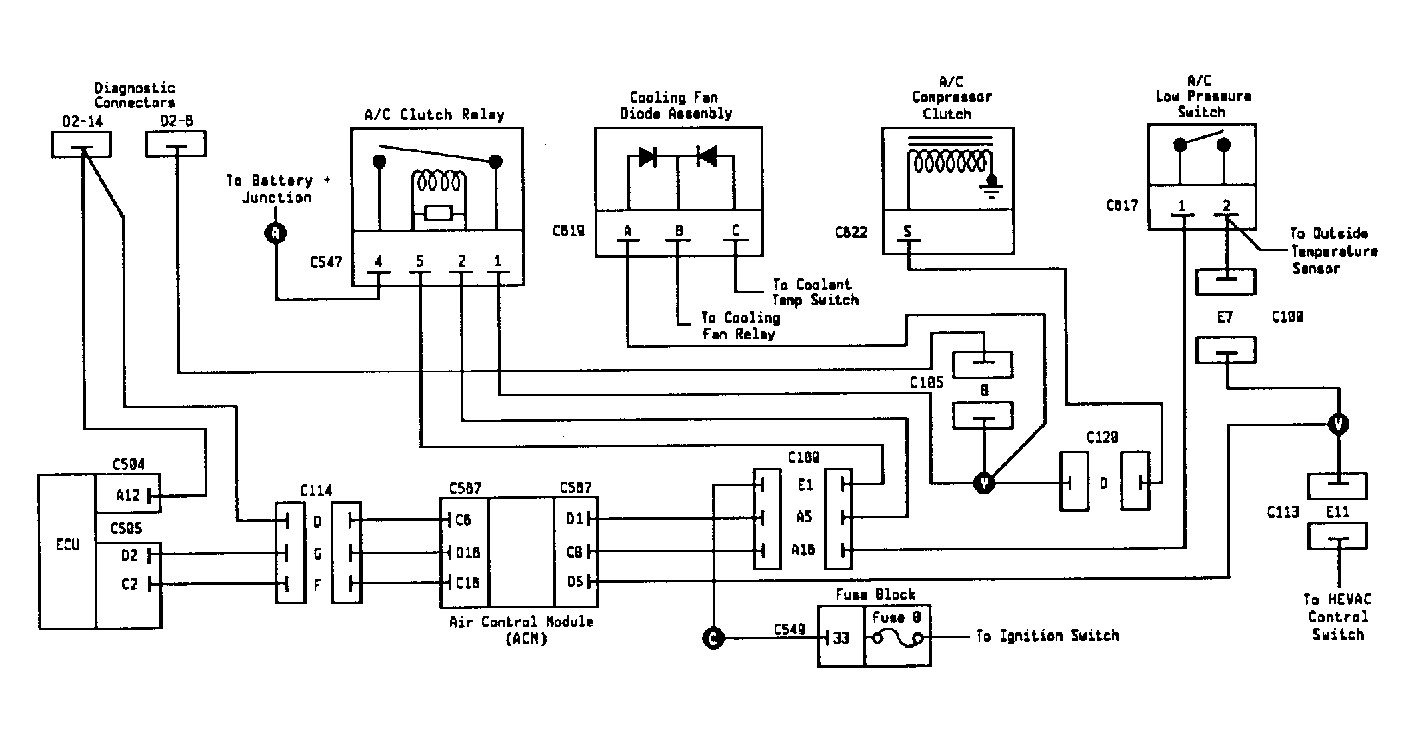

Fig 1: Fault 1062 - A/C Select Line High Schematic
G108444Courtesy of CHRYSLER MOTORS

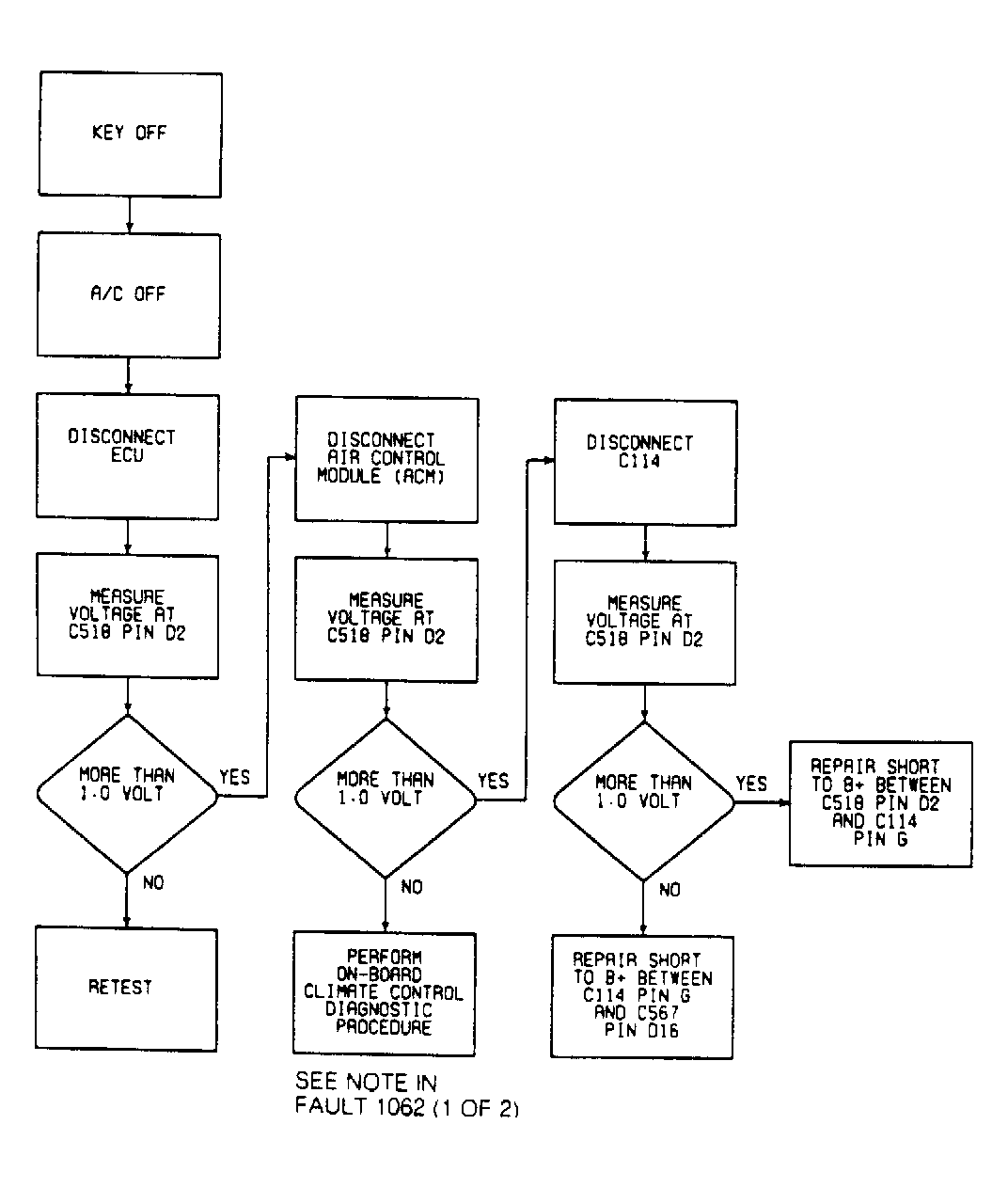

Fig 2: Fault 1062 - Flow Chart
G108445Courtesy of CHRYSLER MOTORS
