Fault 1066 - O2 Sensor Reads Lean

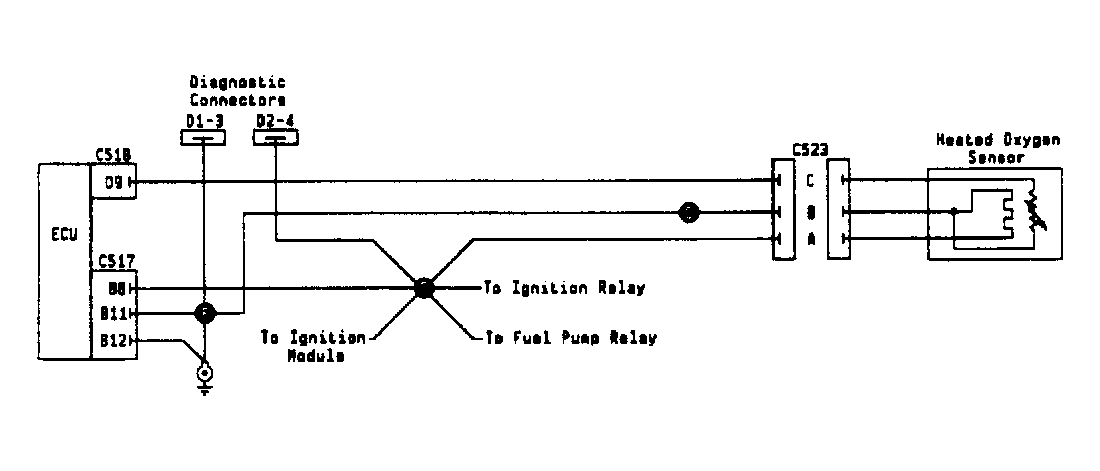

Fig 1: Fault 1066 - O2 Sensor Reads Lean Schematic

G108453

Courtesy of CHRYSLER MOTORS

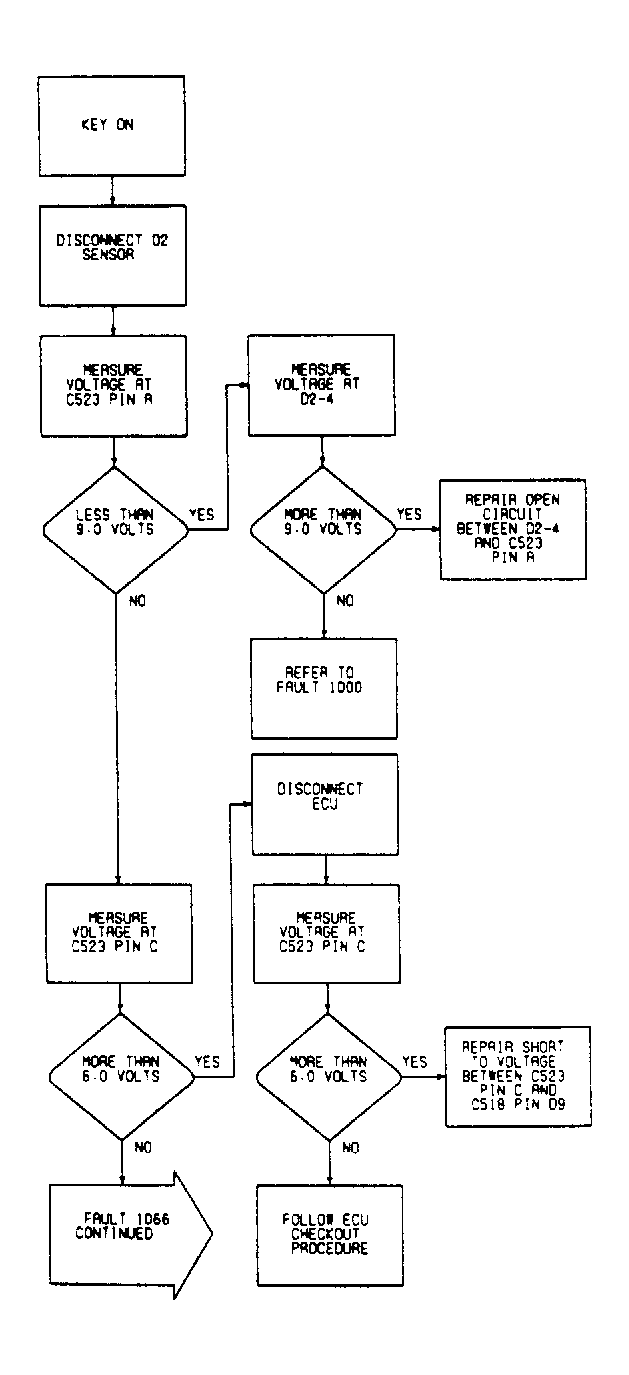

Fig 2: Fault 1066 (1 of 2) - Flow Chart

G108454

Courtesy of CHRYSLER MOTORS

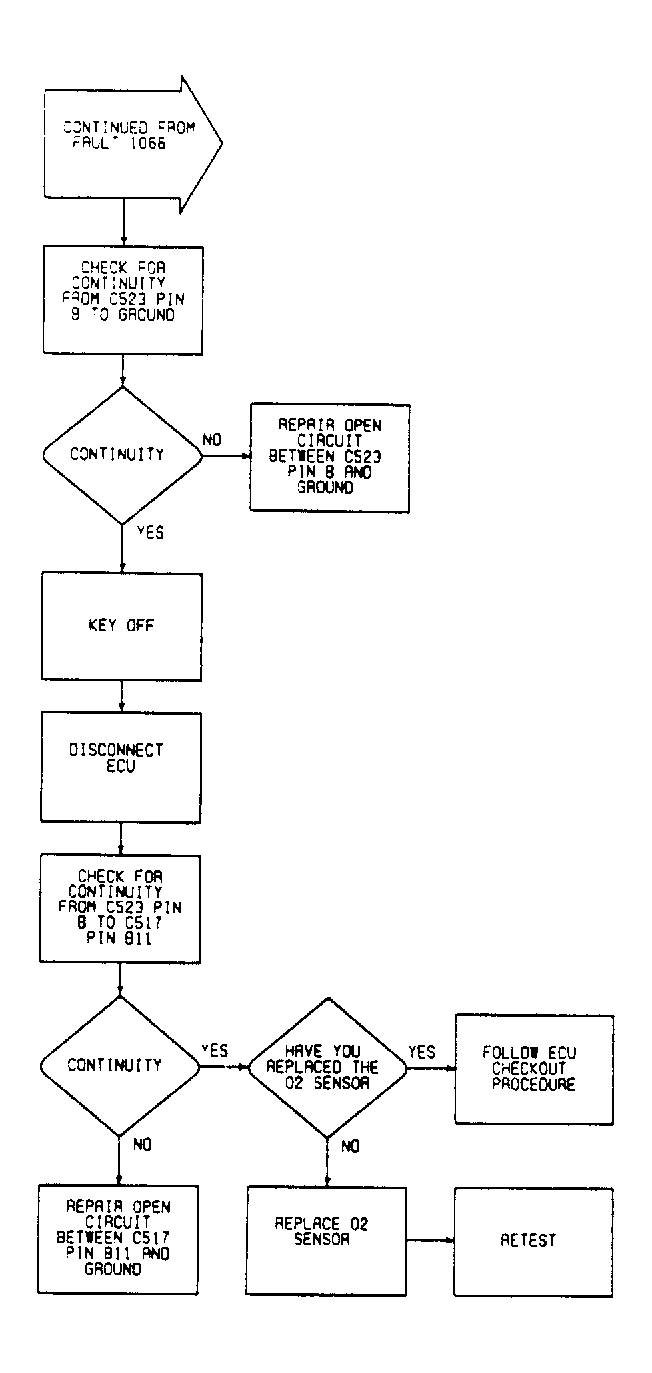

Fig 3: Fault 1066 (2 of 2) - Flow Chart

G108455

Courtesy of CHRYSLER MOTORS
