Intake Air Temperature Sensor

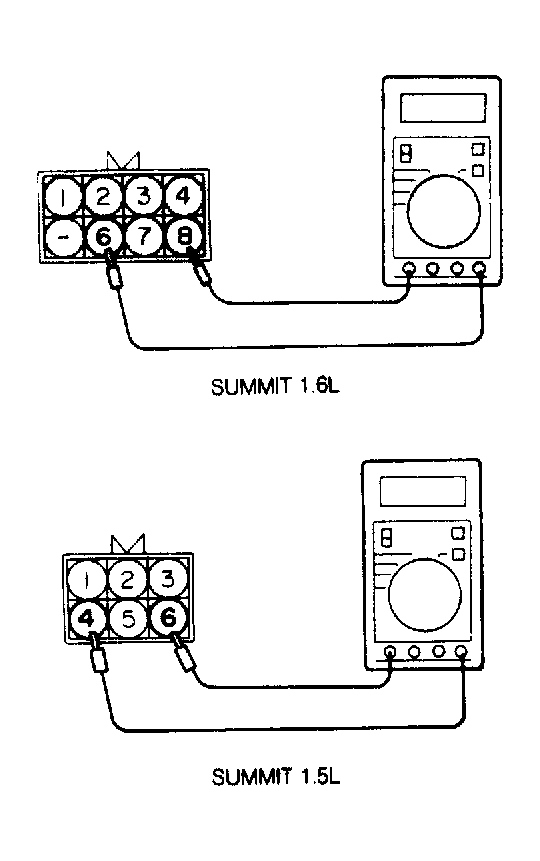

Disconnect airflow sensor connector. Check intake air temperature sensor by measuring resistance between terminals No. 6 and 8 or 4 and 6. See Fig 1 . For specifications, see INTAKE AIR TEMPERATURE SENSOR RESISTANCE table. Replace airflow sensor assembly if not to specification.
INTAKE AIR TEMPERATURE SENSOR RESISTANCE
| Temperature °F (°C) | Ohms |
|---|---|
| 32 (0) | 6000 |
| 68 (20) | 2700 |
| 176 (80) | 400 |
