Test 10F: LR Wheel Speed Sensor Fault

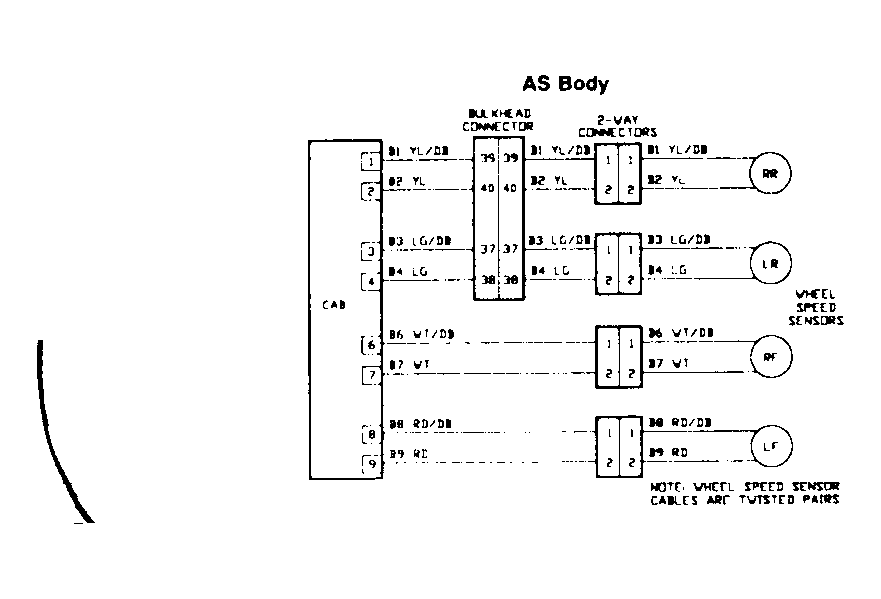

Fig 1: Test 10F - LR Wheel Speed Sensor Fault, Schematic
G91I10809

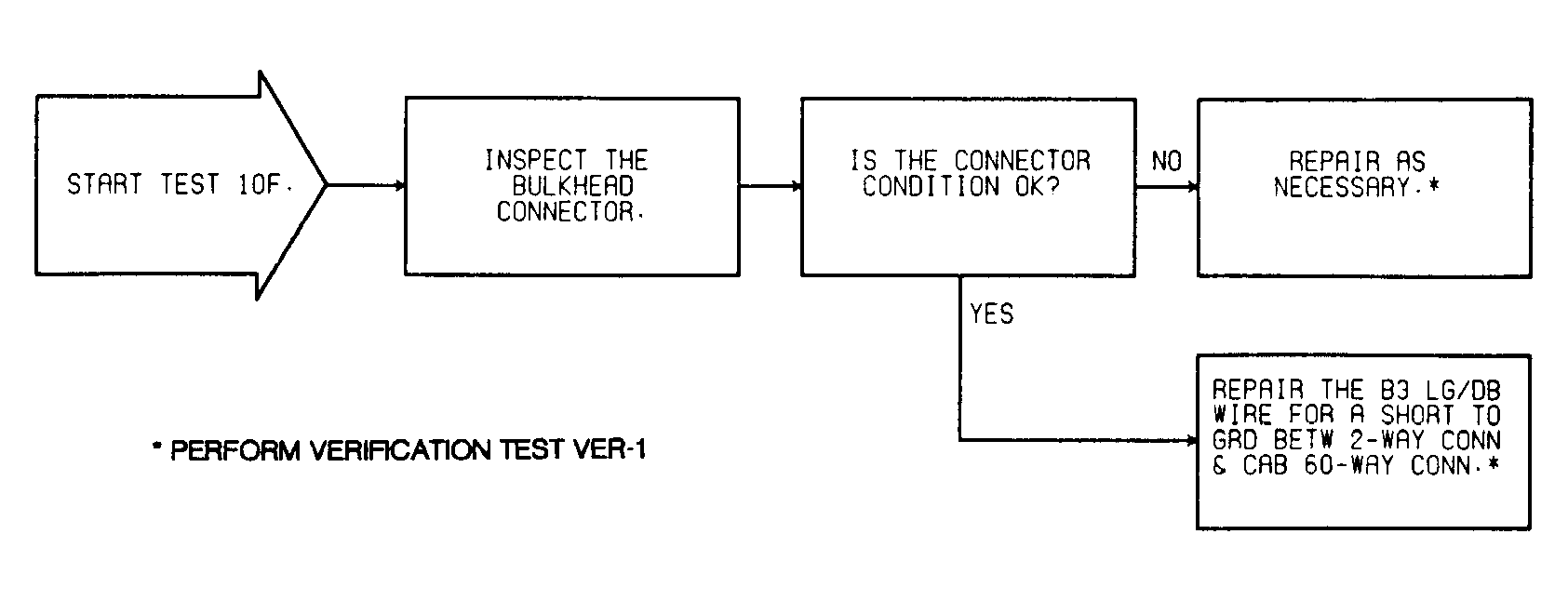

Fig 2: Test 10F - LR Wheel Speed Sensor Fault, Flow Chart
G91C10829
