Test 11A: RF Wheel Speed Sensor Fault

Fig 1: Test 11A - RF Wheel Speed Sensor Fault, Schematic

Fig 2: Test 11A - RF Wheel Speed Sensor Fault, Flow Chart

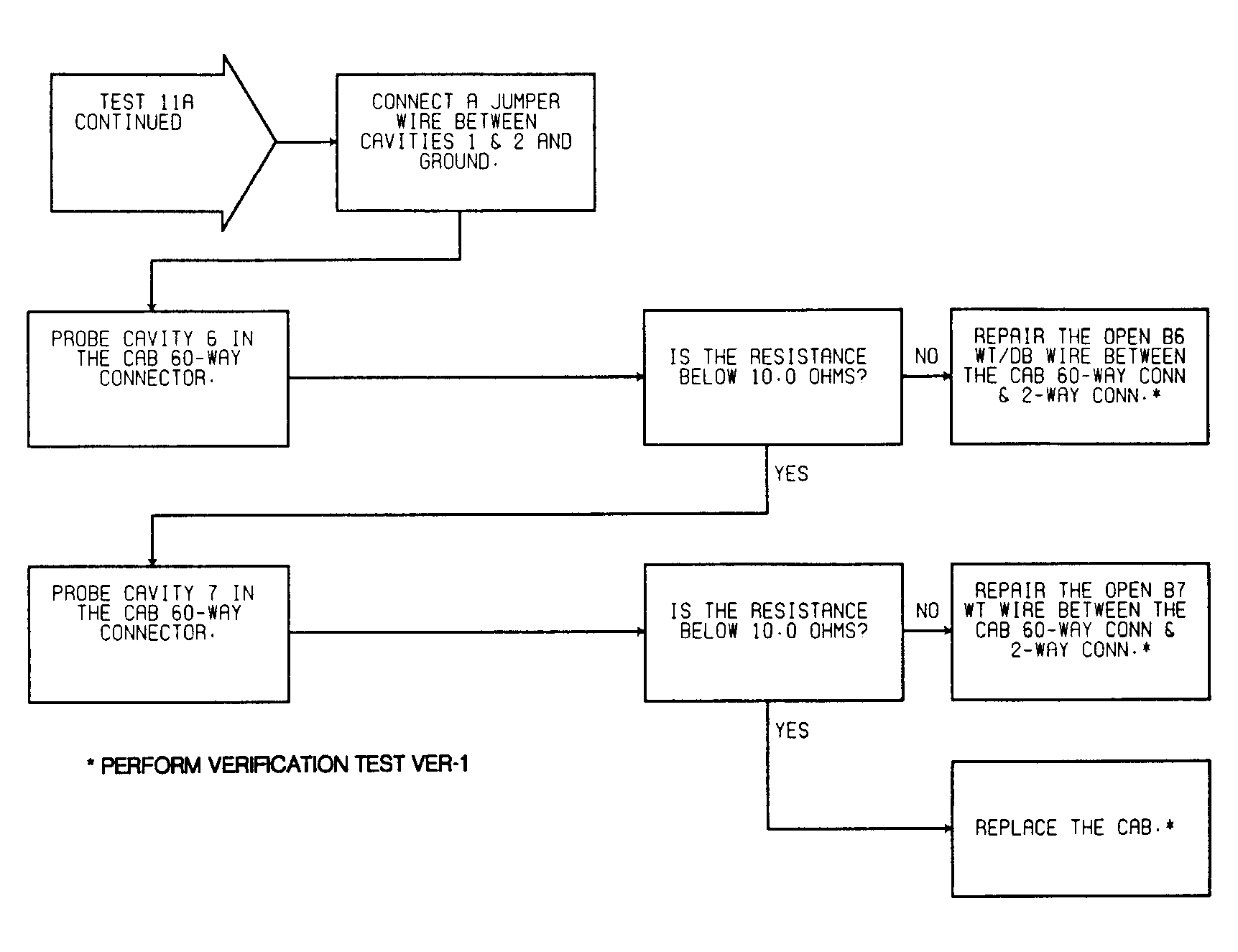

Fig 3: Test 11A - RF Wheel Speed Sensor Fault, Flow Chart
