Test 12A: LF Wheel Speed Sensor Fault

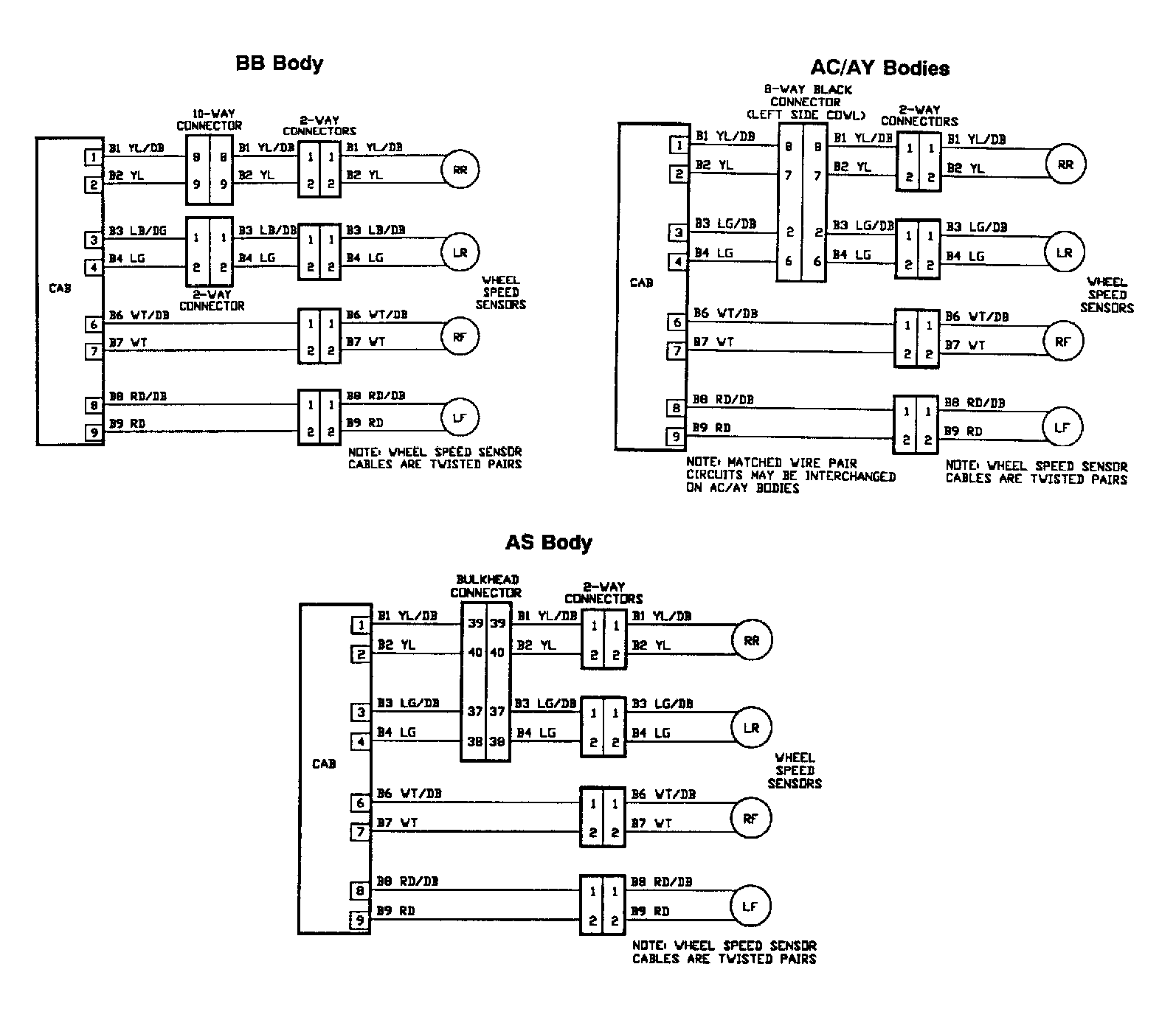

Fig 1: Test 12A - LF Wheel Speed Sensor Fault, Schematic

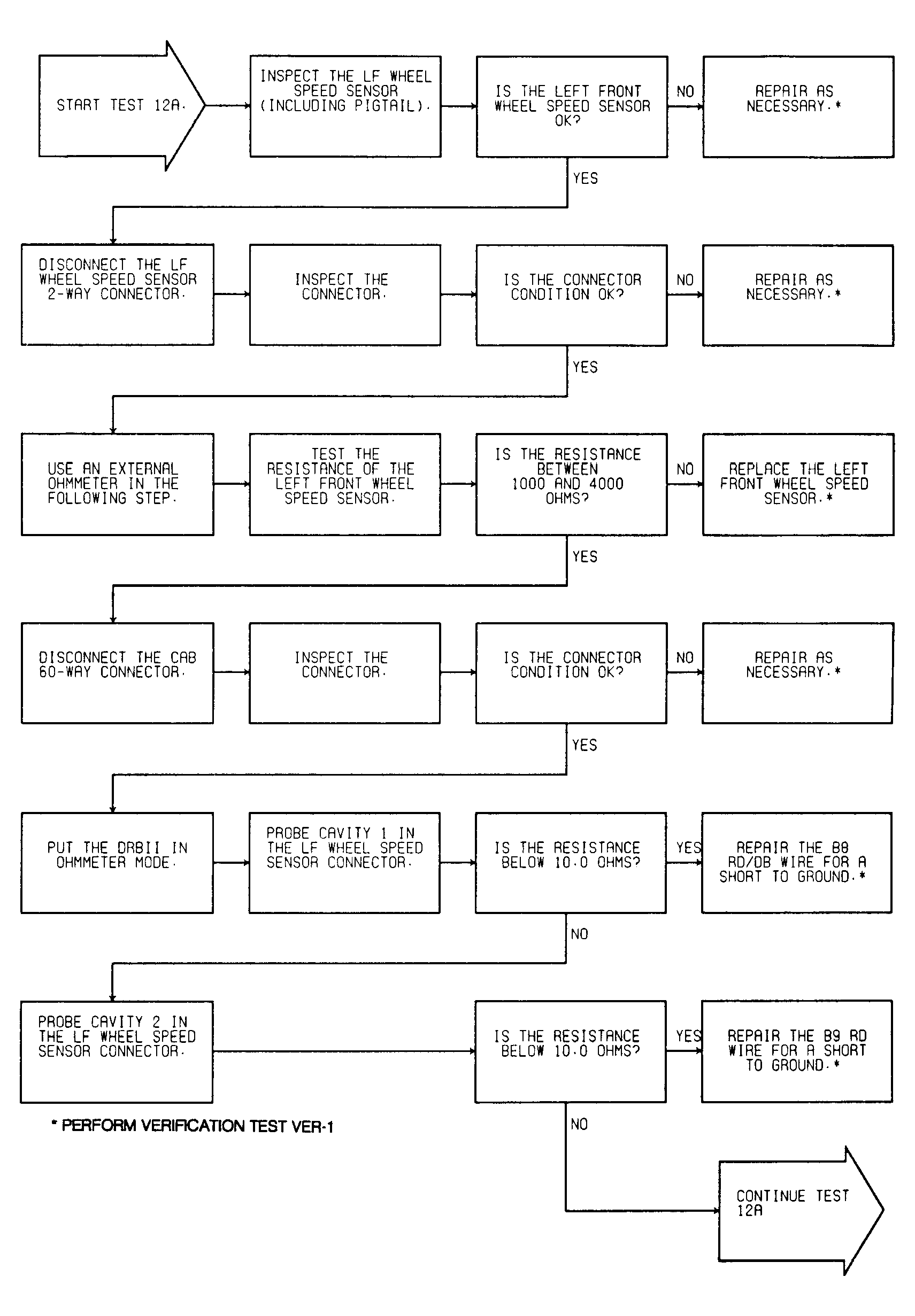

Fig 2: Test 12A - LF Wheel Speed Sensor Fault, Flow Chart
Fig 3: Test 12A - LF Wheel Speed Sensor Fault, Chart Flow
