Test 14A: LR Wheel Speed Sensor Fault

Fig 1: Test 14A - LR Wheel Speed Sensor Fault, Schematic
G91D10804

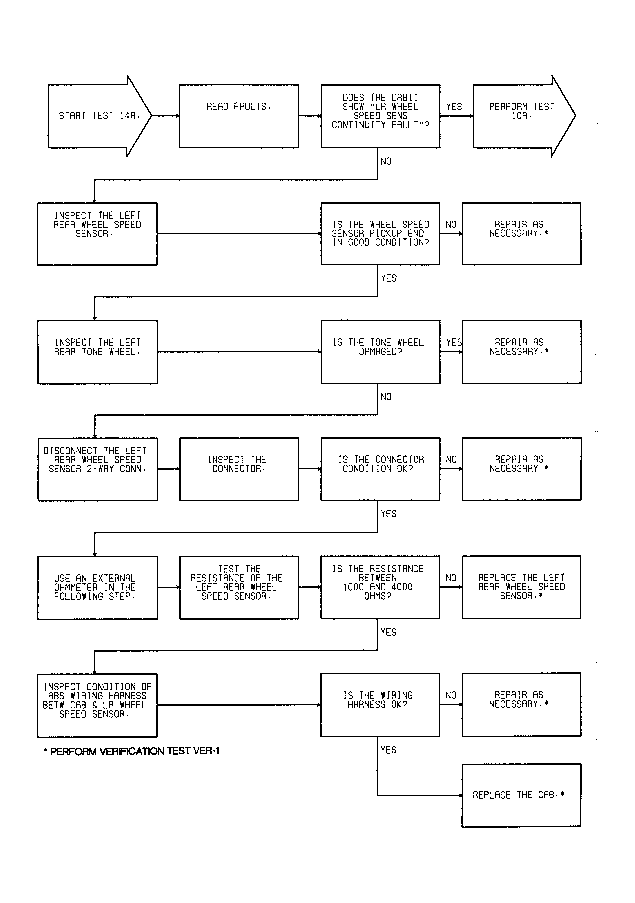

Fig 2: Test 14A - LR Wheel Speed Sensor Fault, Flow Chart
G91J10842
