Test 15A: RF Wheel Speed Sensor Fault

Fig 1: Test 15A - RF Wheel Speed Sensor Fault, Schematic
G91D10804

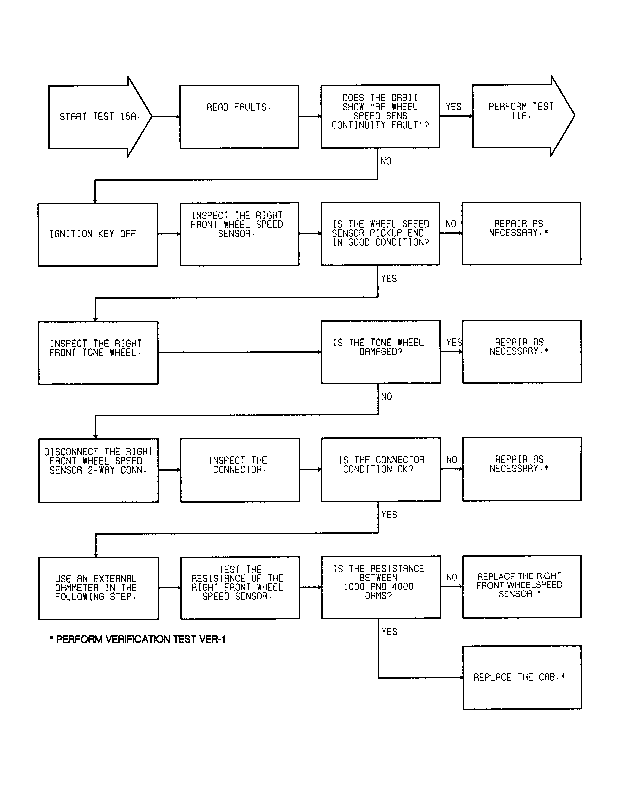

Fig 2: Test 15A - RF Wheel Speed Sensor Fault, Flow Chart
G91A10843
