Test 18B: Anti-Lock Light Fault

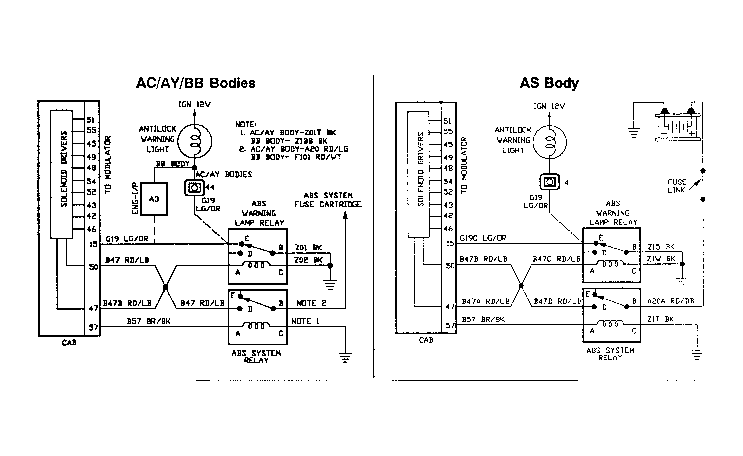

Fig 1: Test 18B - ANTI-LOCK Light Fault, Schematic
G91D09182

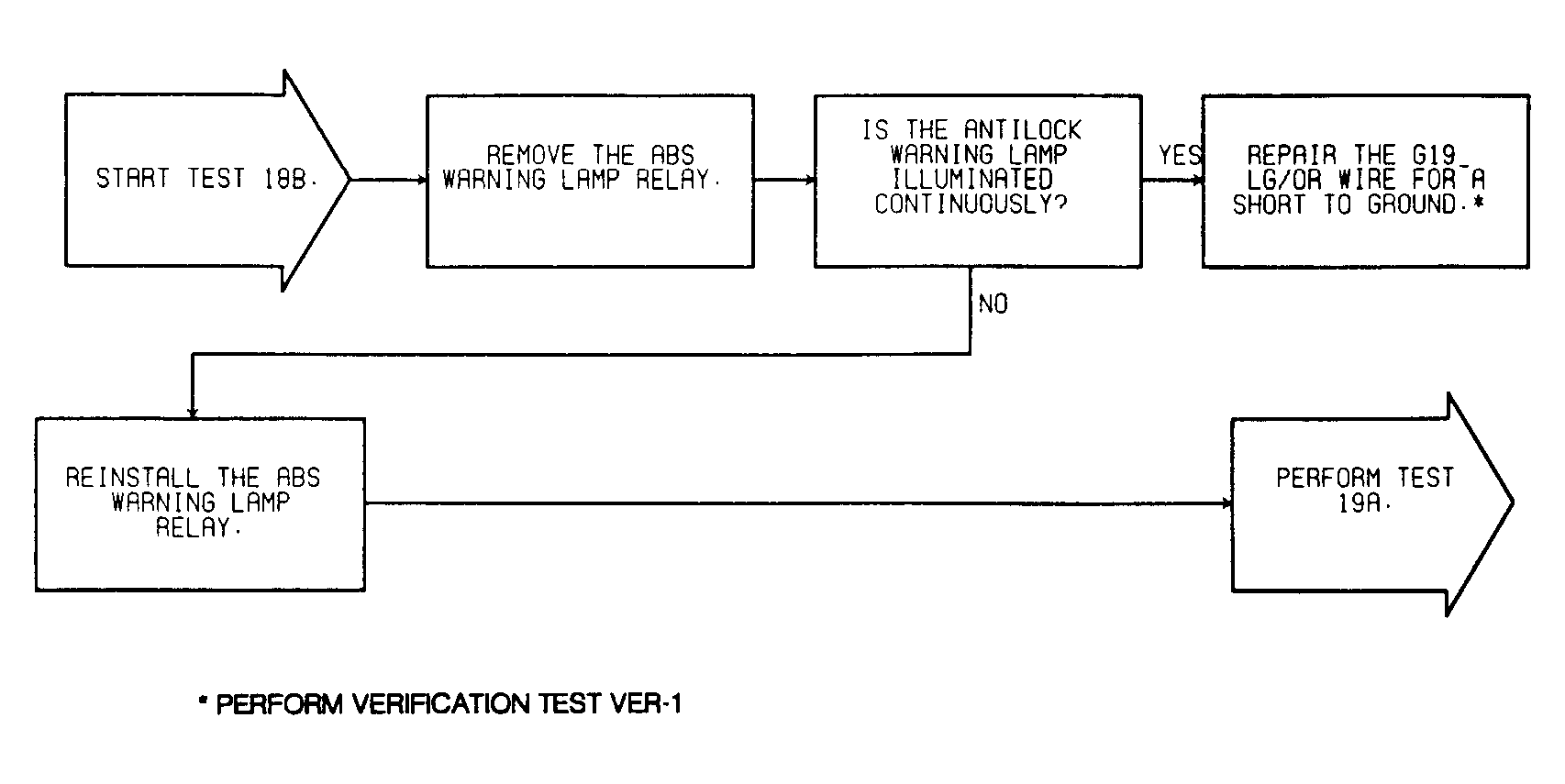

Fig 2: Test 18B - ANTI-LOCK Light Fault, Flow Chart
G91G10856
