Test 19A: Anti-Lock Light Relay Fault

Fig 1: Test 19A - ANTI-LOCK Light Relay Fault, Schematic
G91D09182

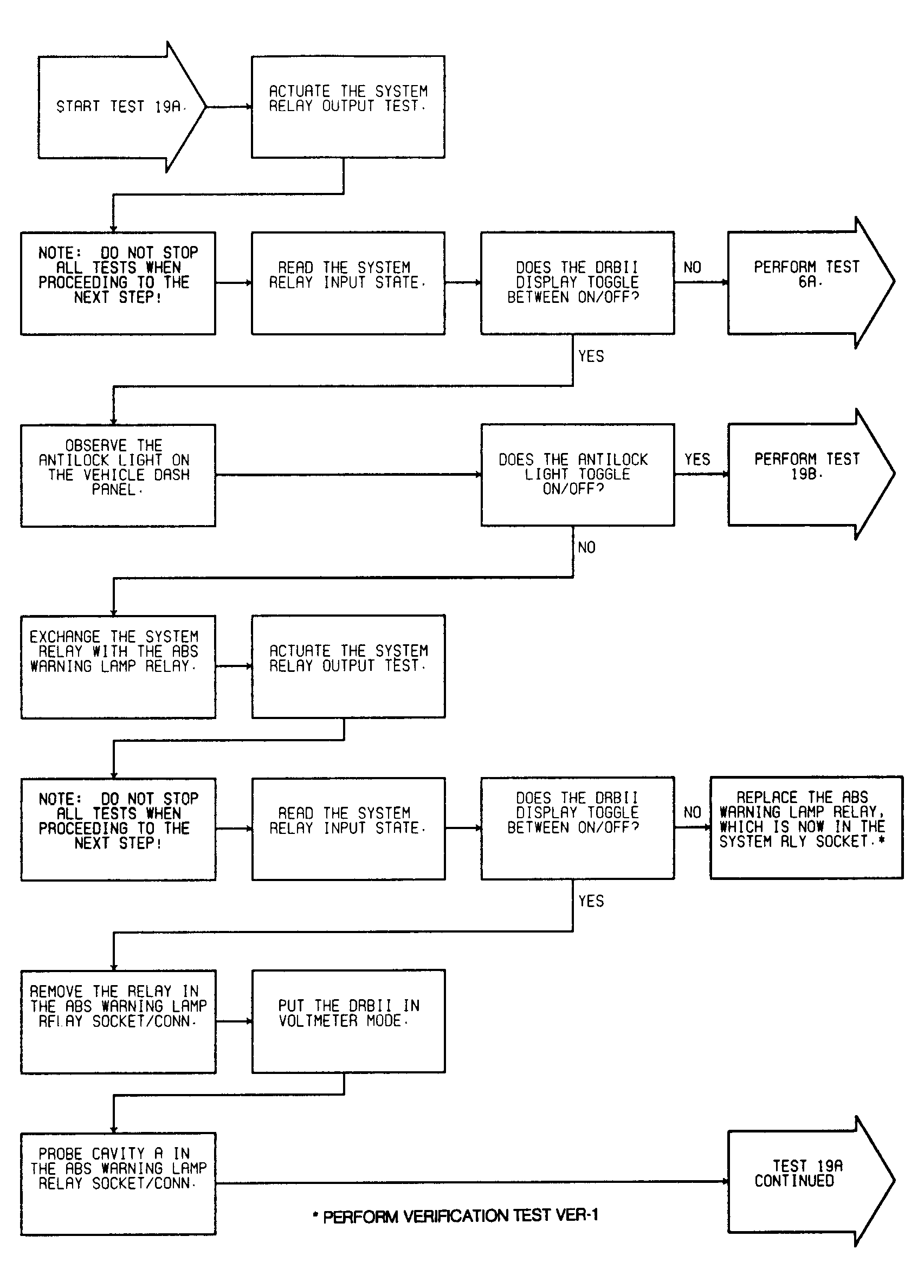

Fig 2: Test 19A - ANTI-LOCK Light Relay Fault, Flow Chart
G91H10857

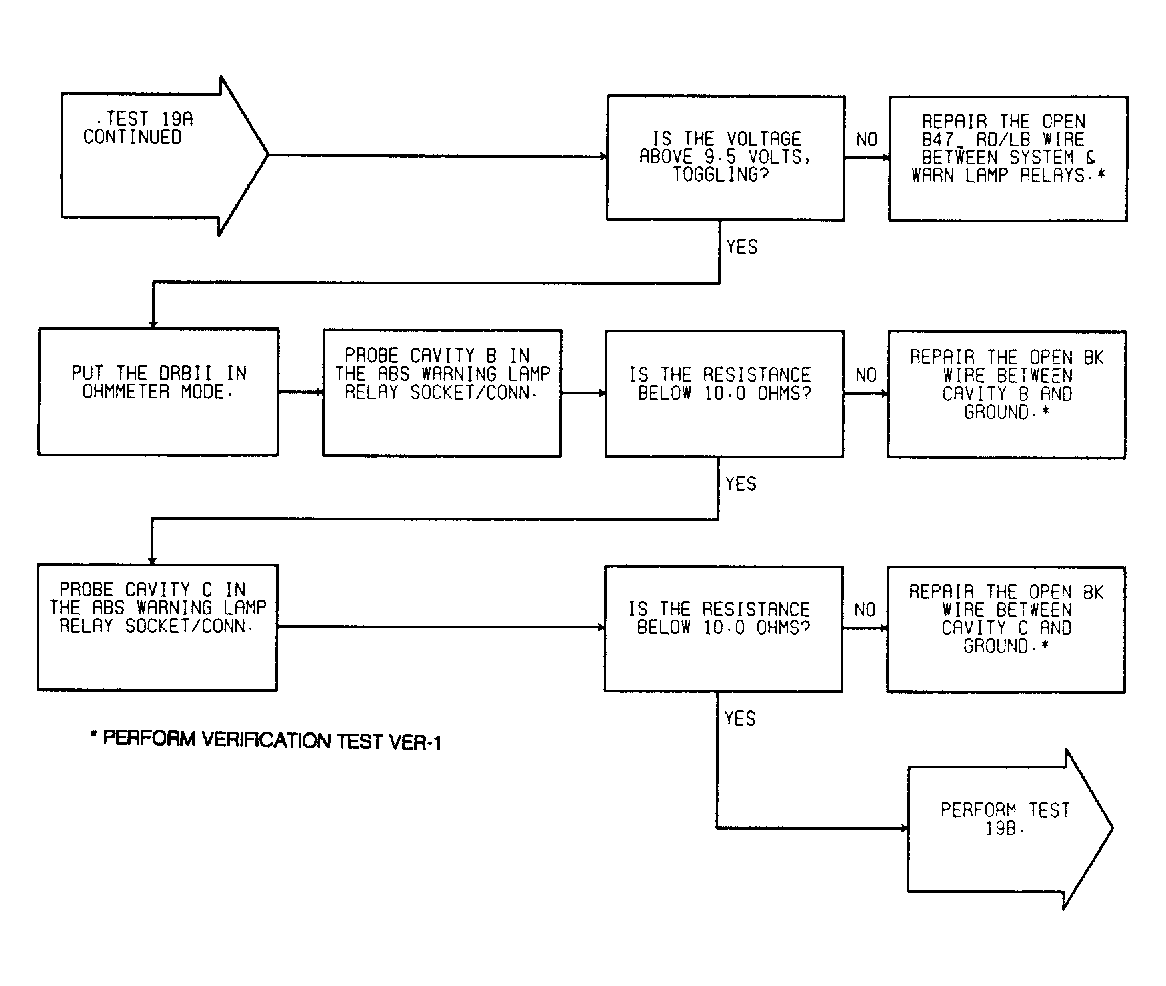

Fig 3: Test 19A - ANTI-LOCK Light Relay Fault, Flow Chart
G91I10858
