Test 22A: Hydraulic Pressure Performance Test

Fig 1: Test 22A - Hydraulic Pressure Performance Test, Schematic
G91A10876

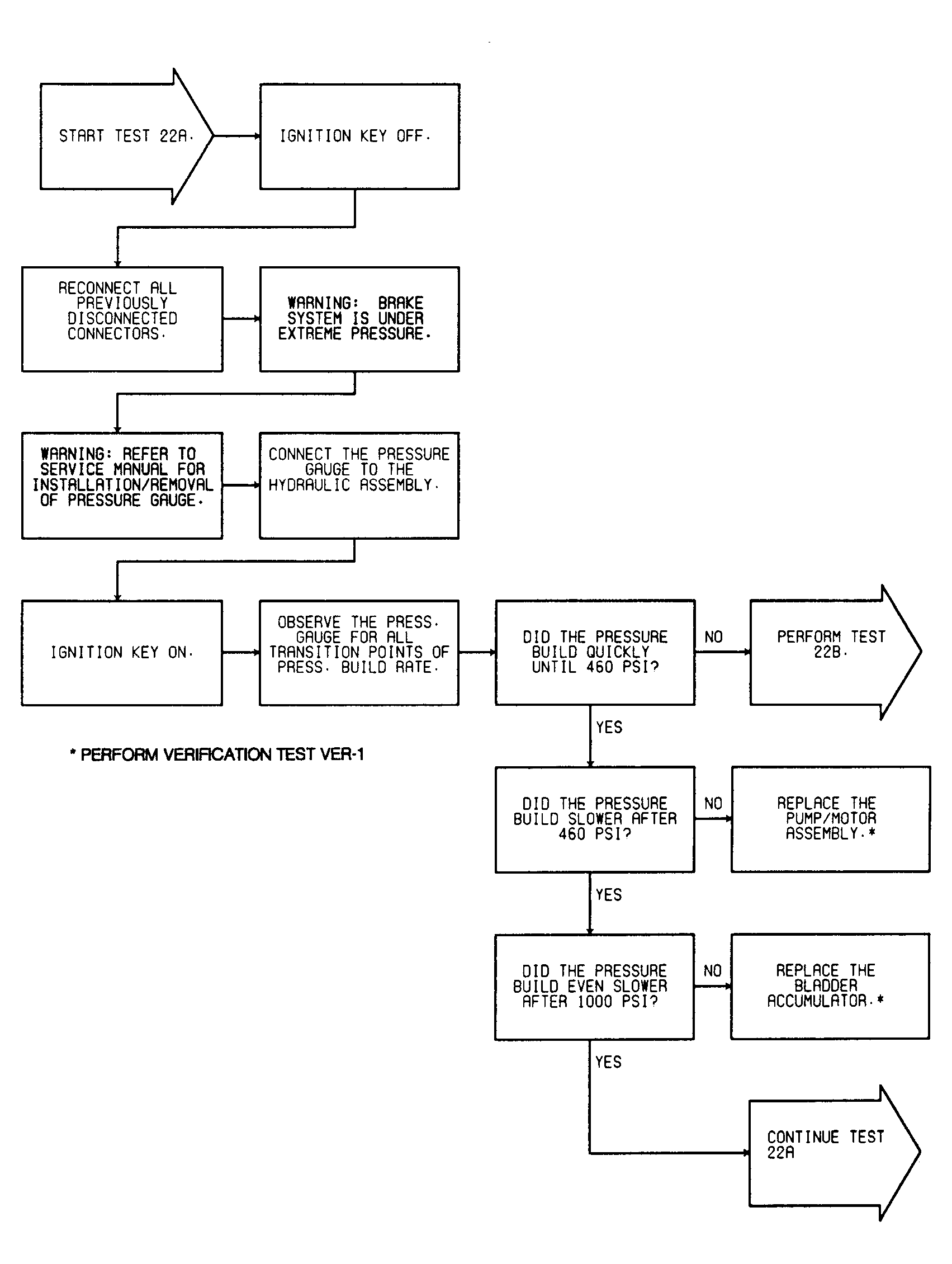

Fig 2: Test 22A - Hydraulic Pressure Performance Test, Flow Chart
G91B10877

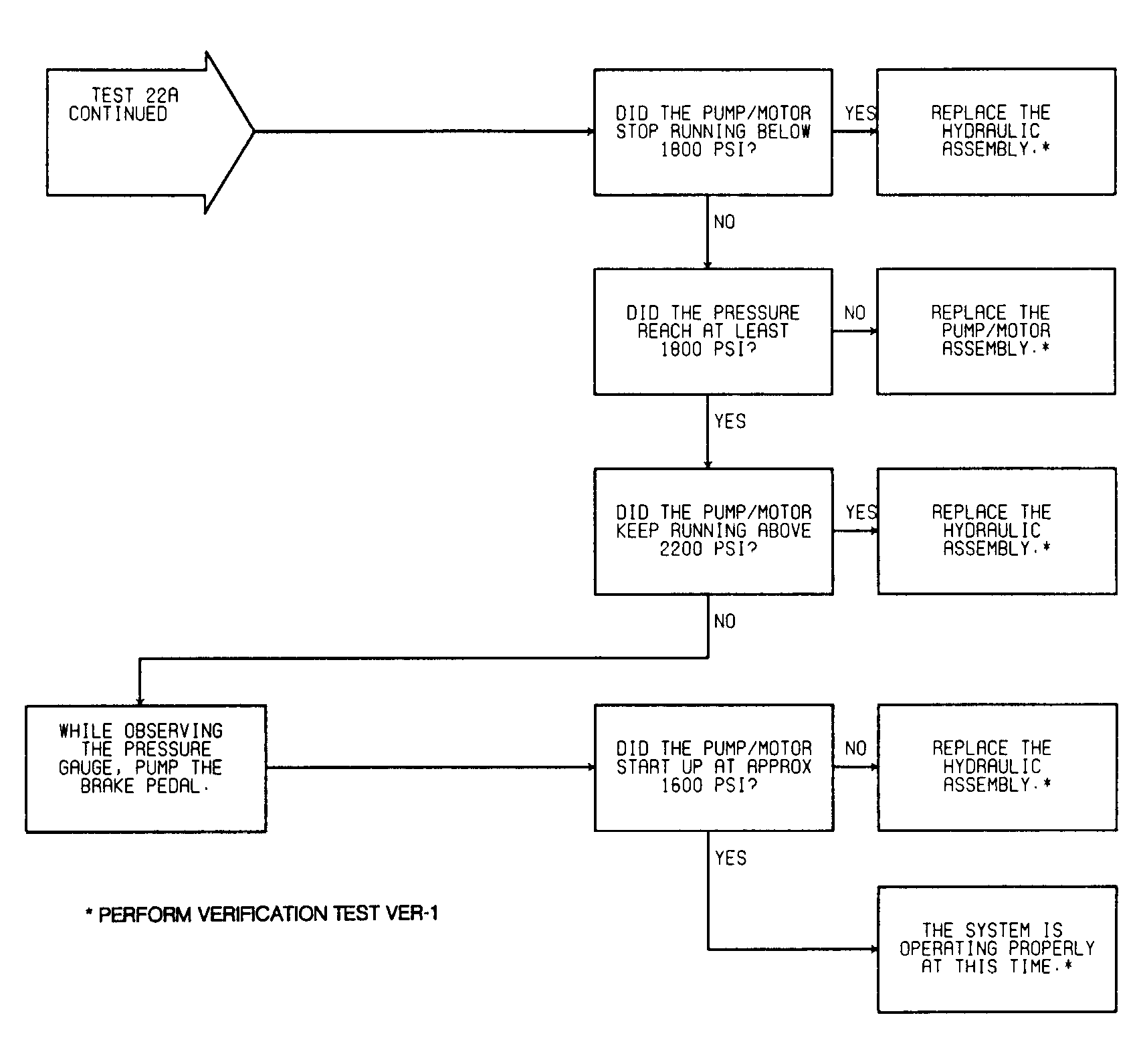

Fig 3: Test 22A - Hydraulic Pressure Performance Test, Flow Chart
G91C10878
