Test 22B: Hydraulic Pressure Performance Test
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test 22B: Hydraulic Pressure Performance Test

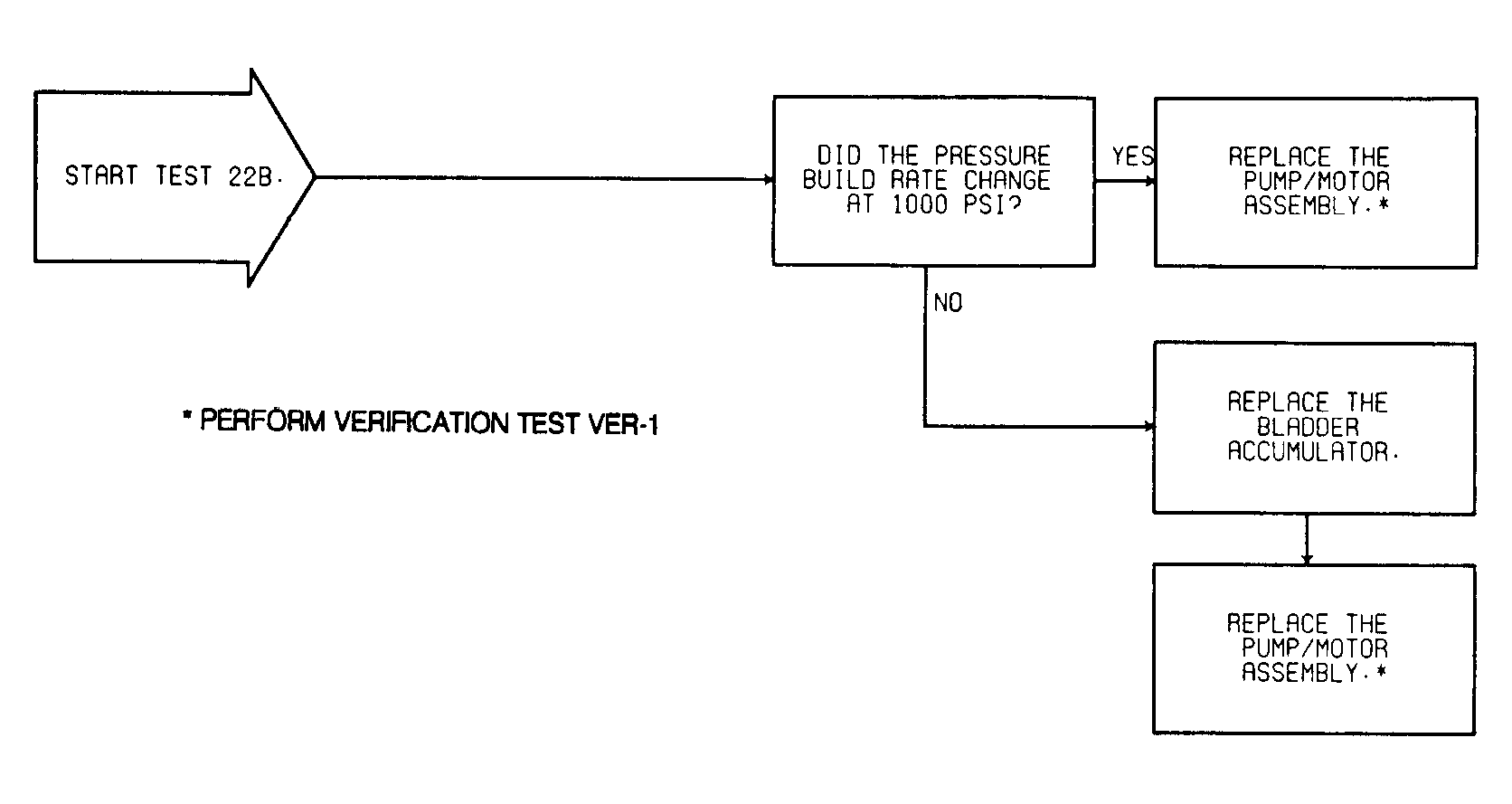

Fig 1: Test 22B - Hydraulic Pressure Performance Test
