Test 23A: Stoplight Switch Input Test

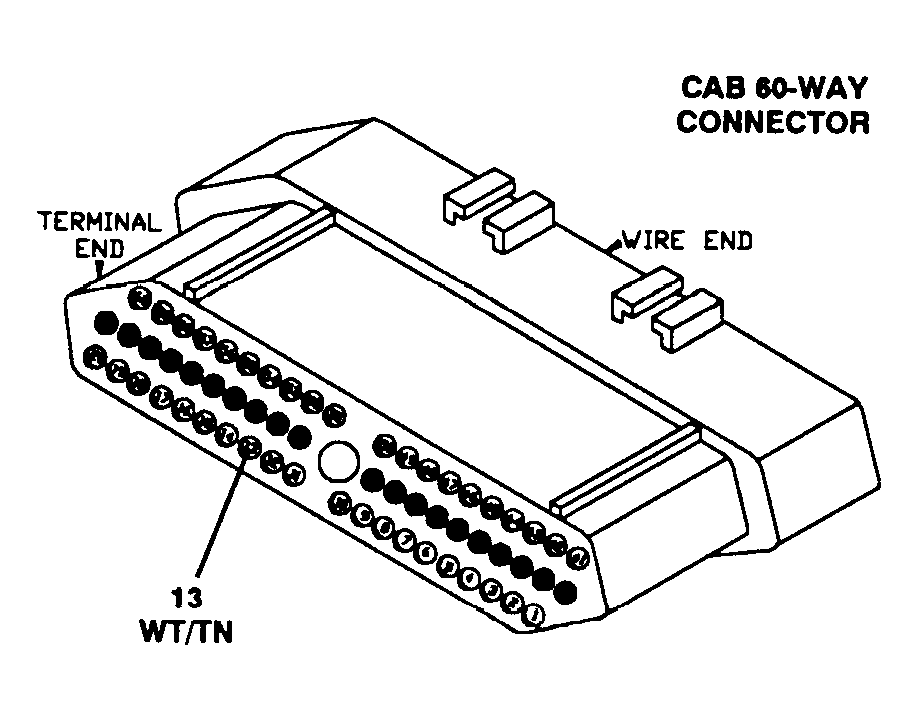

Fig 1: Test 23A - Stoplight Switch Input Test, Schematic
G91C11017

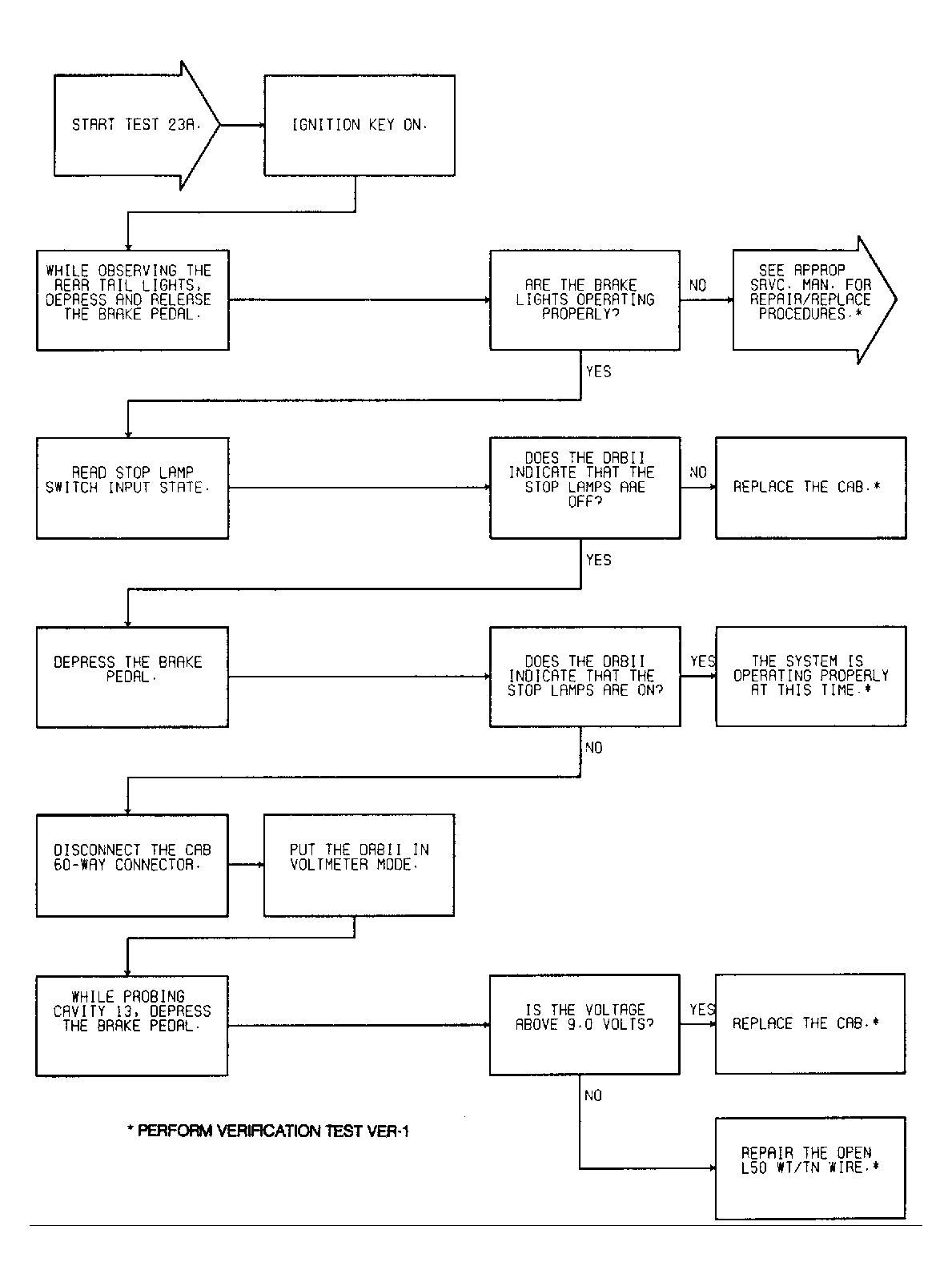

Fig 2: Test 23A - Stoplight Switch Input Test, Flow Chart
G91G10880
