Test 3A: Modulator Fault

Fig 1: Test 3A - Modulator Fault, Schematic

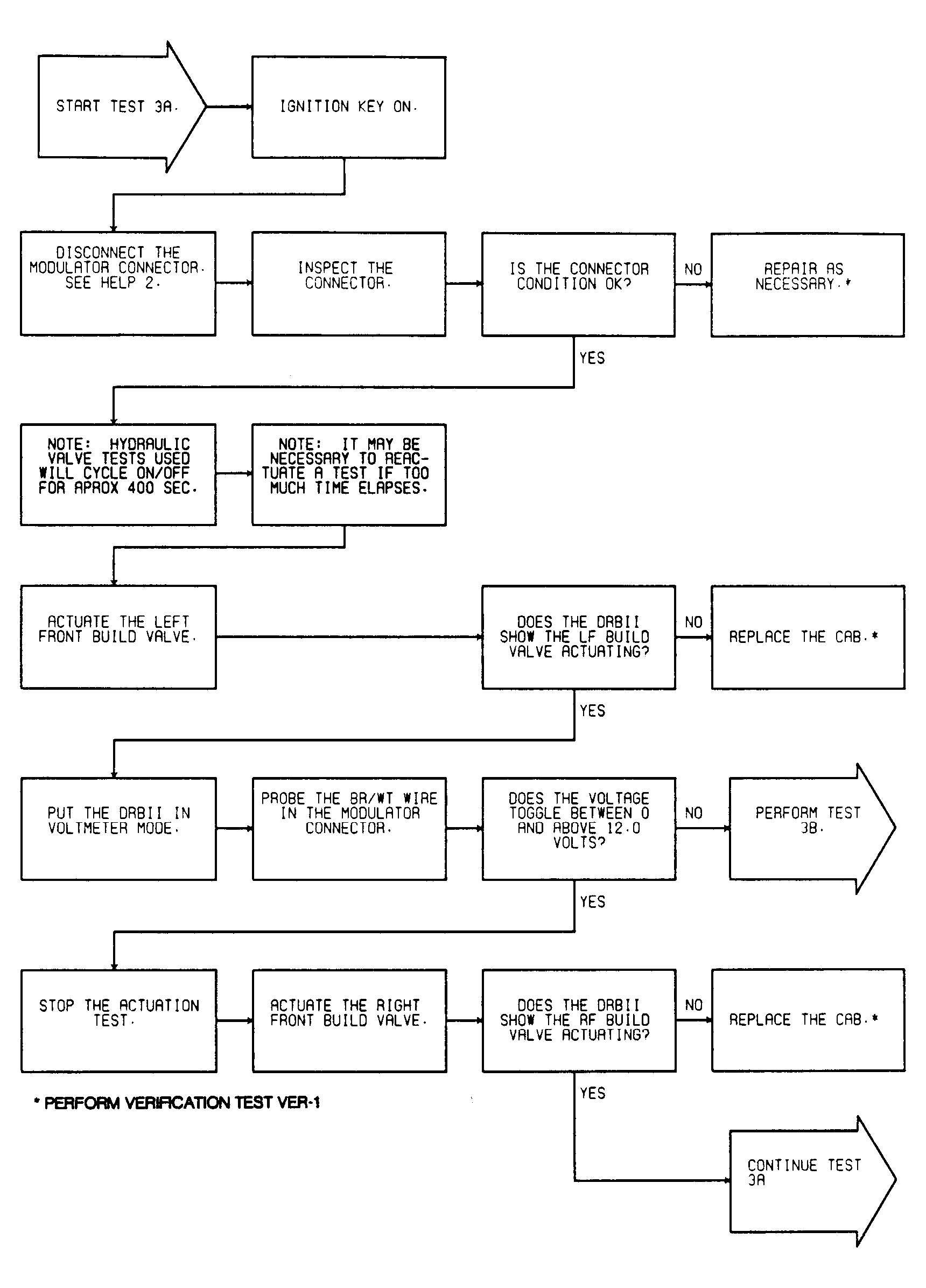

Fig 2: Test 3A - Modulator Fault, Flow Chart

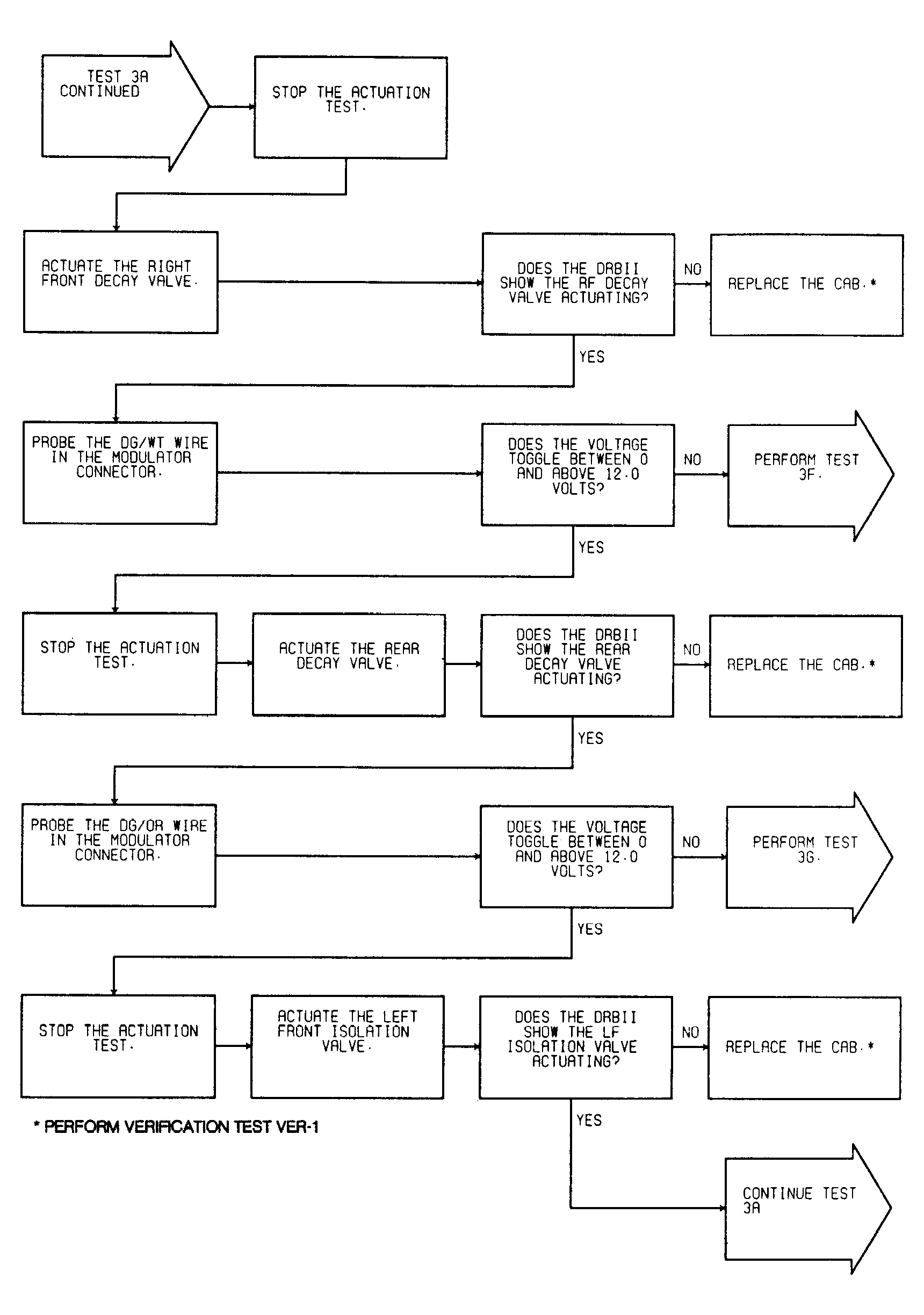

Fig 3: Test 3A - Modulator Fault, Flow Chart

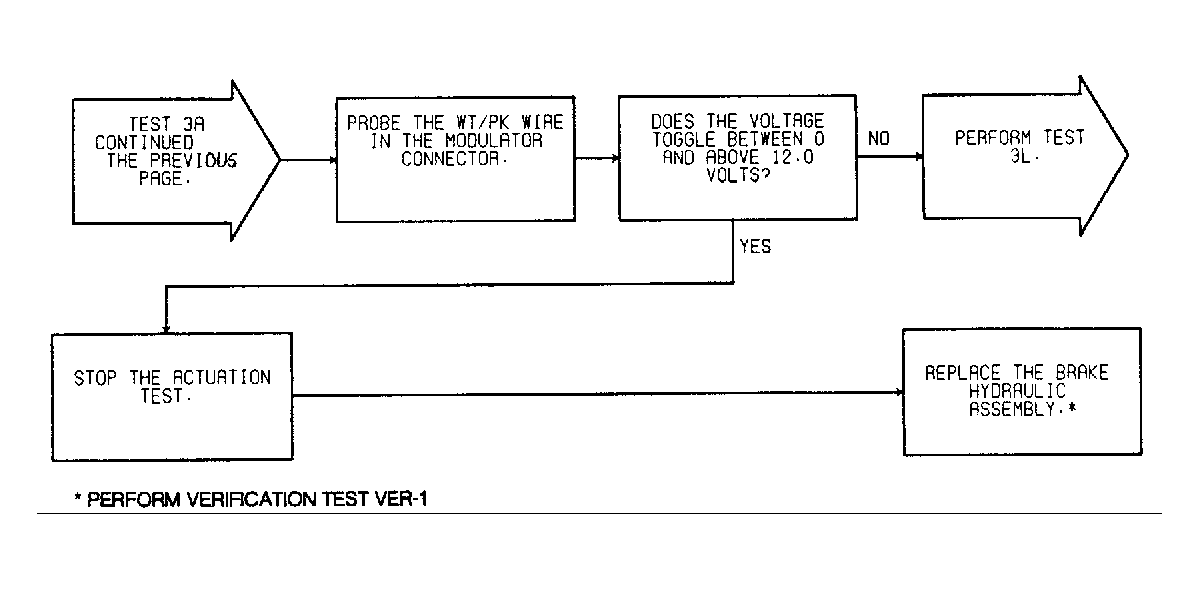

Fig 4: Test 3A - Modulator Fault, Flow Chart

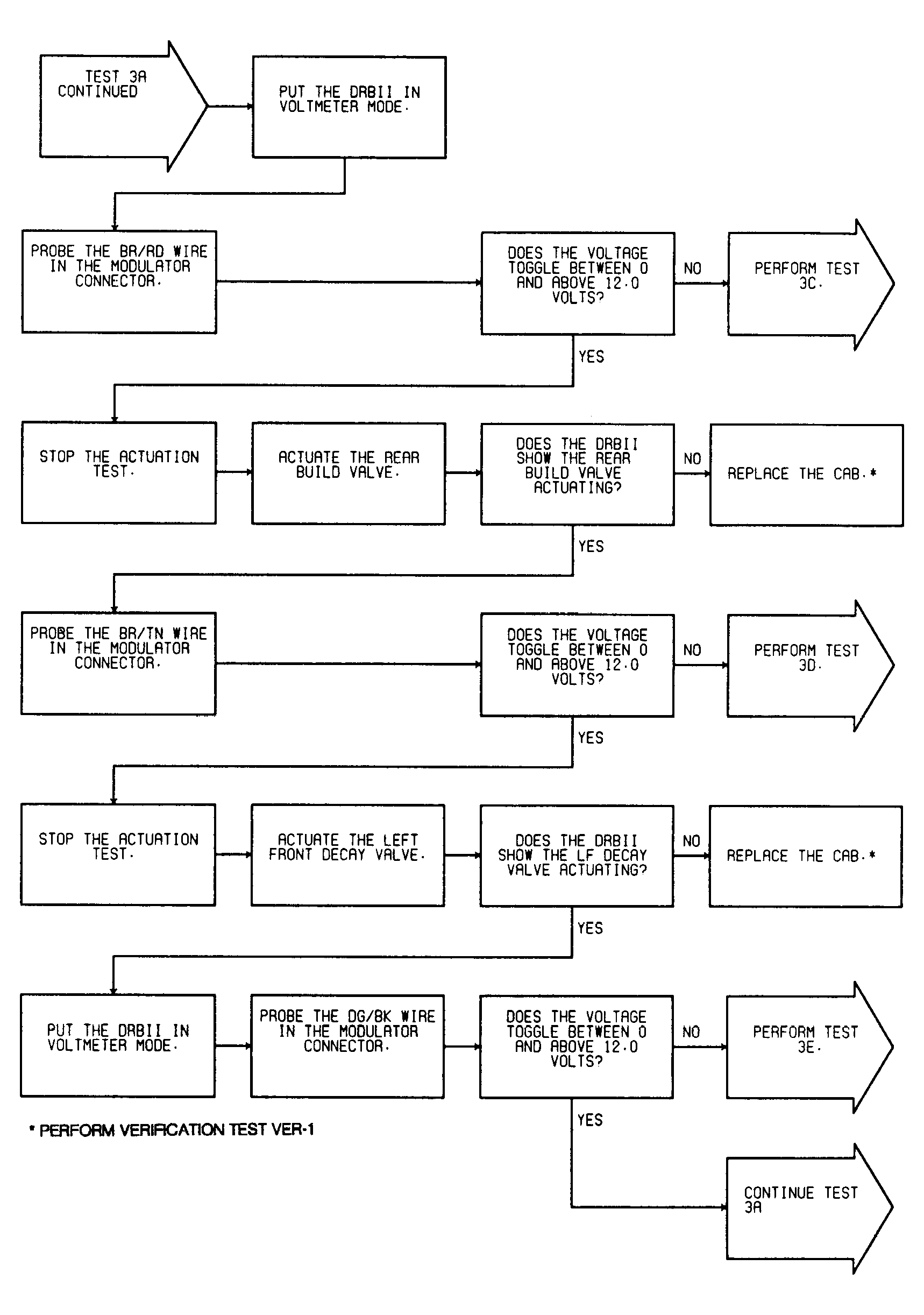

Fig 5: Test 3A - Modulator Fault, Flow Chart

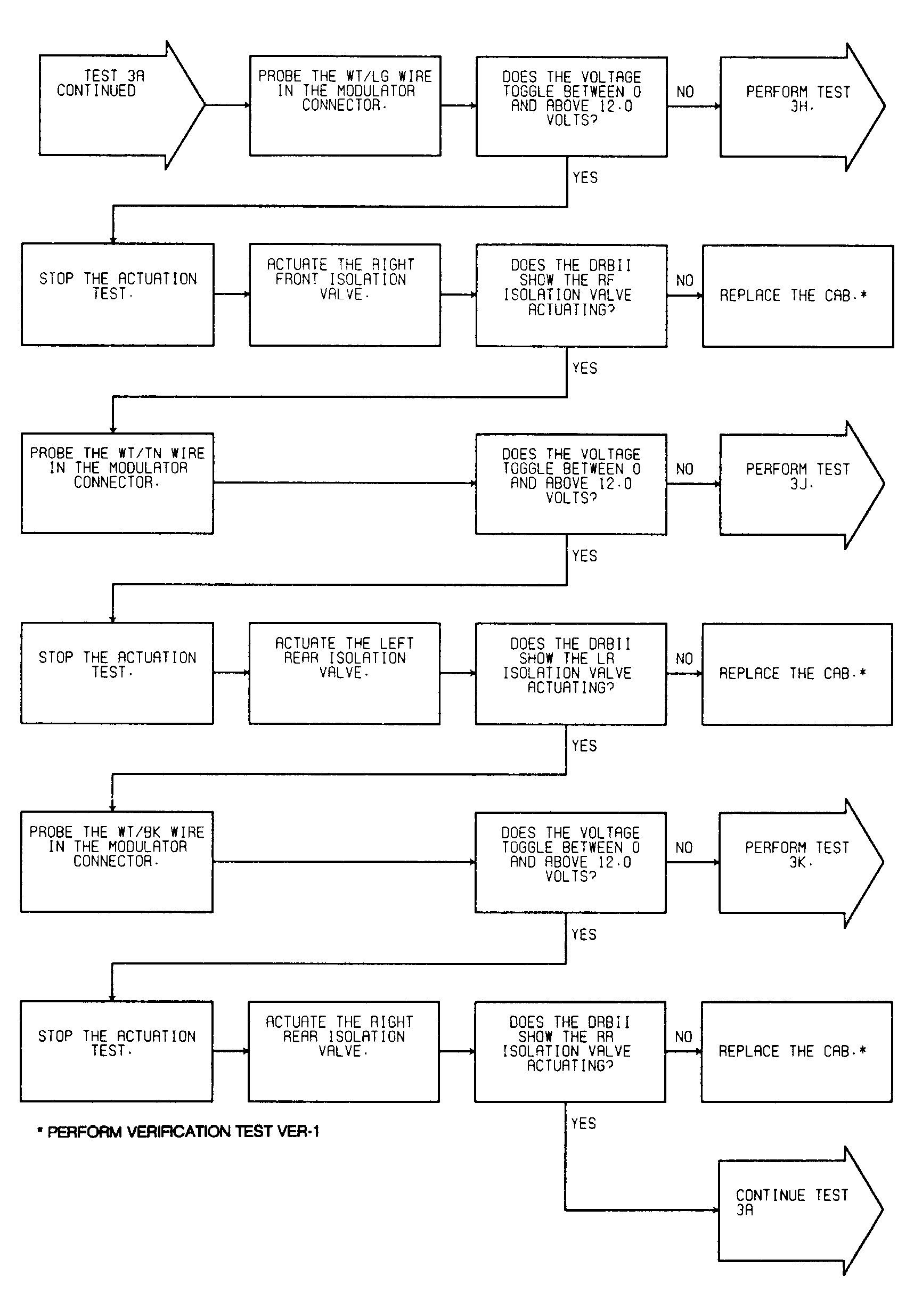

Fig 6: Test 3A - Modulator Fault, Flow Chart
