Test 3K: Modulator Fault

Fig 1: Test 3K - Modulator Fault, Schematic

G91I09165

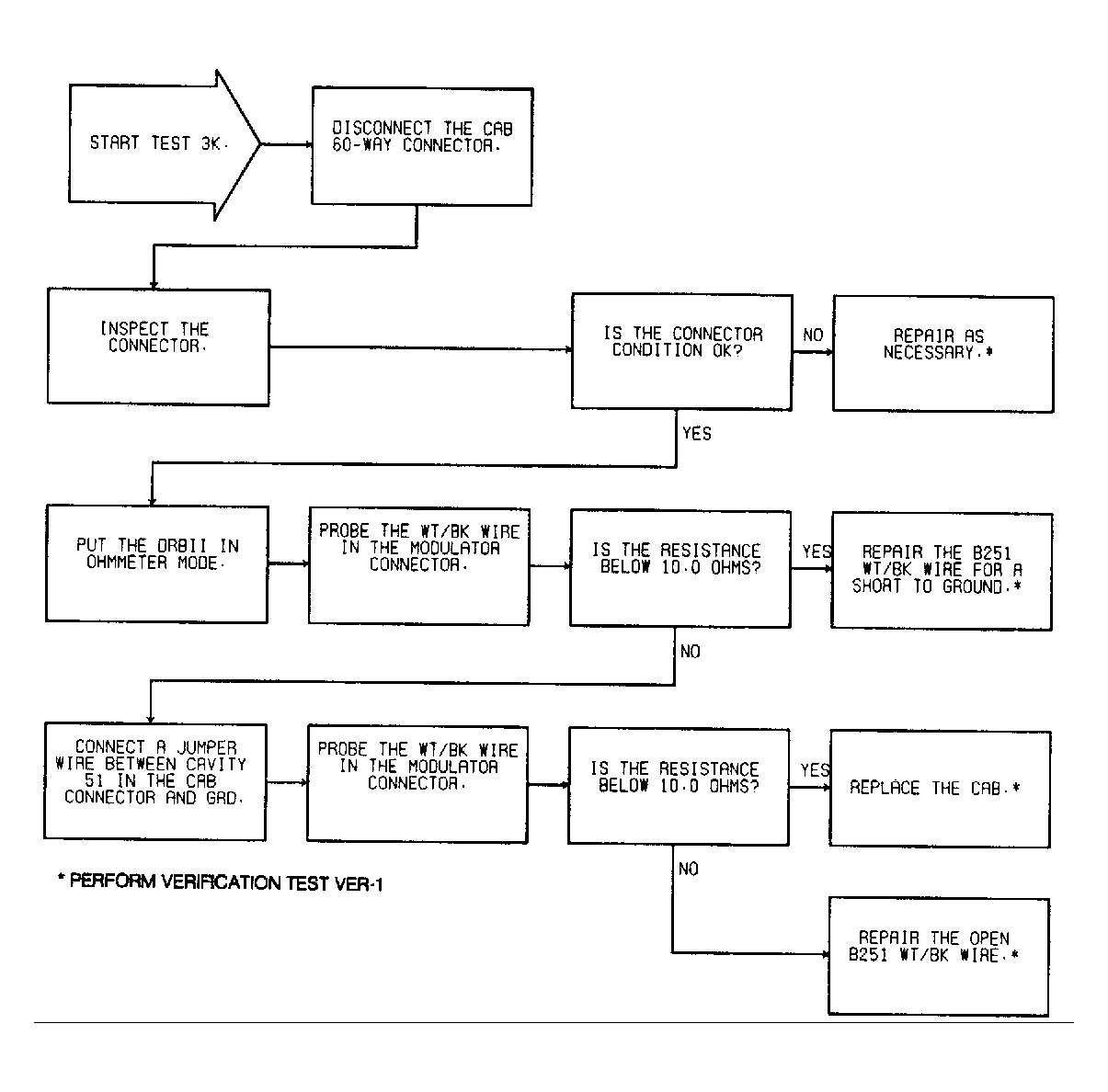

Fig 2: Test 3K - Modulator Fault, Flow Chart

G91J09180
