Test 8D: Boost Pressure Fault

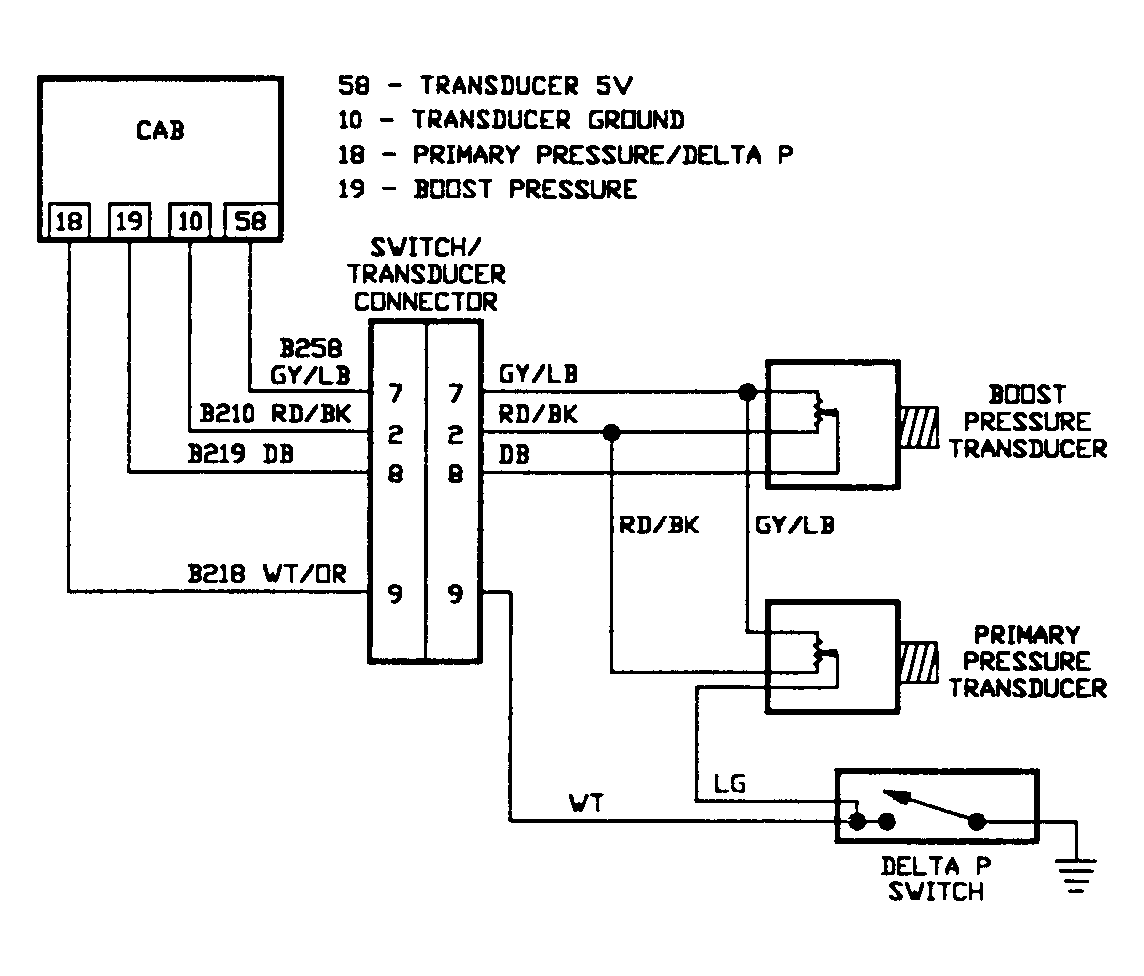

Fig 1: Test 8D - Boost Pressure Fault, Schematic

G91E10797

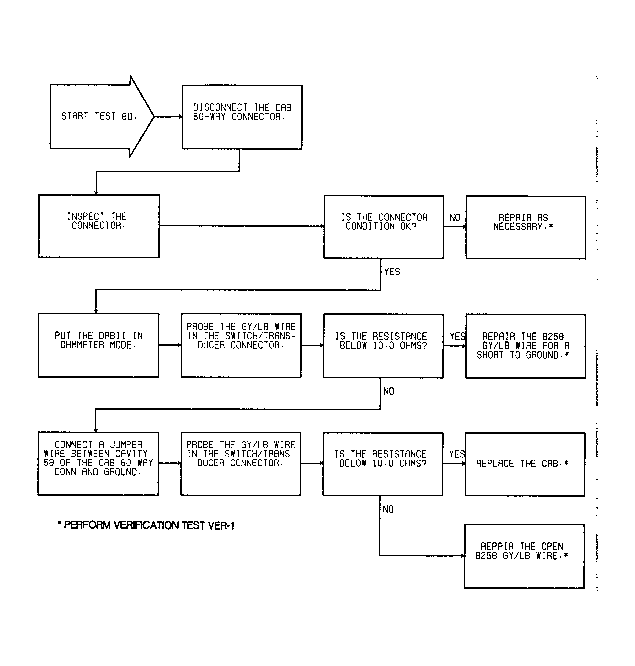

Fig 2: Test 8D - Boost Pressure Fault, Flow Chart

G91C10803
