Anti-Lock Brake System: Description

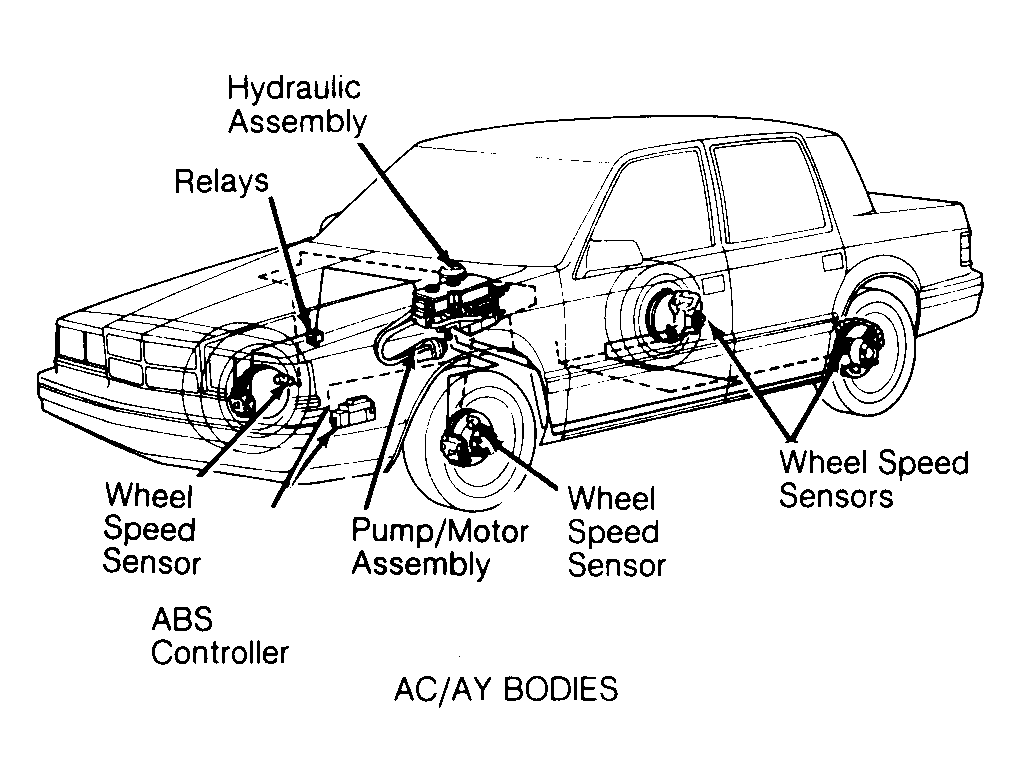

Bendix-10 Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up during heavy braking. This allows operator to maintain steering control, while stopping vehicle in shortest distance possible. Major components consist of hydraulic assembly, 4 wheel speed sensors, Anti-Lock Brake Controller (CAB), 2 warning lights (Red BRAKE and MD14Amber ANTI-LOCK) and pump/motor assembly. See Figure . ABS has a self-diagnostic system to warn of system malfunction and for trouble shooting.
NOTE:
For more information on brake system, see appropriate BRAKE SYSTEM article. Refer to the following menu:
- For 1990 Models, see: BRAKE SYSTEM .
- For 1991 Models, see: BRAKE SYSTEM .
- For 1992 Models, see: BRAKE SYSTEM .
