Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C-Heater Control Unit | Under dash, on right side of A/C-heater assembly. | |
| Chime Module | Behind dash, to right of cruise control module. | |
| Cruise Control Module | Behind dash, left of steering column. | |
| ECAT Control Module | On right fender panel, next to washer reservoir. | |
| Electronic Control Unit (ECU) | Under dash, on passenger's side of vehicle. | |
| Ignition Module | ||
| 4-Cyl. | On frame bracket, below washer reservoir. | |

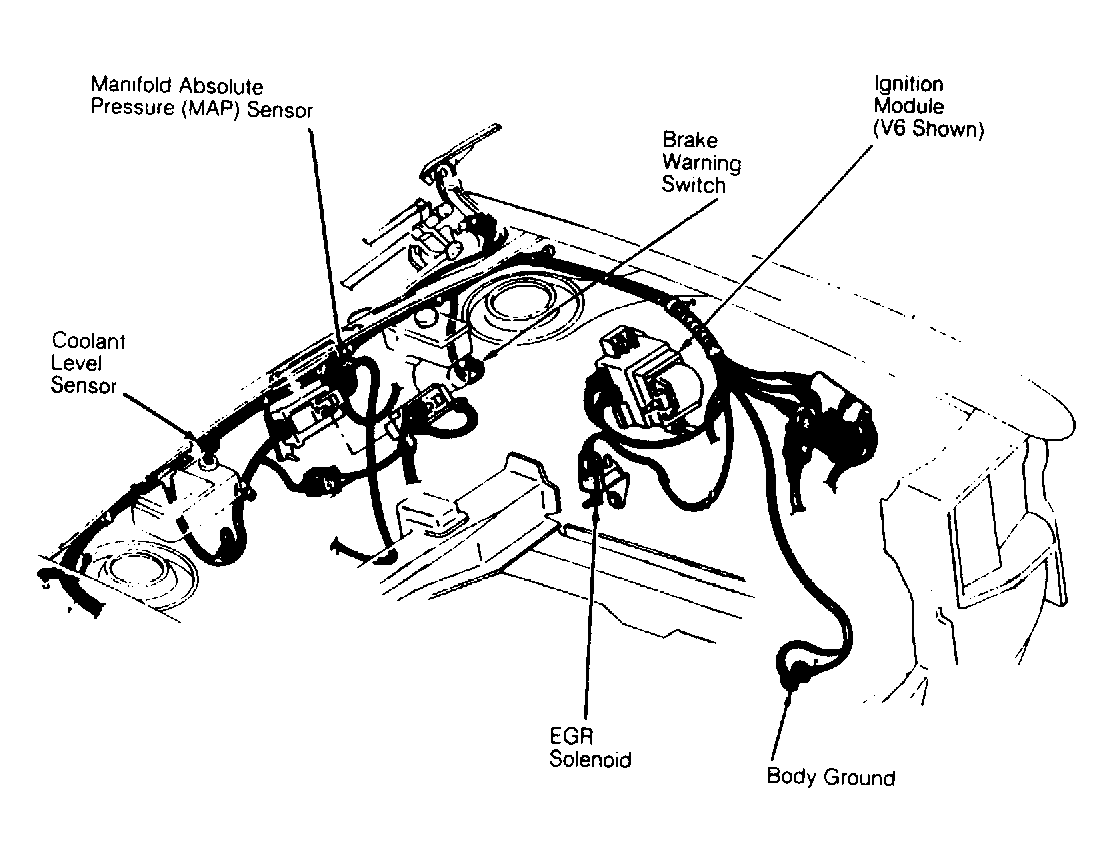

| V6 | On bracket, on left strut tower. See Figure . | |
| Illuminated Entry Module | Behind right side of glove box. | |
| Intermittent Wiper Module | Under dash, by passenger's side courtesy light. | |
| Lighting Module | Under dash, by driver's side courtesy light. | |
| Lamp Module | Behind fuse panel. | |
| Light-Out Warning Module | In luggage compartment, near right speaker. | |
| Passive Restraint Control Unit | In luggage compartment, on left side. | |
| Vehicle Maintenance Module (VMM) | Behind instrument cluster. | |
