Fault 1012: Ignition Control Module Line Low

Fig 1: Fault 1012: Circuit Diagram

G90B16148

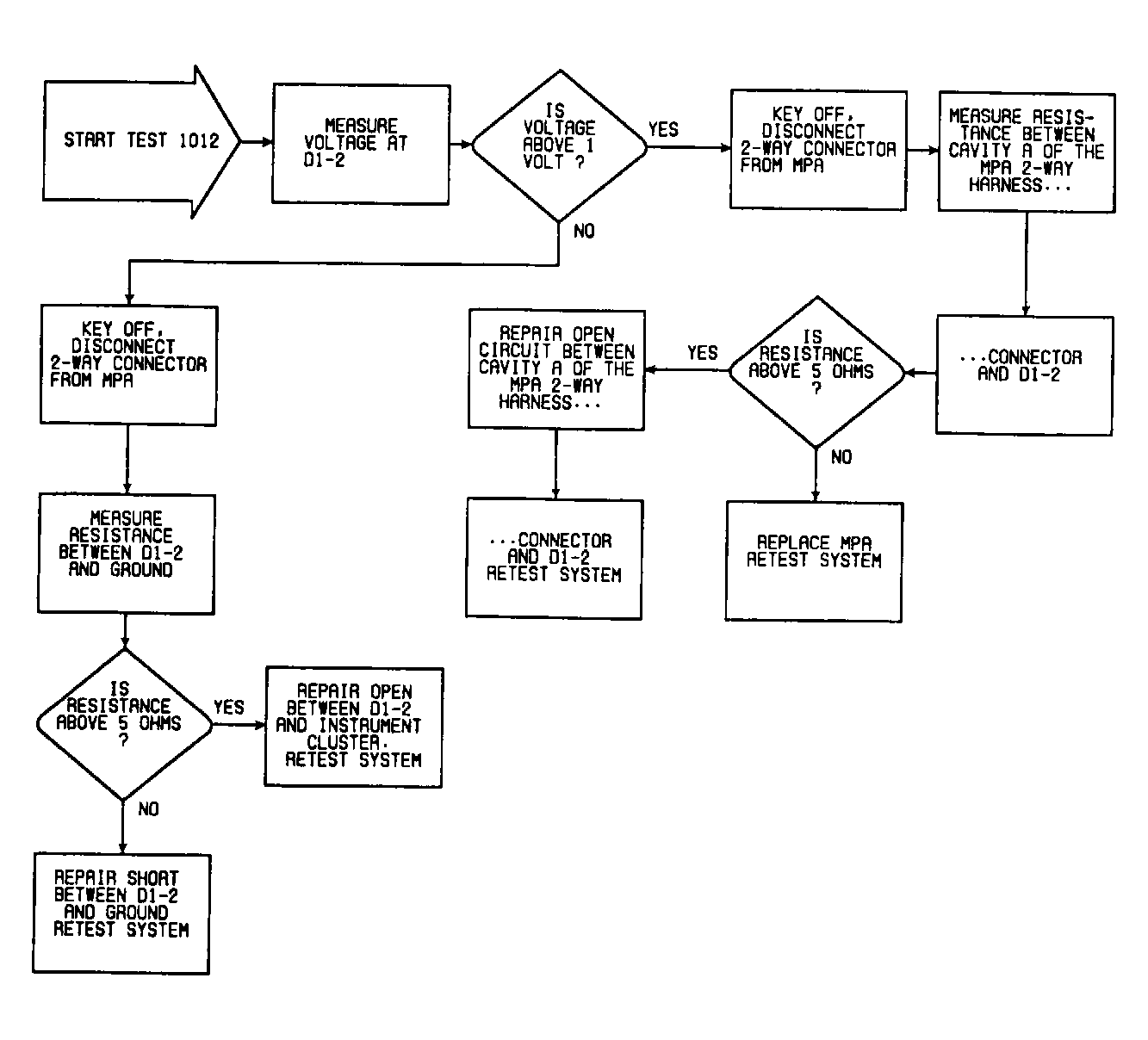

Fig 2: Fault 1012: Flow Chart

G90I03130
