Fault 1013: Ignition Control Module Line High

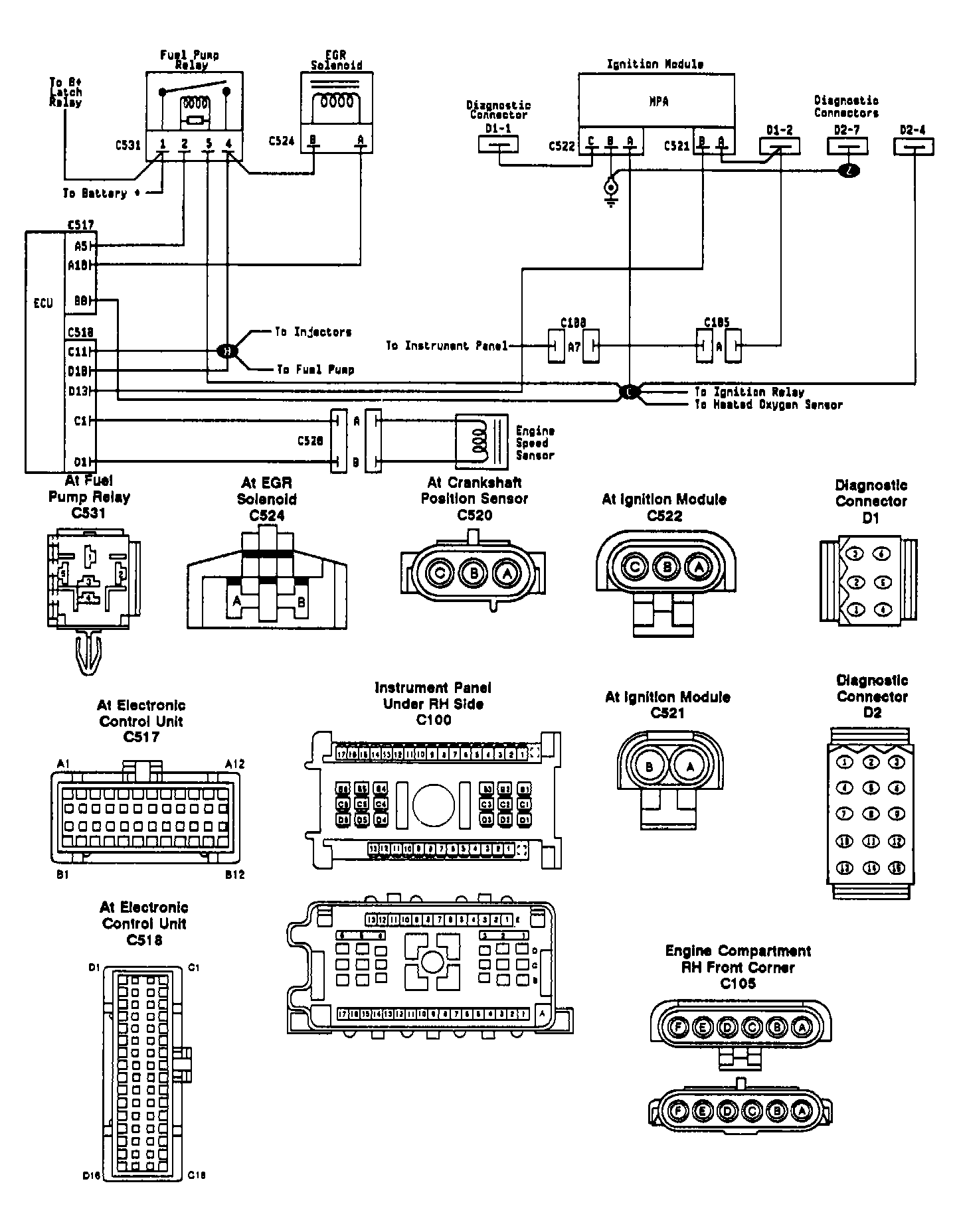

Fig 1: Fault 1013: Circuit Diagram

G90B16148

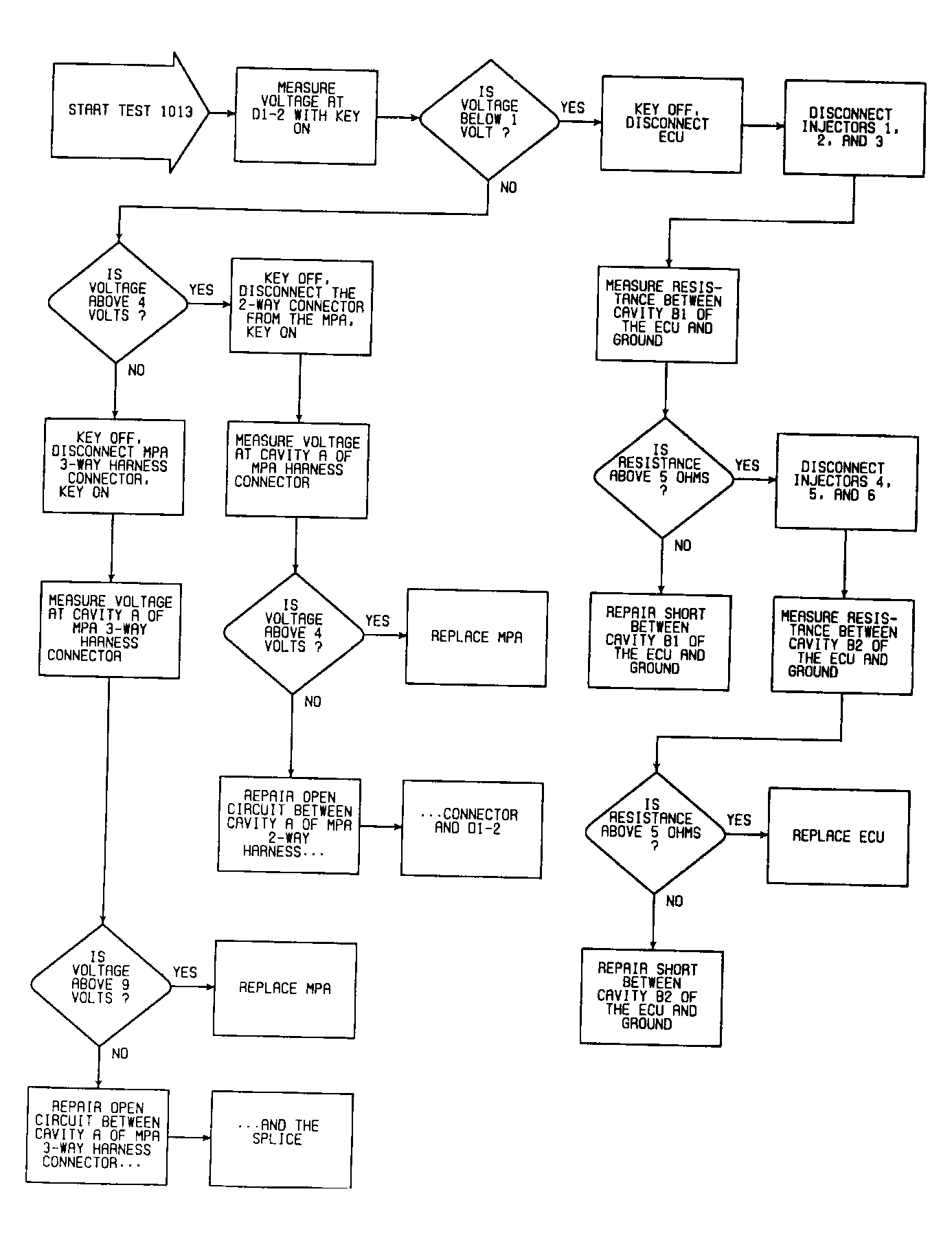

Fig 2: Fault 1013: Flow Chart

G90A03131
