Fault 1017: Mat Sensor Line High

Fig 1: Fault 1017: Circuit Diagram
G90A16147

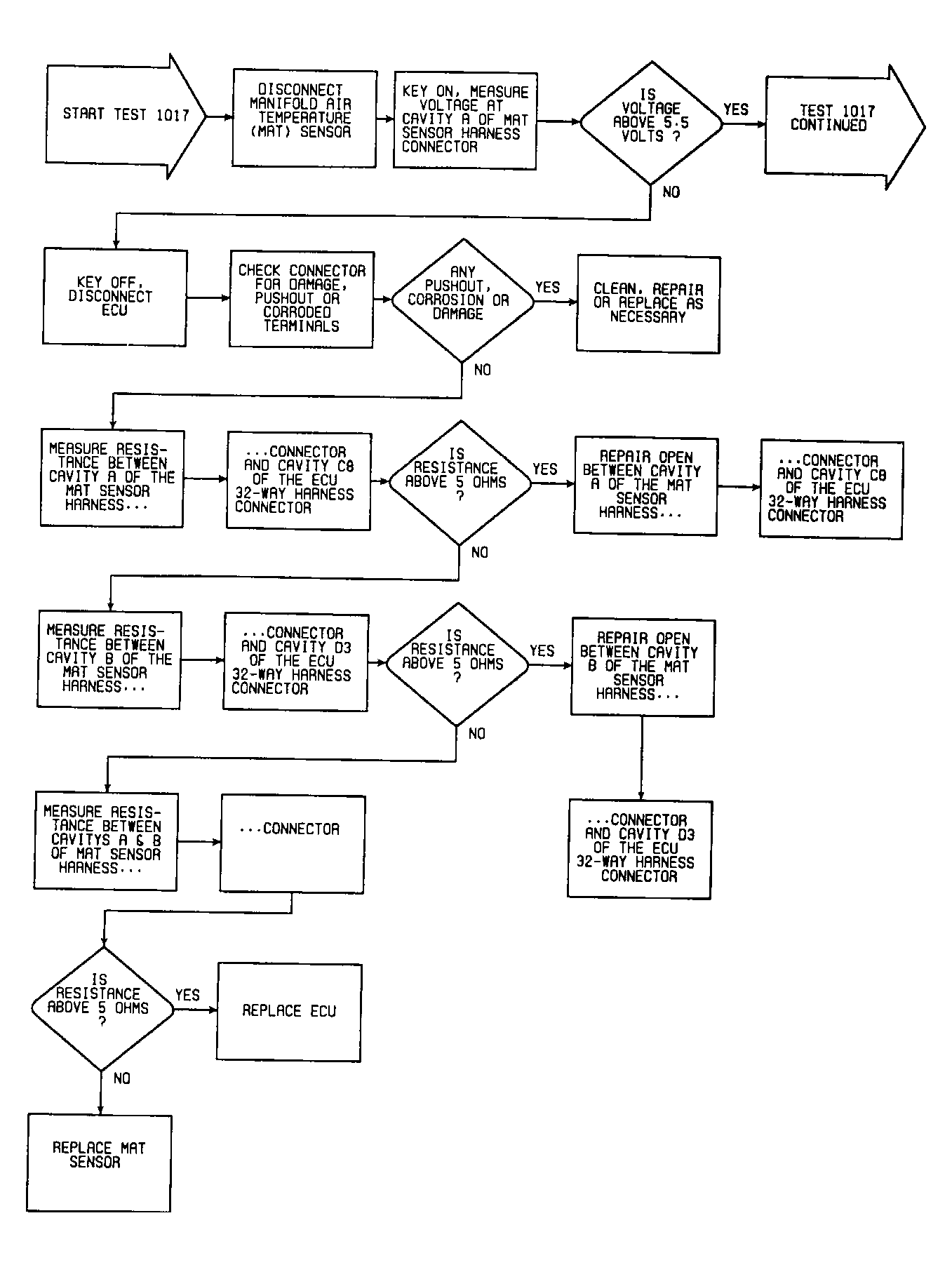

Fig 2: Fault 1017: Flow Chart (1 of 2)
G90F03138

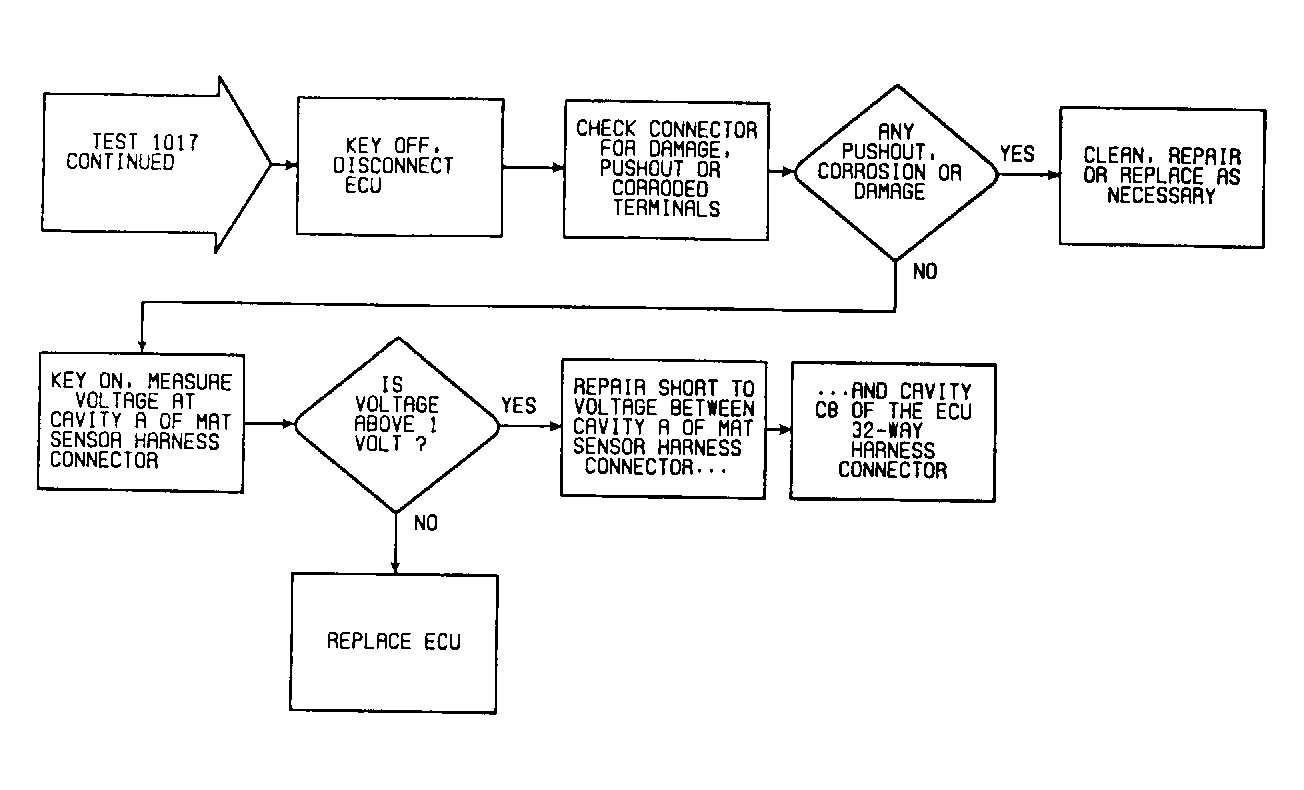

Fig 3: Fault 1017: Flow Chart (2 of 2)
G90H03139
