Fault 1066: O2 Sensor Reads Lean

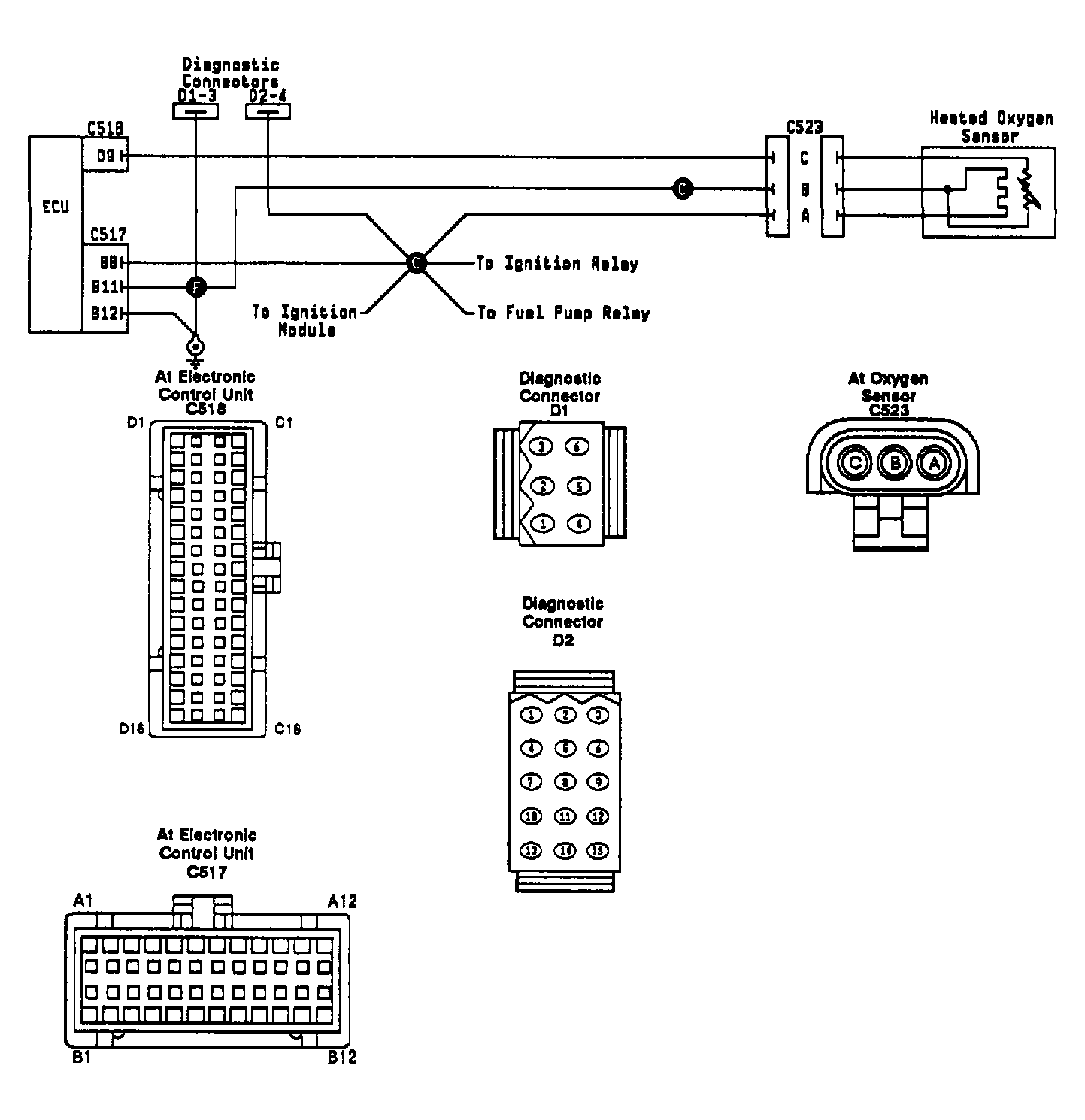

Fig 1: Fault 1066: Circuit Diagram
G90B16155

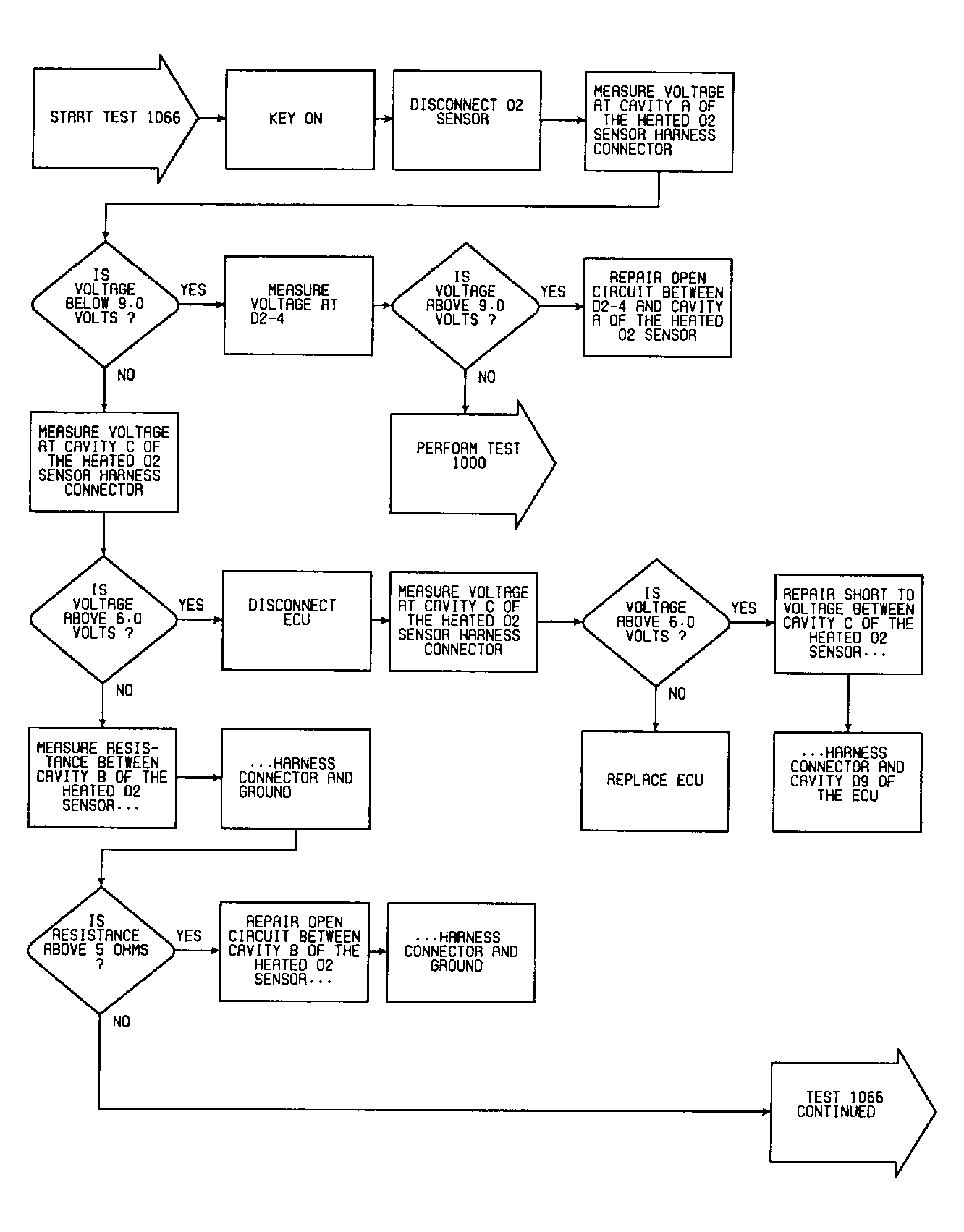

Fig 2: Fault 1066: Flow Chart (1 of 2)
G90G03191

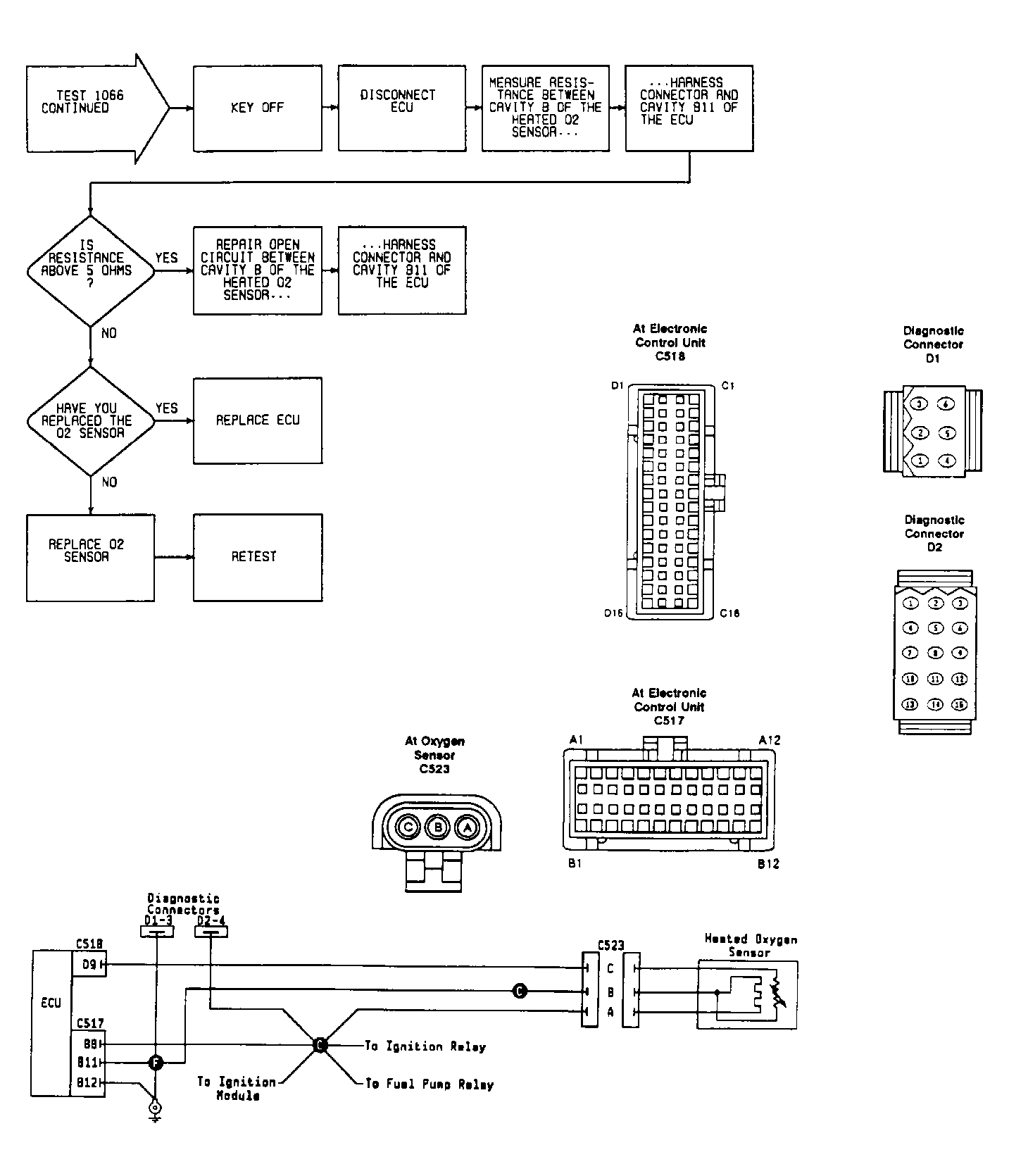

Fig 3: Fault 1066: Flow Chart (2 of 2)
G90I03192
