Ensure that the mirror moves as described in the table, see Fig 1Fig 2
, when each terminal is connected to the battery. Verify continuity exists as shown.

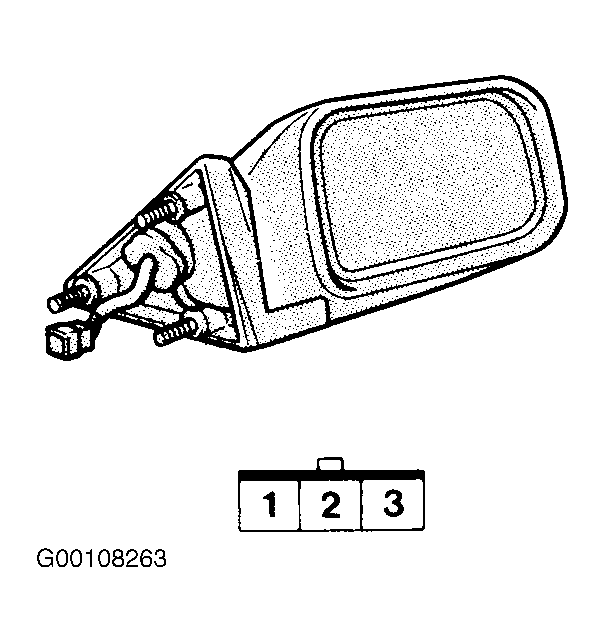

Fig 1: Identifying Mirror Assembly Terminals
Courtesy of CHRYSLER CORP.

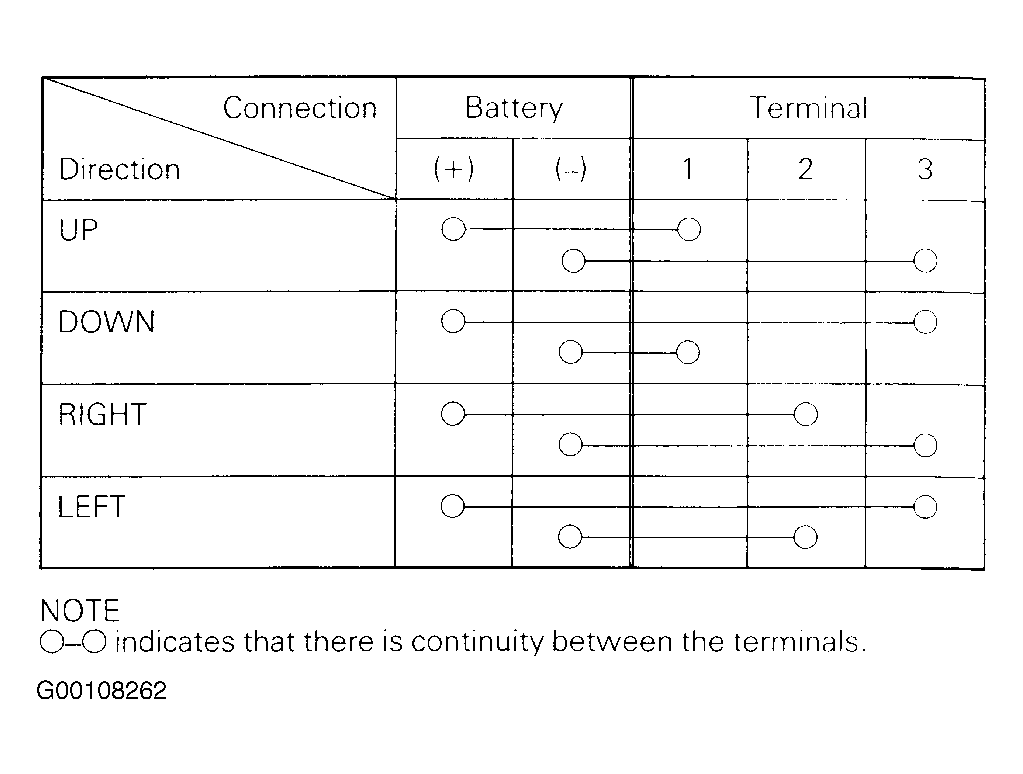

Fig 2: Identifying Mirror Assembly Switch Test Table
