Component Tests: Switch

Using an ohmmeter, test for continuity between terminals as shown. See Fig 1 and Fig 2 .

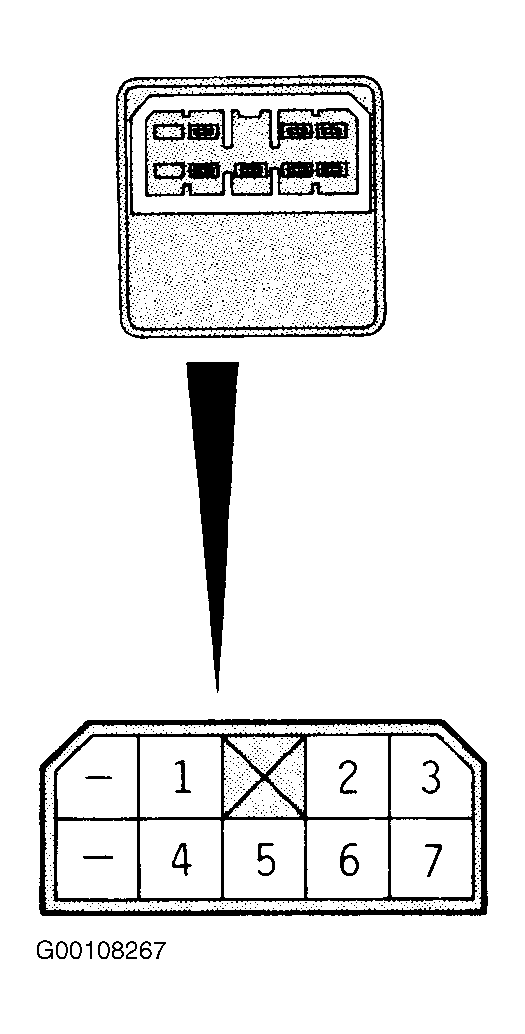

Fig 1: Identifying Mirror Switch Terminals

Courtesy of CHRYSLER CORP.

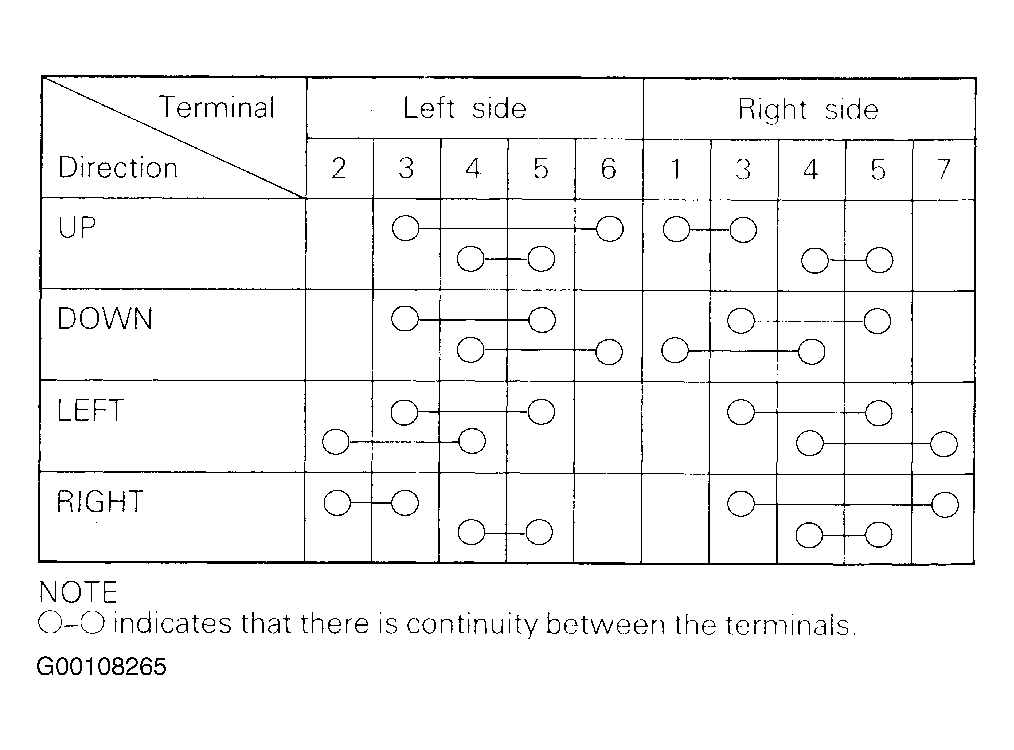

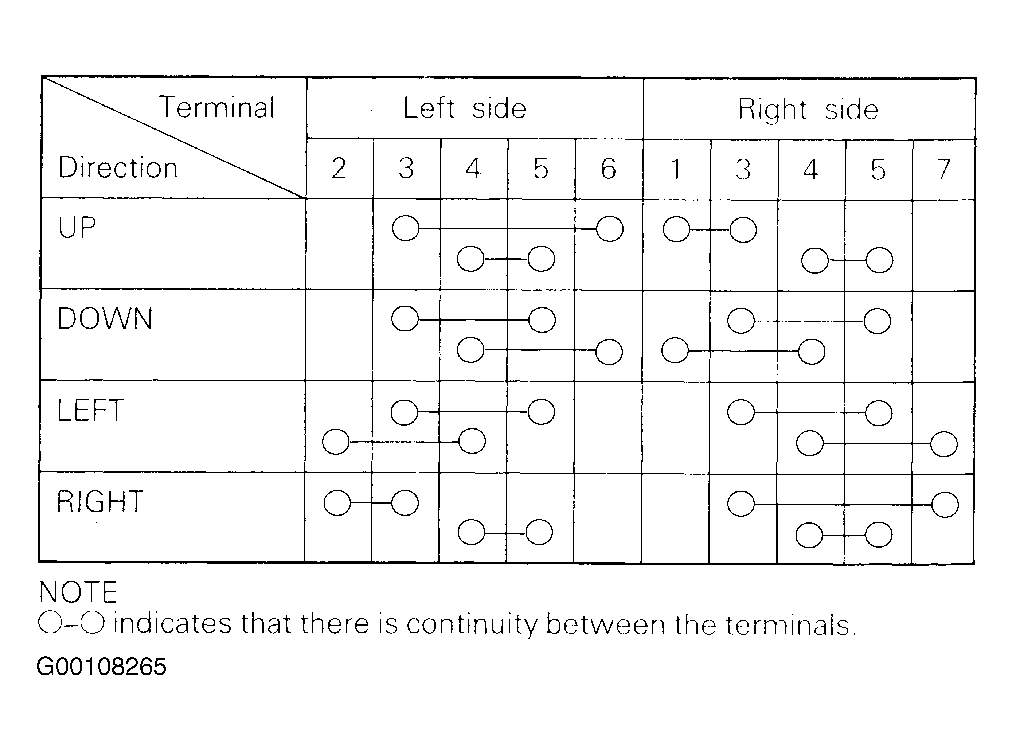

Fig 2: Mirror Switch Continuity Test

Courtesy of CHRYSLER CORP.
