Power Window Relay

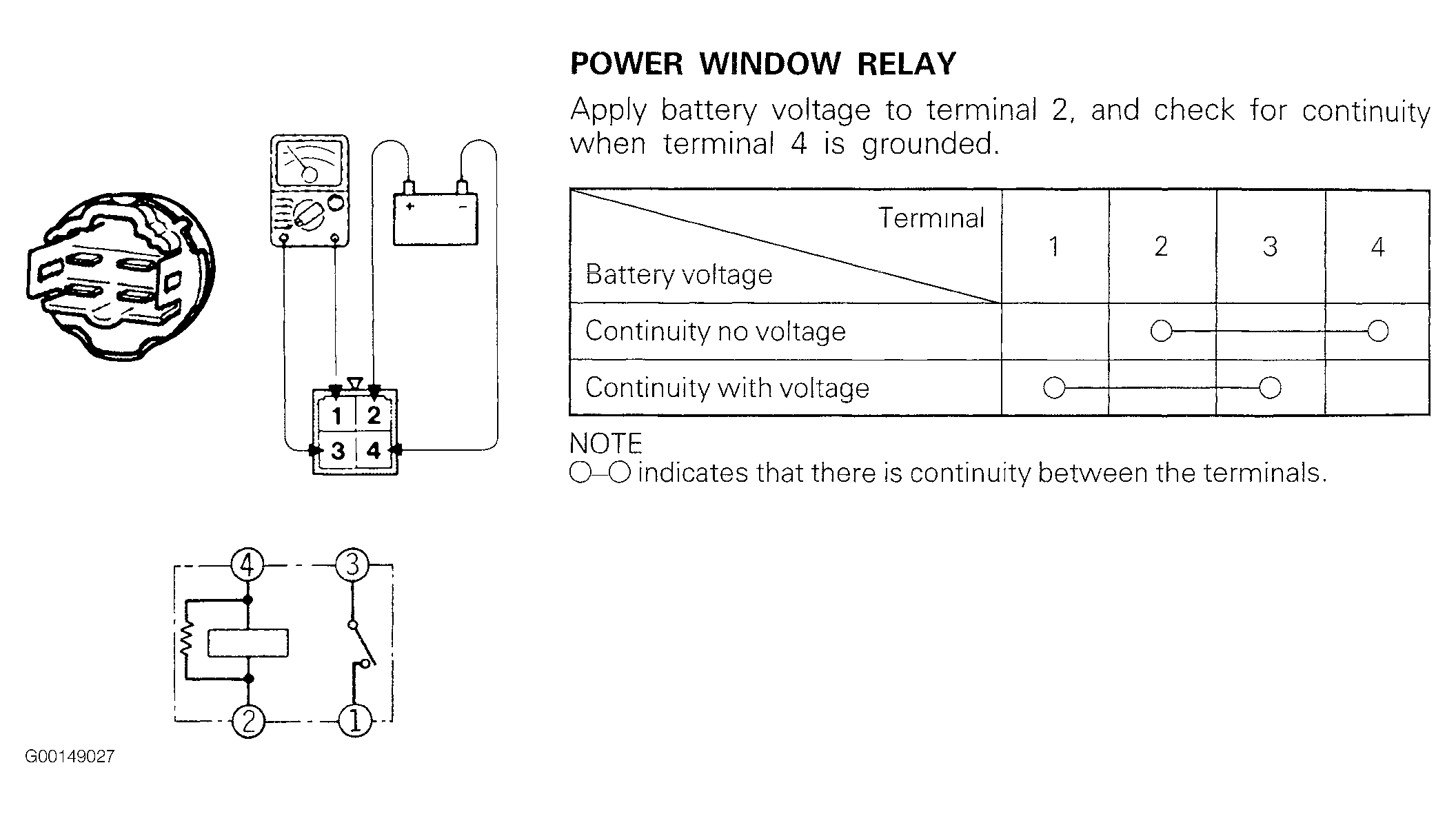

Fig 1: Power Window Relay Test
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
