Power Window Sub-Switch

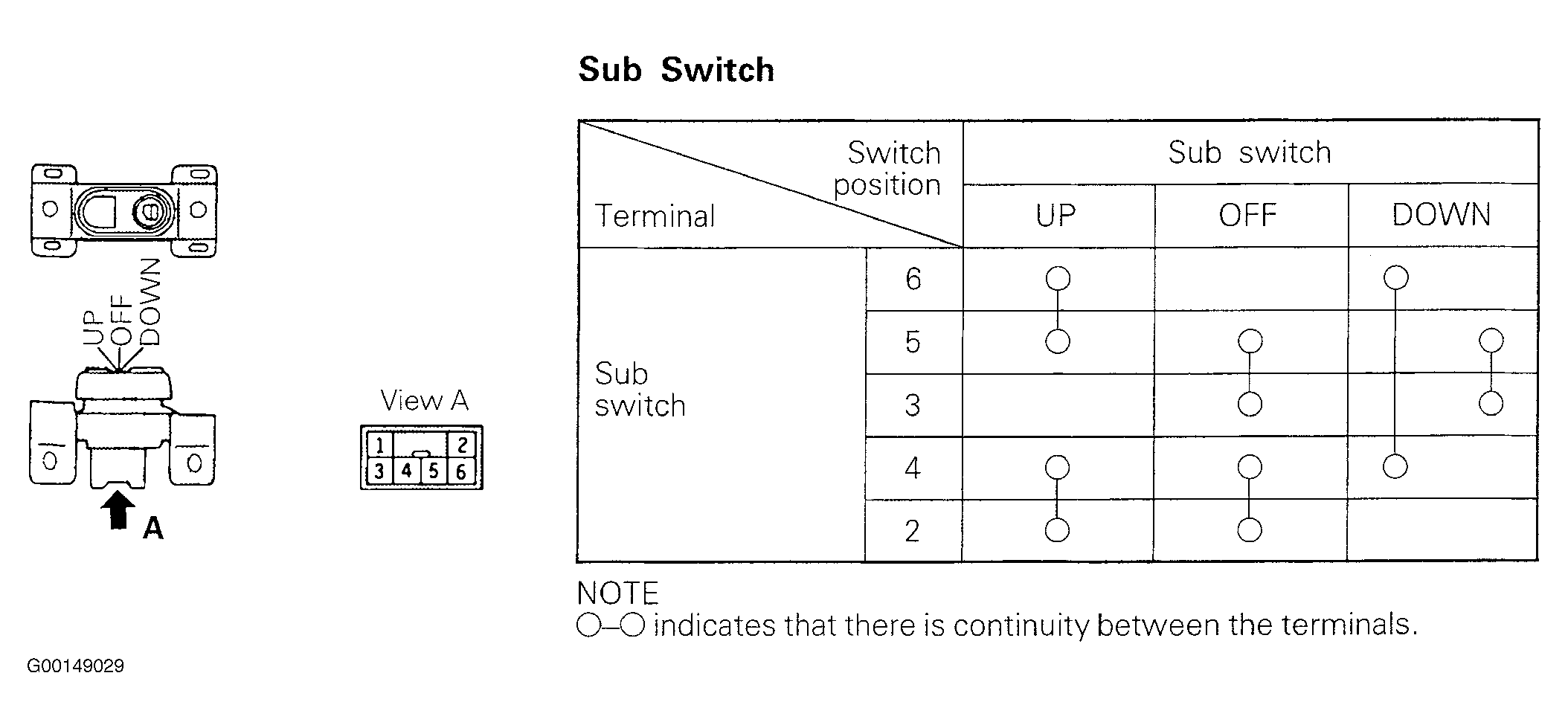

Fig 1: Power Window Sub-Switch Continuity Test
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
