Repair and Diagnosis: Electrical: Starter: Overhaul: Reassembly

To reassemble, reverse disassembly procedure. Fill gear case on reduction gear models with grease. Lightly oil pinion and all bearing surfaces.

Fig 1: Exploded View of Direct Drive Starter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View of Gear Reduction Starter (Conquest)

Courtesy of CHRYSLER MOTORS.

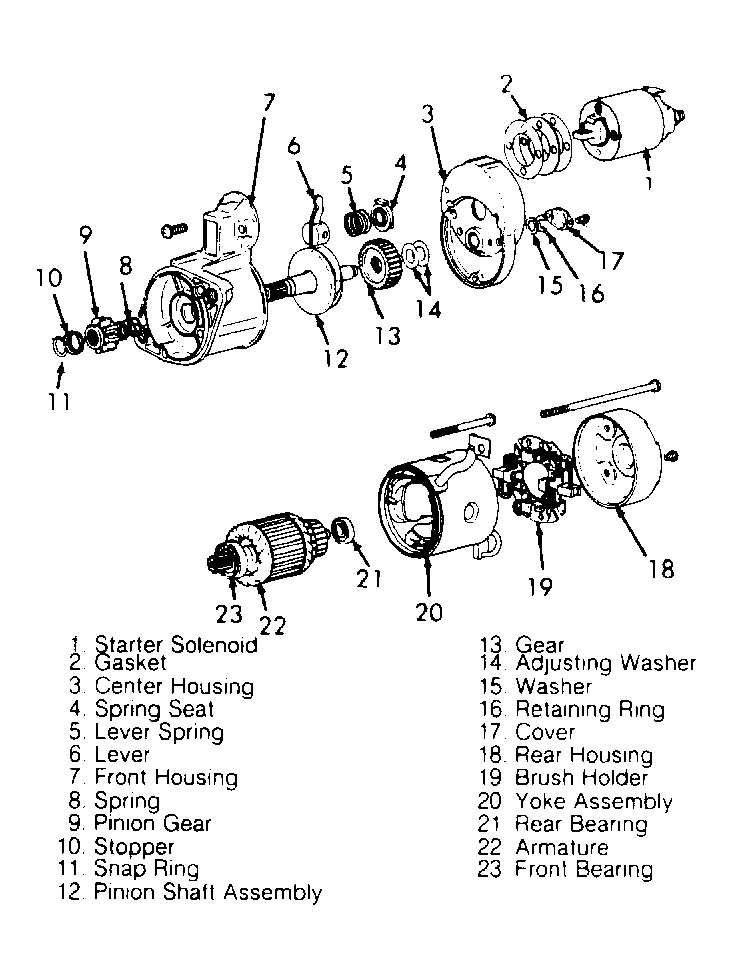

Fig 3: Exploded View of Gear Reduction Starter (All Others)

Courtesy of CHRYSLER MOTORS.
