Pinion Gap Check
- Disconnect field coil wire from terminal "M" at starter solenoid. SeeFigure. Connect jumper wire between positive battery terminal of 12-volt battery and terminal "S" of starter solenoid.

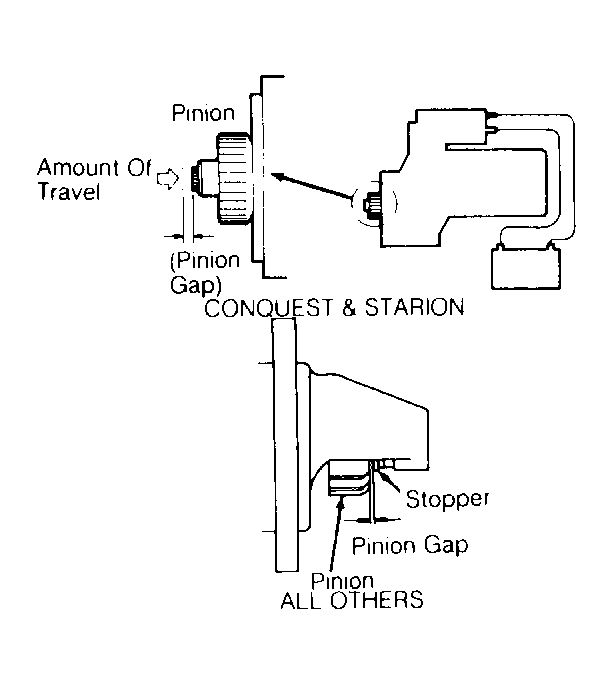

- Connect a second jumper wire from negative battery terminal and touch terminal "M" of starter solenoid. See Figure. Measure clearance between pinion and stopper. See Fig 1.
- Clearance should be within specification. Refer to the STARTER SPECIFICATIONS table. Adjust clearance by adding or removing gaskets between solenoid and front housing.
