Dr-6: Code 15 Motor Position Sensor Circuit

Fig 1: Circuit Diagram DR-6 (1.5L)
G90I15378

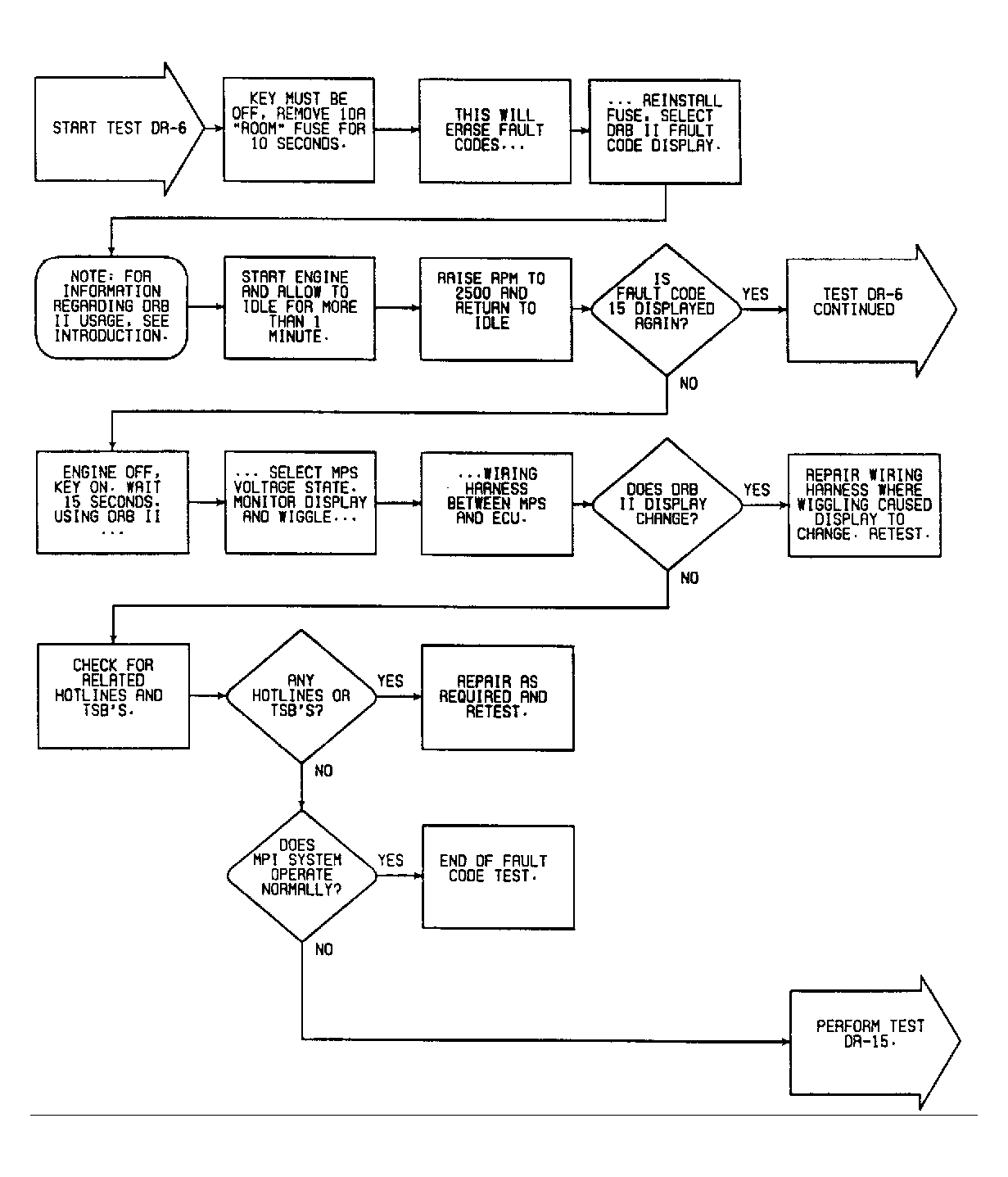

Fig 2: Flow Chart DR-6 (1.5L) (1 of 2)
G90J15445

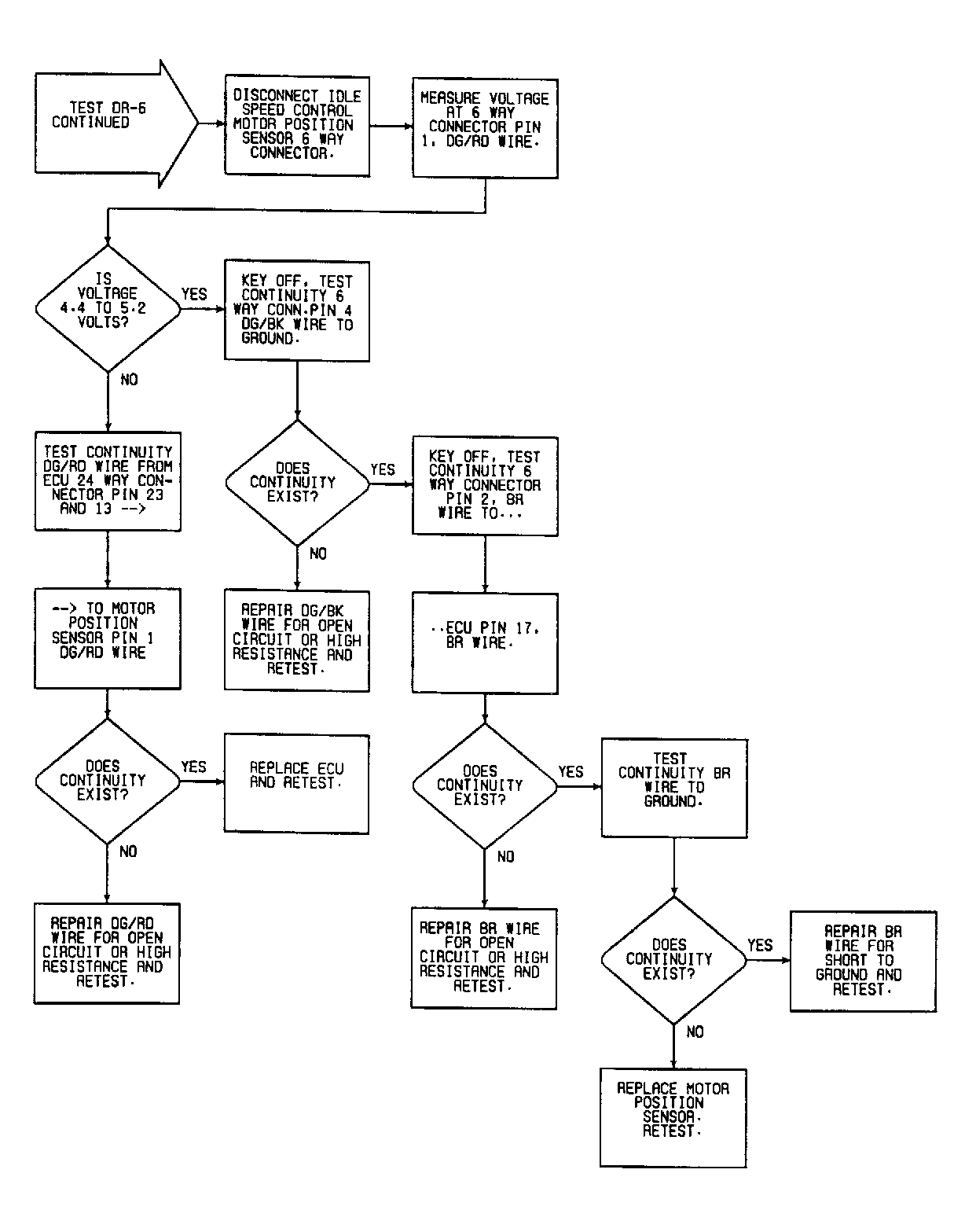

Fig 3: Flow Chart DR-6 (1.5L) (2 of 2)
G90A15446
