NS-1: Testing Ignition Circuit

Fig 1: Circuit Diagram NS-1 (1.5L) (1 of 2)

G90G15368

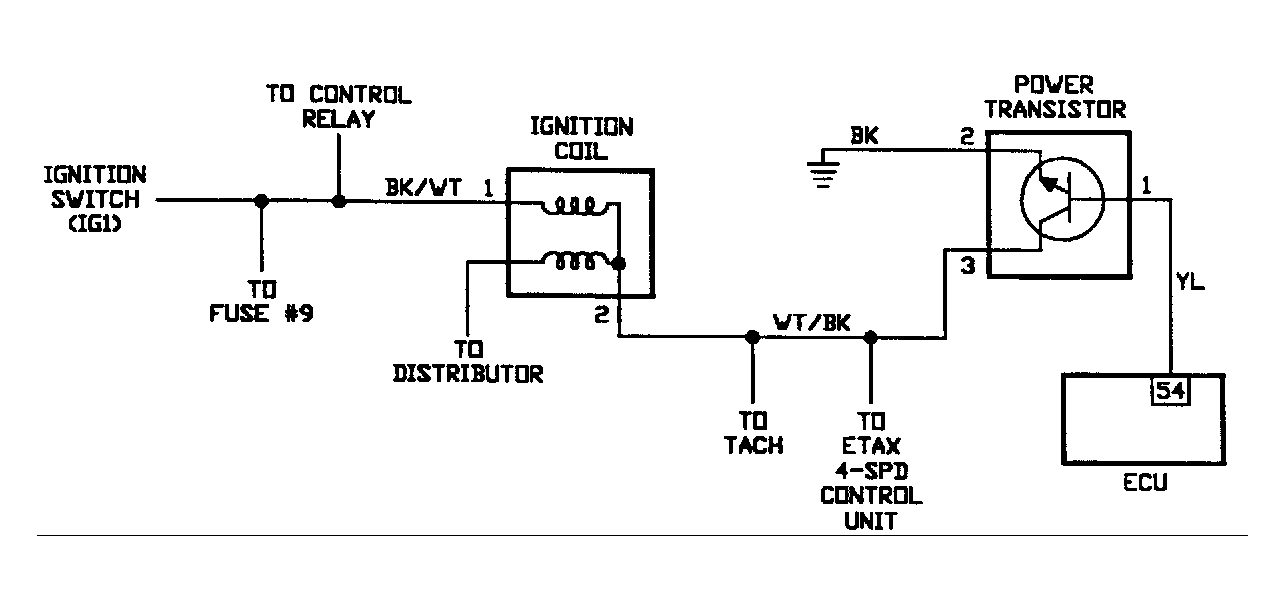

Fig 2: Circuit Diagram NS-1 (1.5L) (2 of 2)

G90H15369

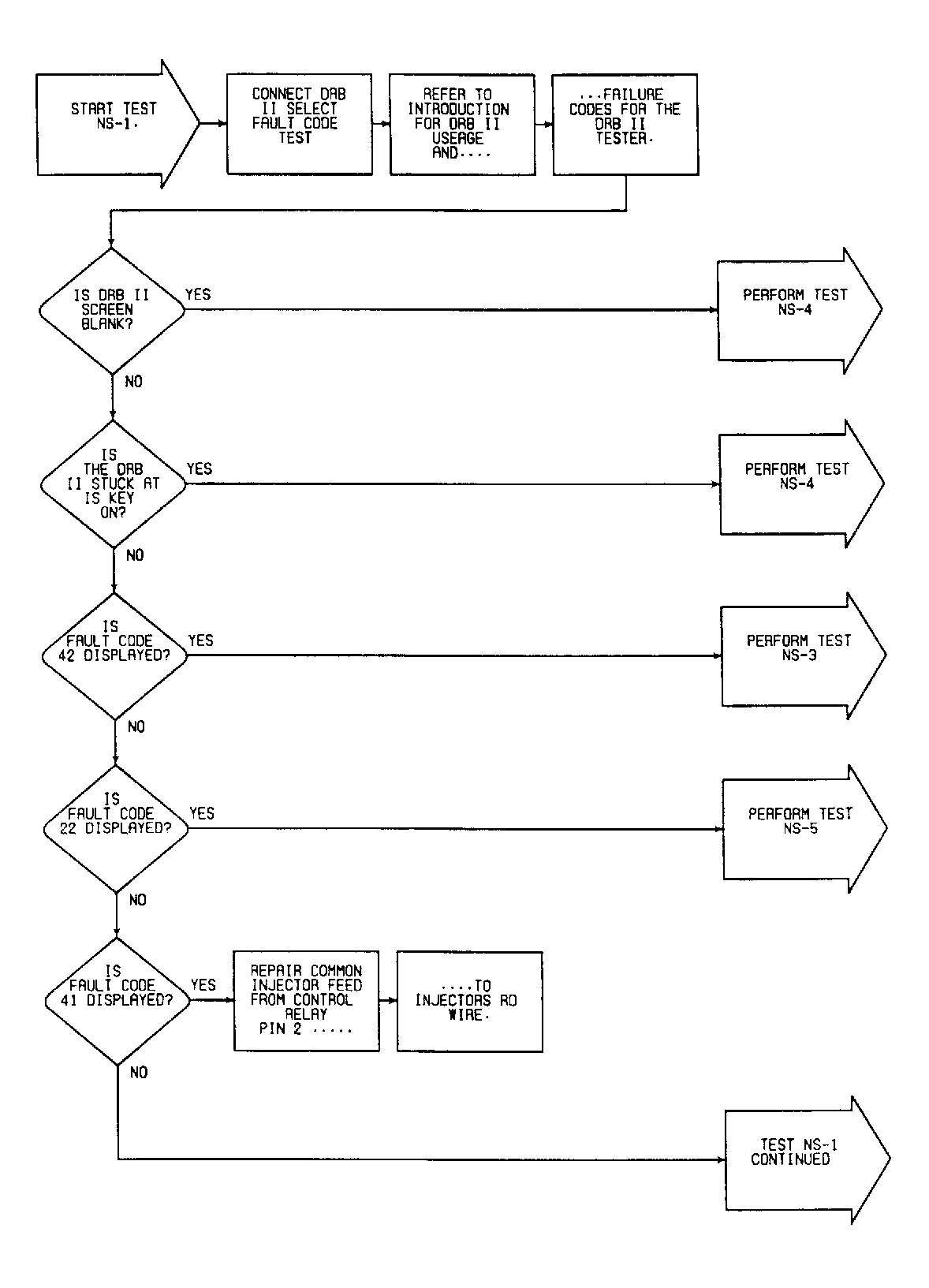

Fig 3: Flow Chart NS-1 (1.5L) (1 of 3)

G90H15427

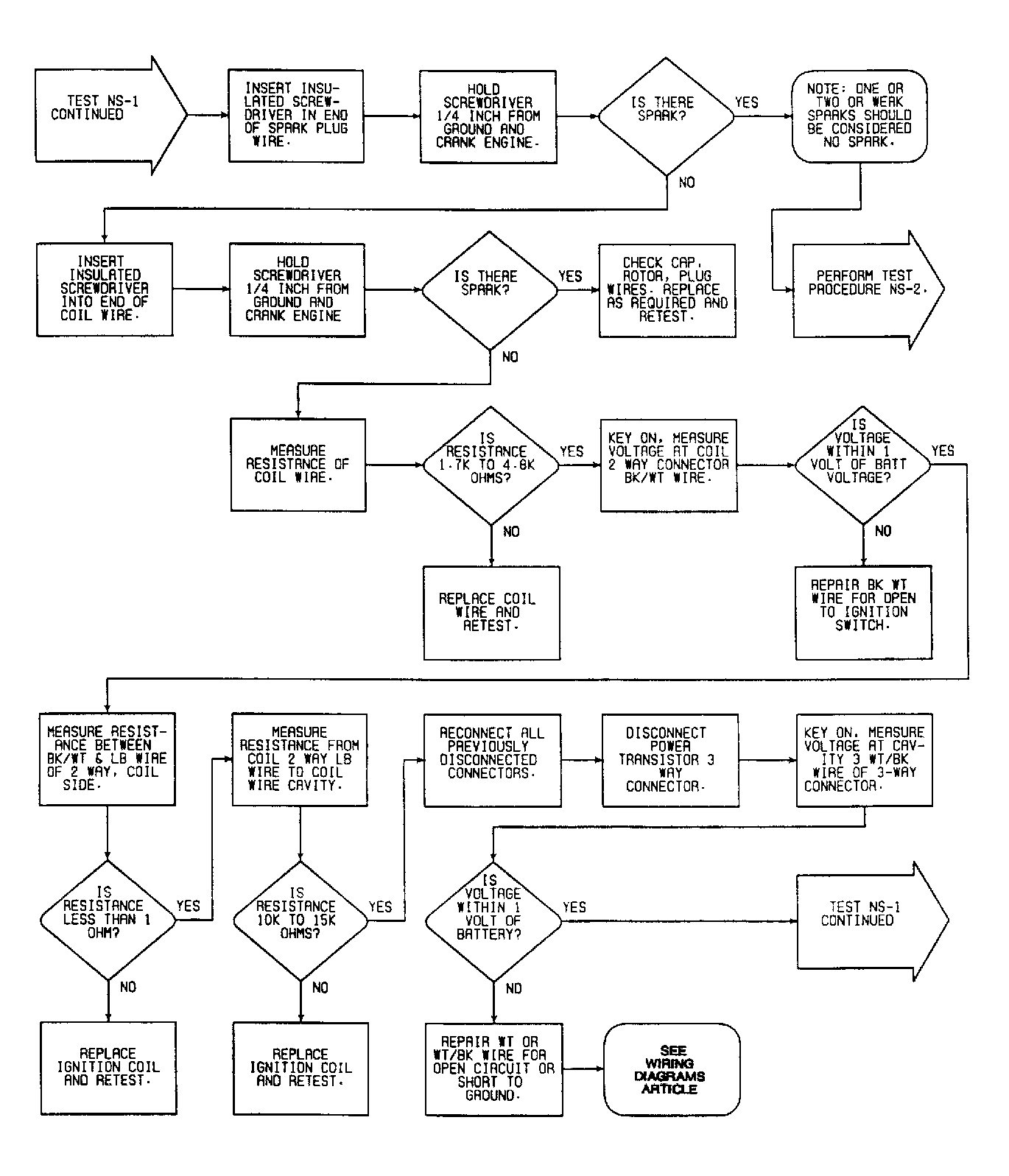

Fig 4: Flow Chart NS-1 (1.5L) (2 of 3)

G90I15428

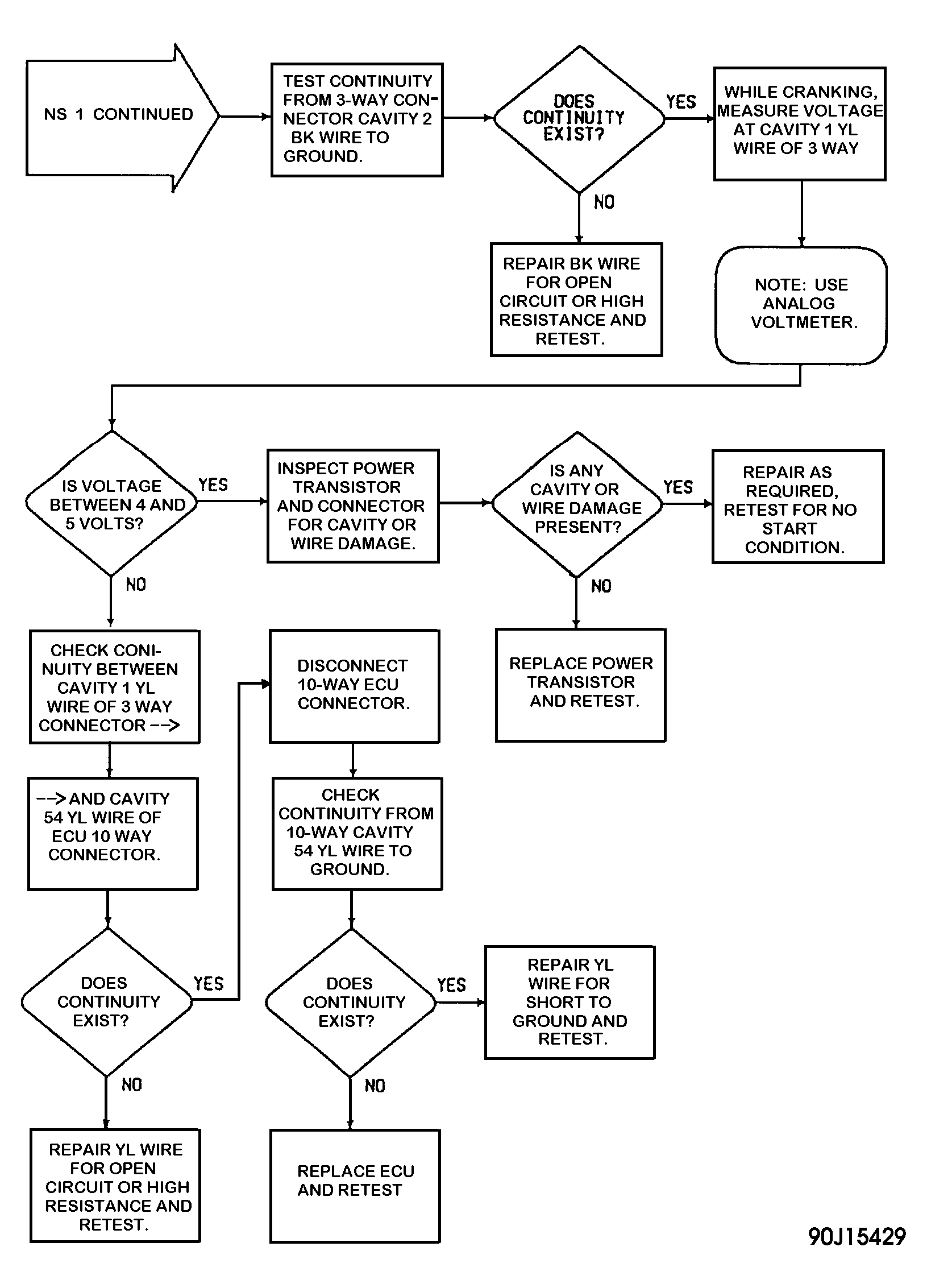

Fig 5: Flow Chart NS-1 (1.5L) (3 of 3)

G90J15429
