Dr-16: No Fault Code Tests

Fig 1: Circuit Diagram DR-16 (1.6L)

G90G15418

Fig 2: Circuit Diagram DR-16 (1.6L)

G90H15419

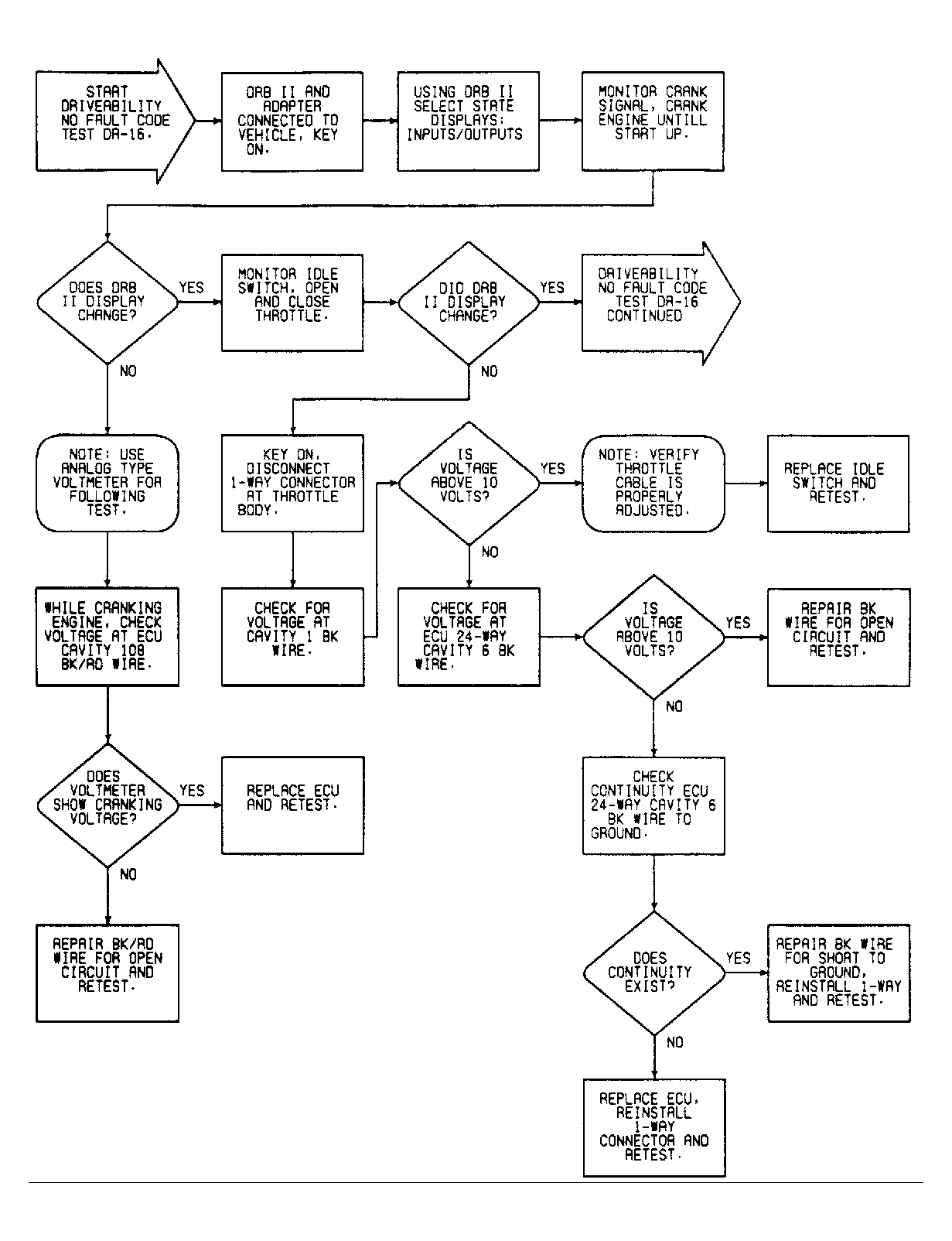

Fig 3: Flow Chart DR-16 (1.6L) (1 of 3)

G90F19963

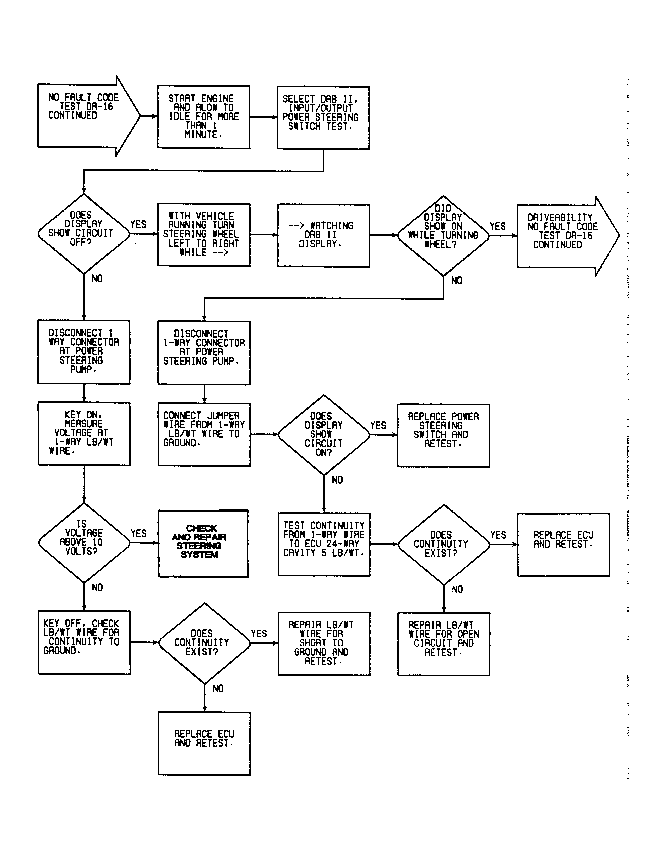

Fig 4: Flow Chart DR-16 (1.6L) (2 of 3)

G90G19964

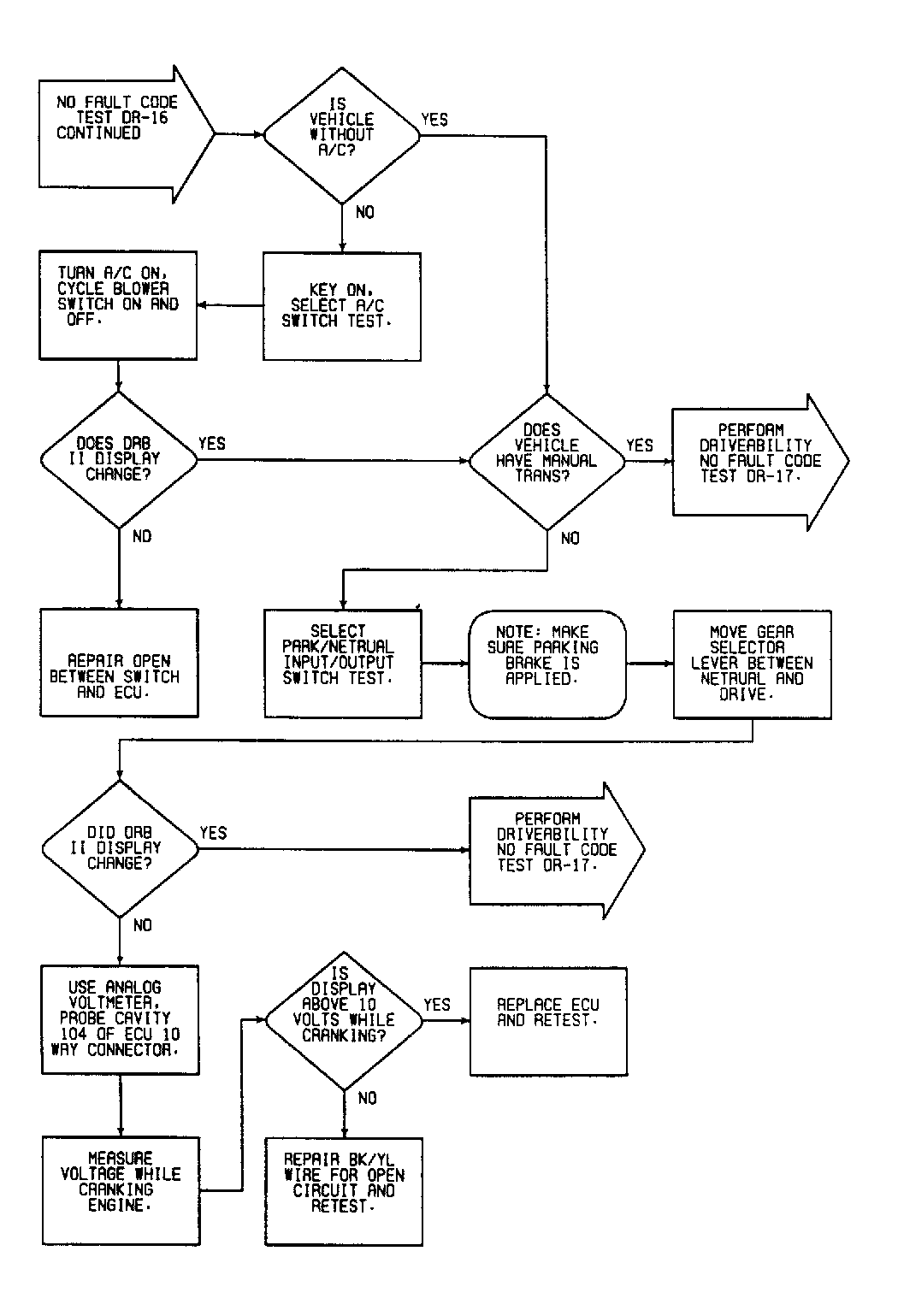

Fig 5: Flow Chart DR-16 (1.6L) (3 of 3)

G90H19965
