Dr-2: Fault Code Tests

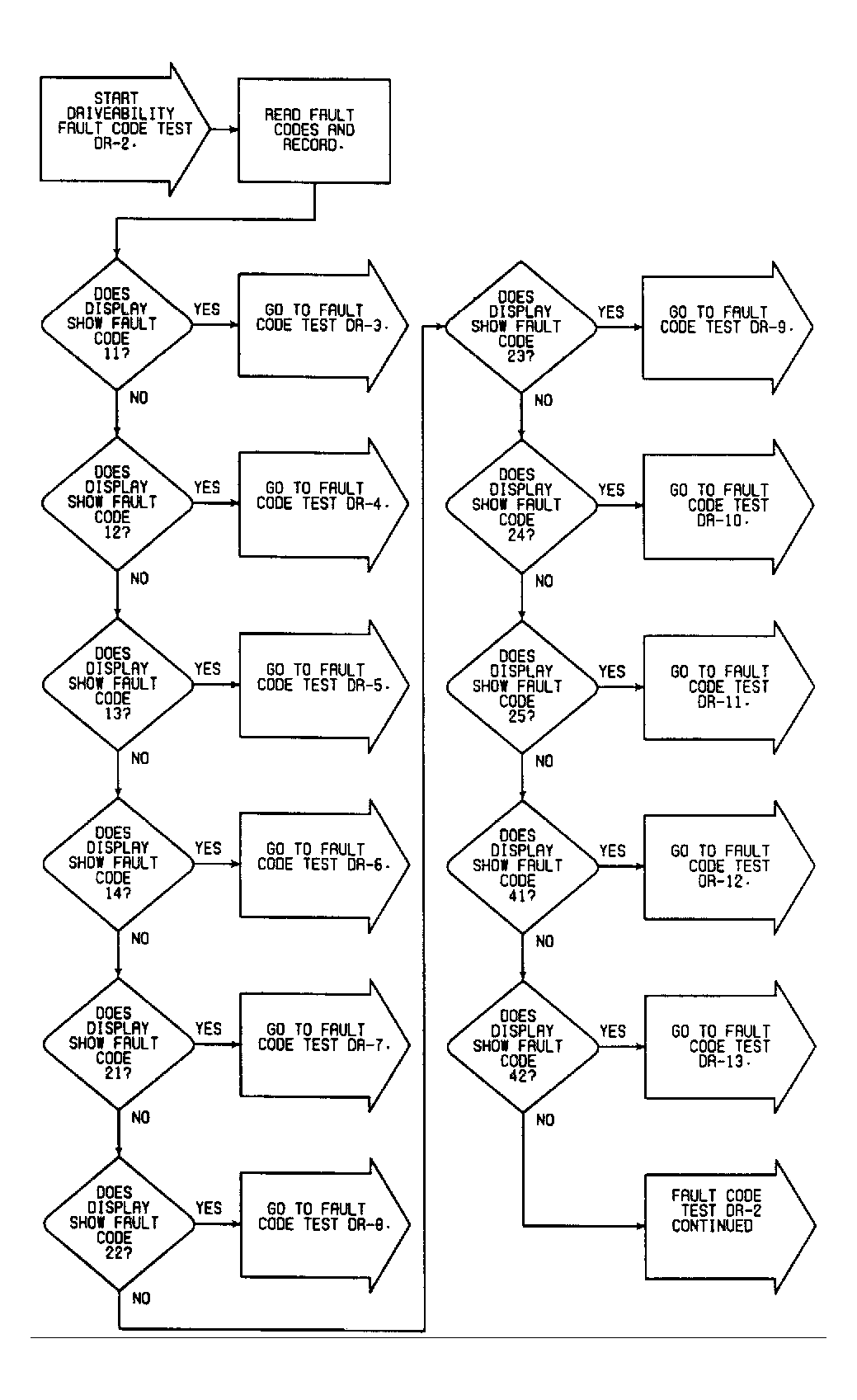

Fig 1: Flow Chart DR-2 (1.6L) (1 of 2)

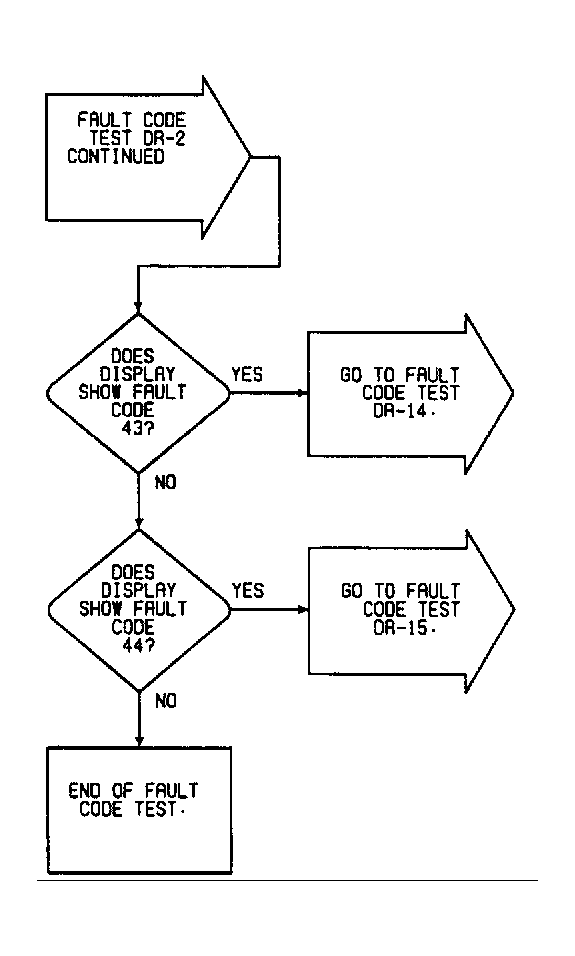

Fig 2: Flow Chart DR-2 (1.6L) (2 of 2)
