Dr-4: Code 12 Airflow Sensor Circuit

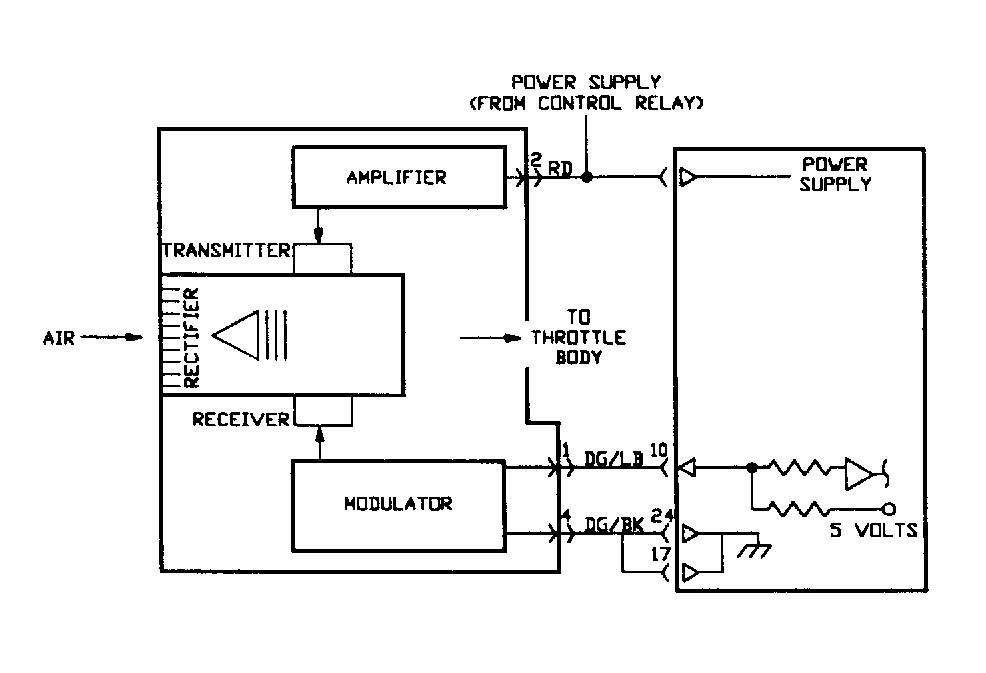

Fig 1: Circuit Diagram DR-4 (1.6L)

G90B15405

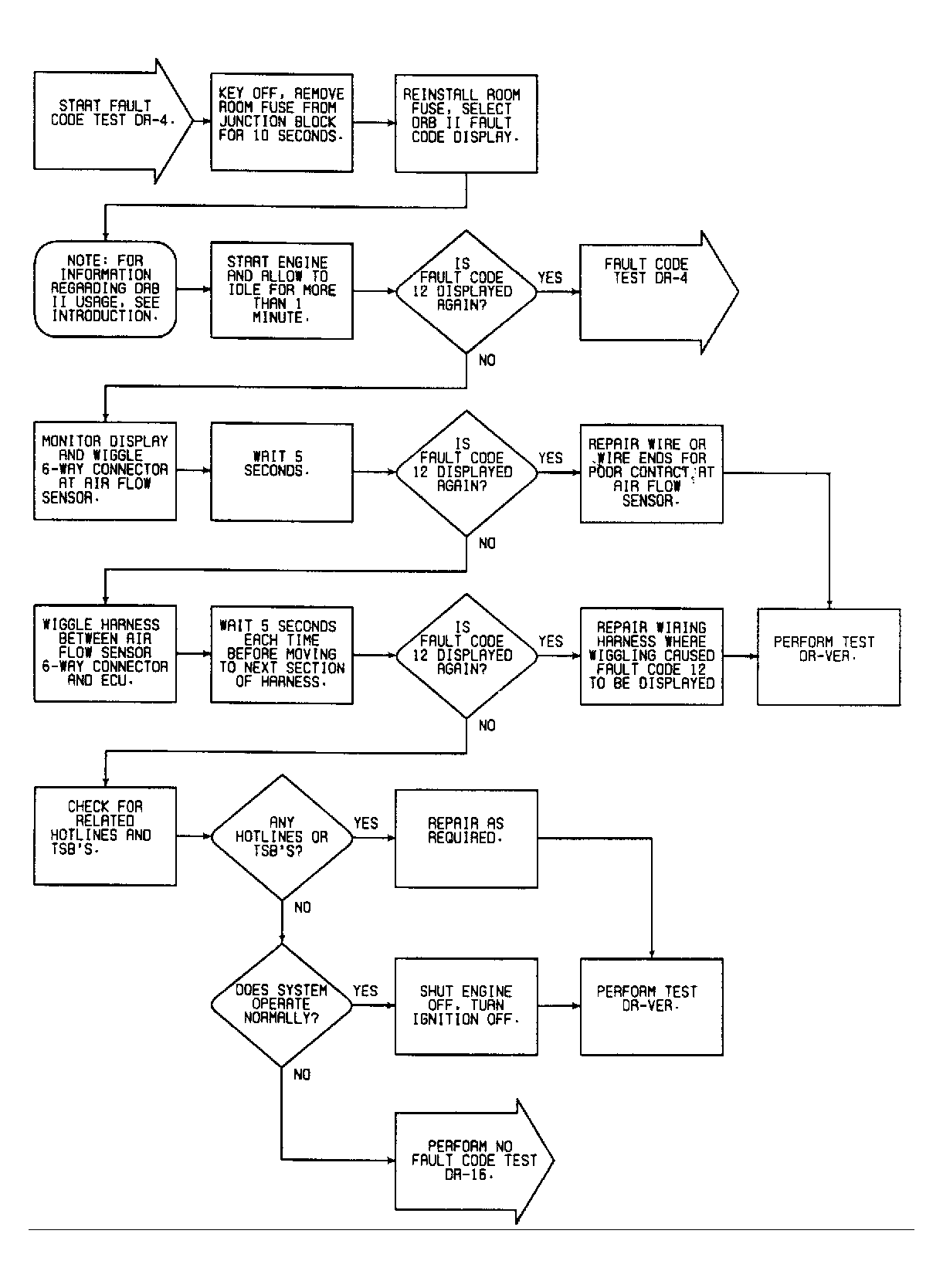

Fig 2: Flow Chart DR-4 (1.6L) (1 of 3)

G90I19933

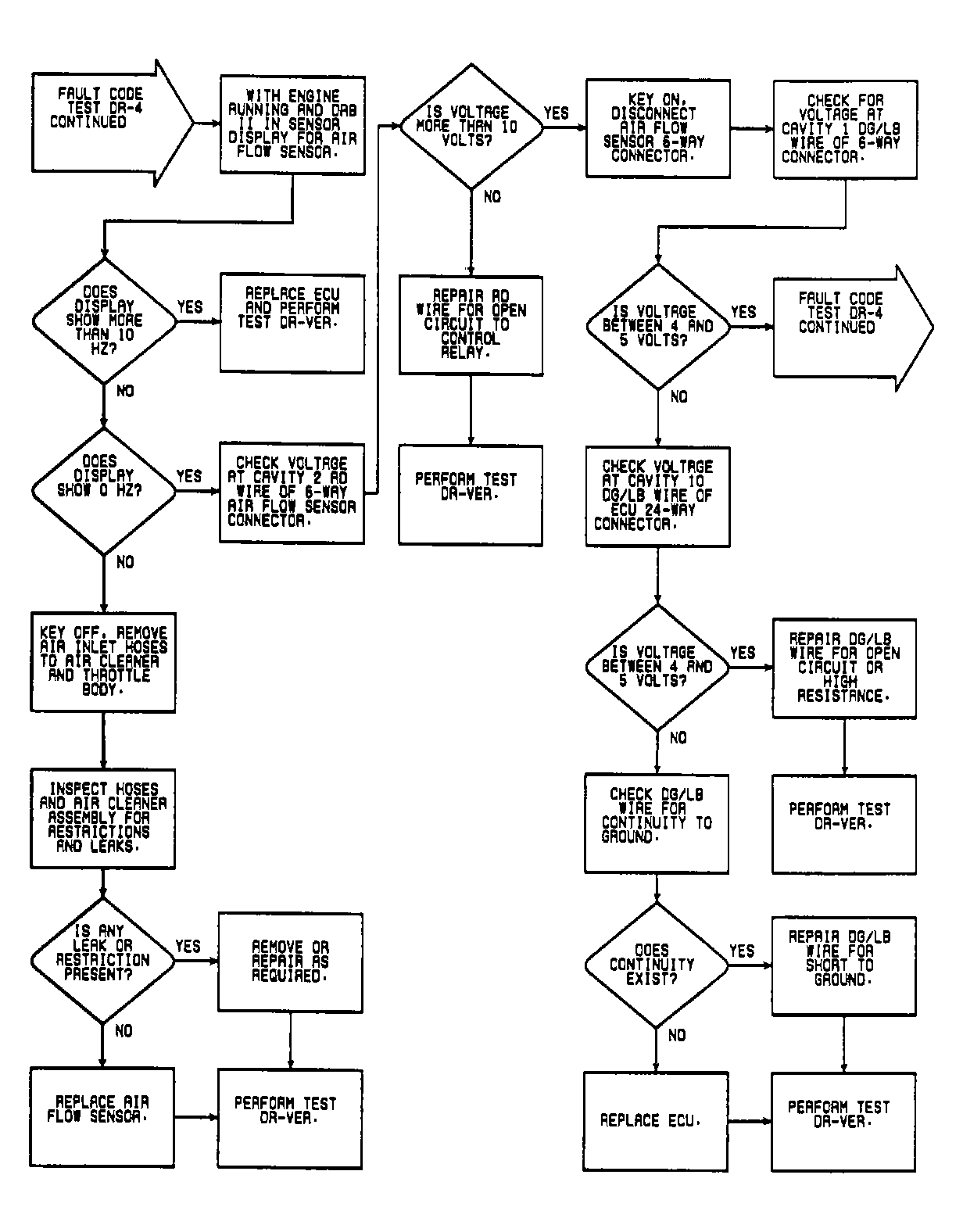

Fig 3: Flow Chart DR-4 (1.6L) (2 of 3)

G90J19934

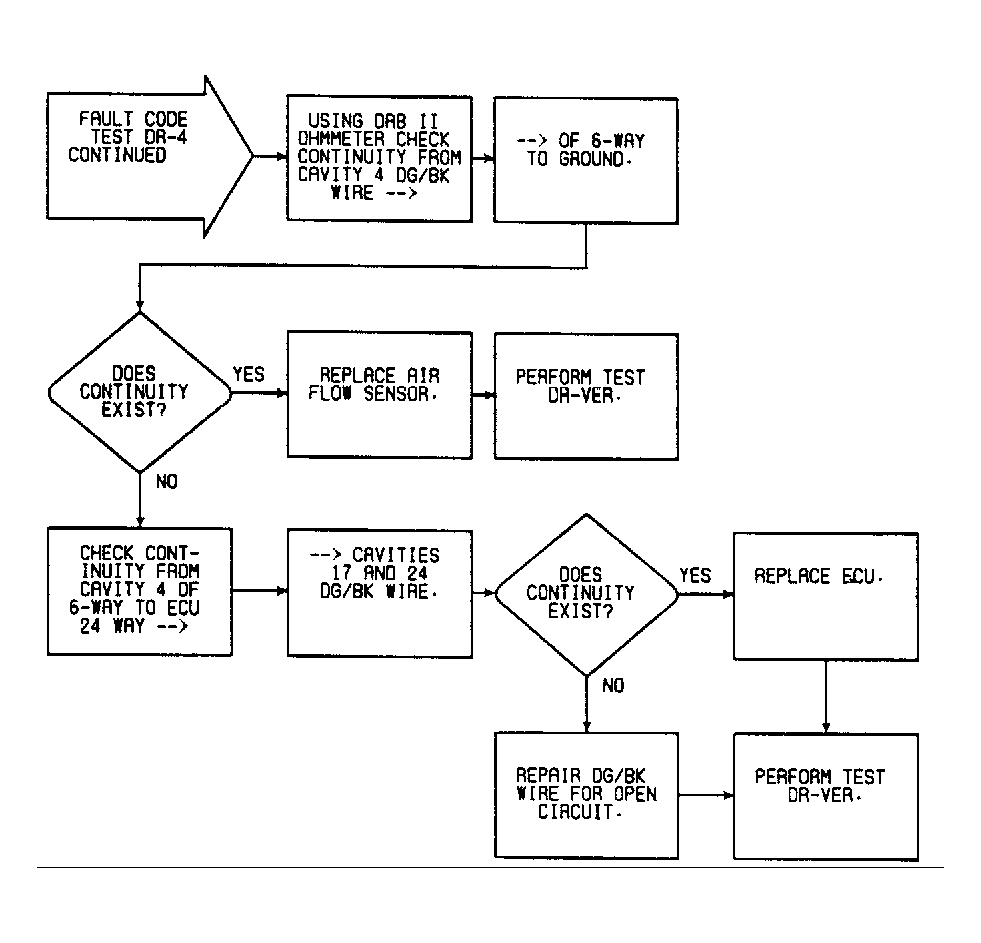

Fig 4: Flow Chart DR-4 (1.6L) (3 of 3)

G90A19935
