NS-1: Testing Ignition Circuit

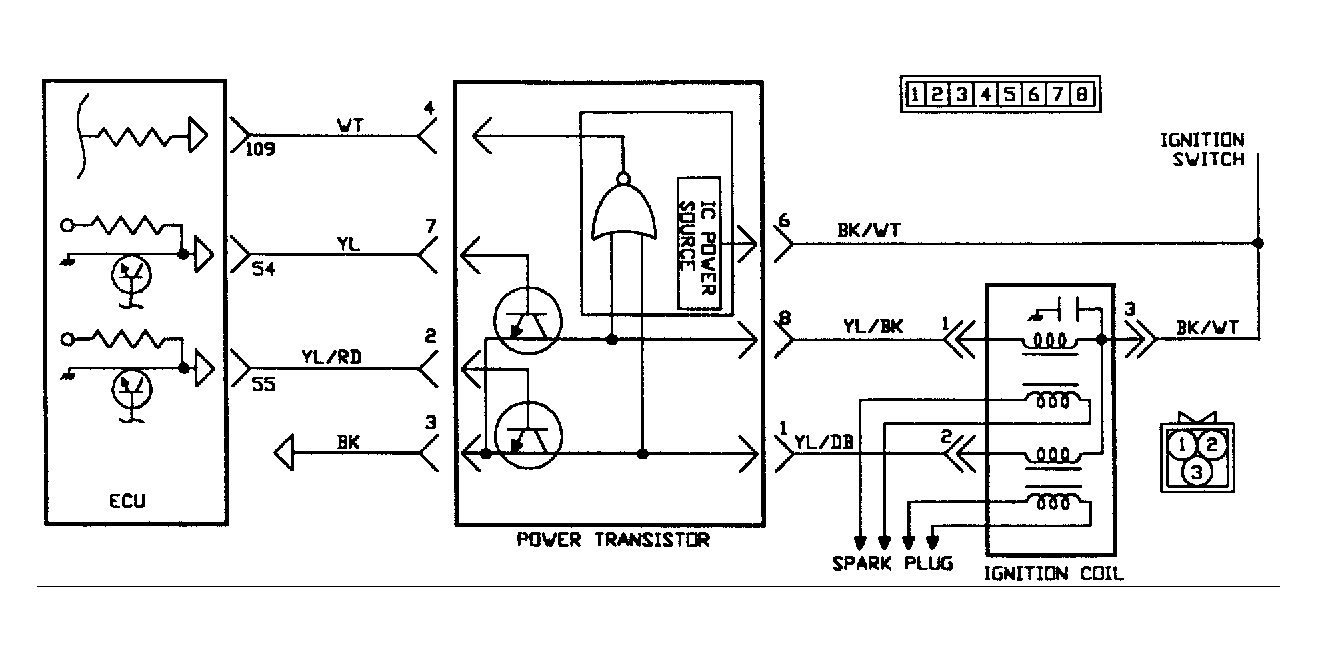

Fig 1: Circuit Diagram NS-1 (1.6L)

G90J15395

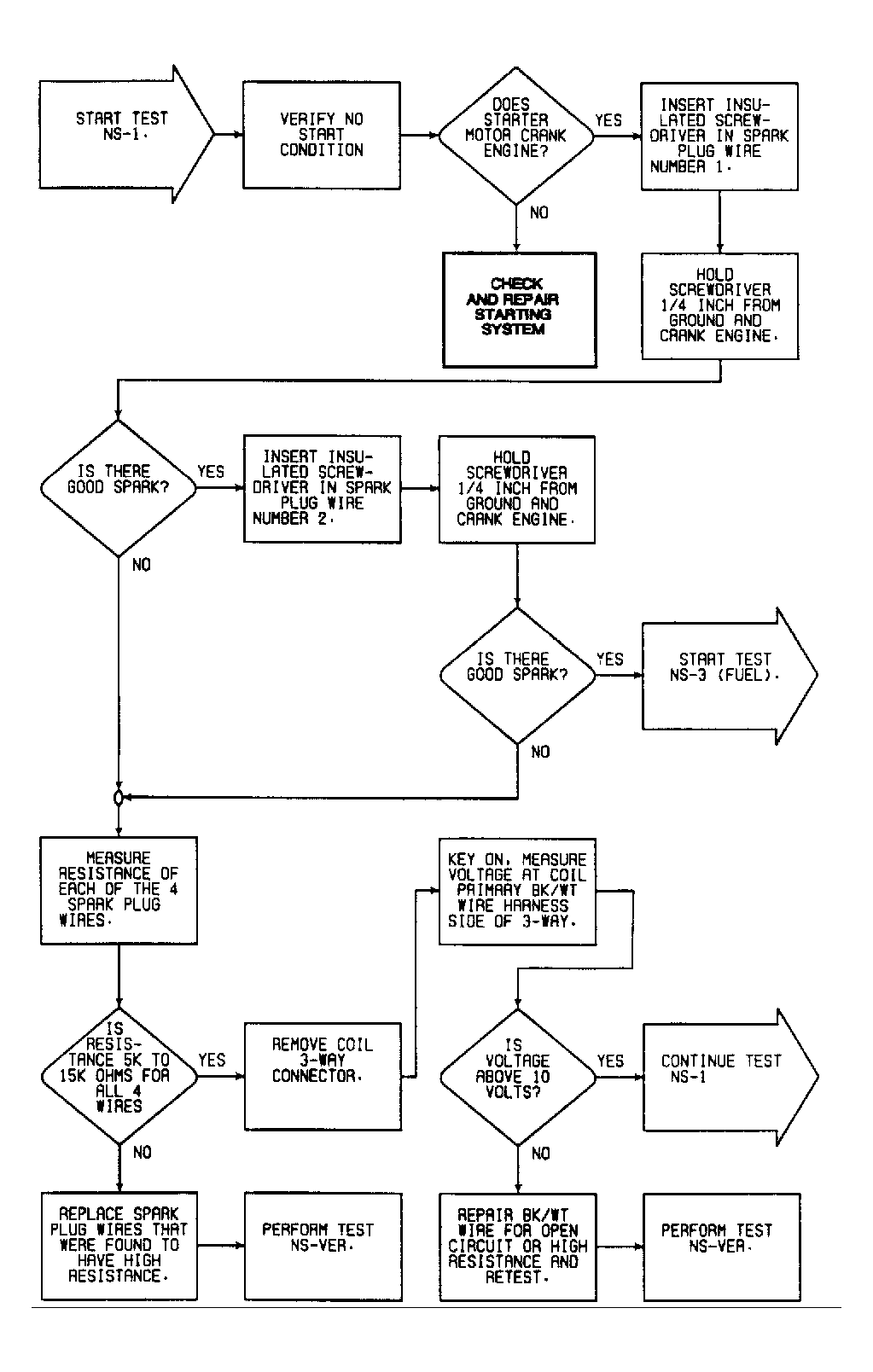

Fig 2: Flow Chart NS-1 (1.6L)

G90I15469

Fig 3: Circuit Diagram NS-1 (1.6L)

G90A15396

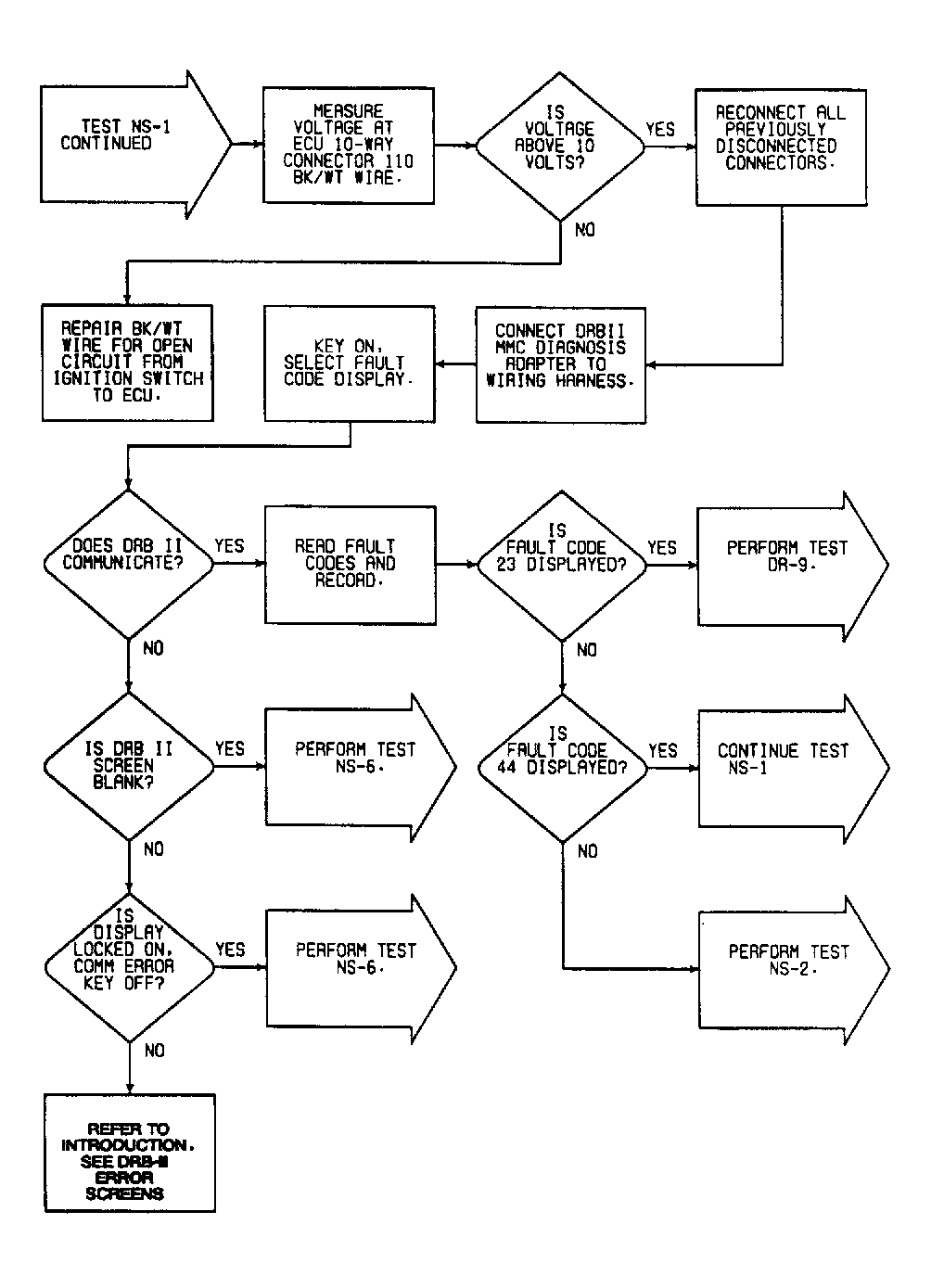

Fig 4: Flow Chart NS-1 (1.6L) (1 of 4)

G90G19915

Fig 5: Flow Chart NS-1 (1.6L) (2 of 4)

G90H19916

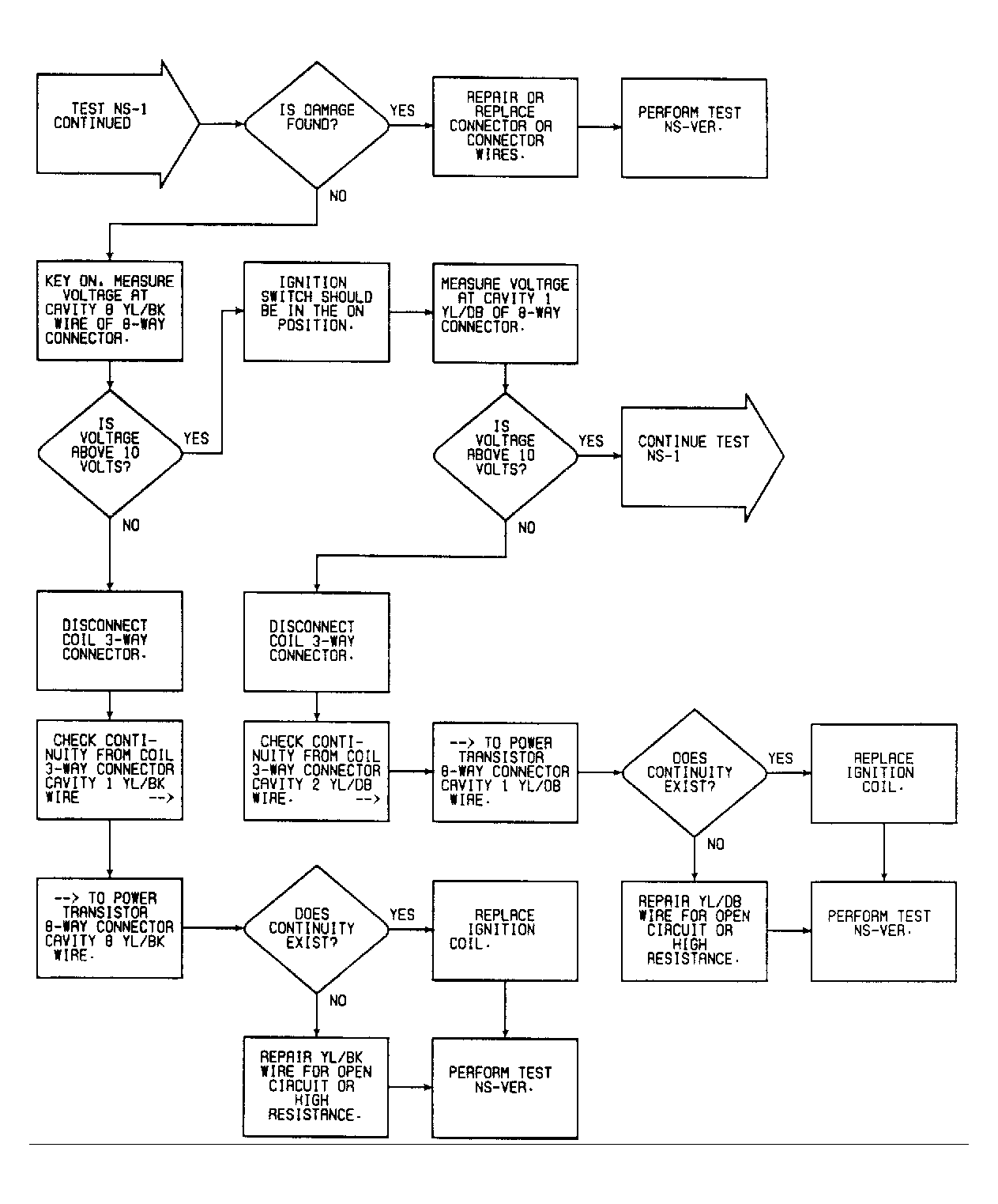

Fig 6: Flow Chart NS-1 (1.6L) (3 of 4)

G90I19917

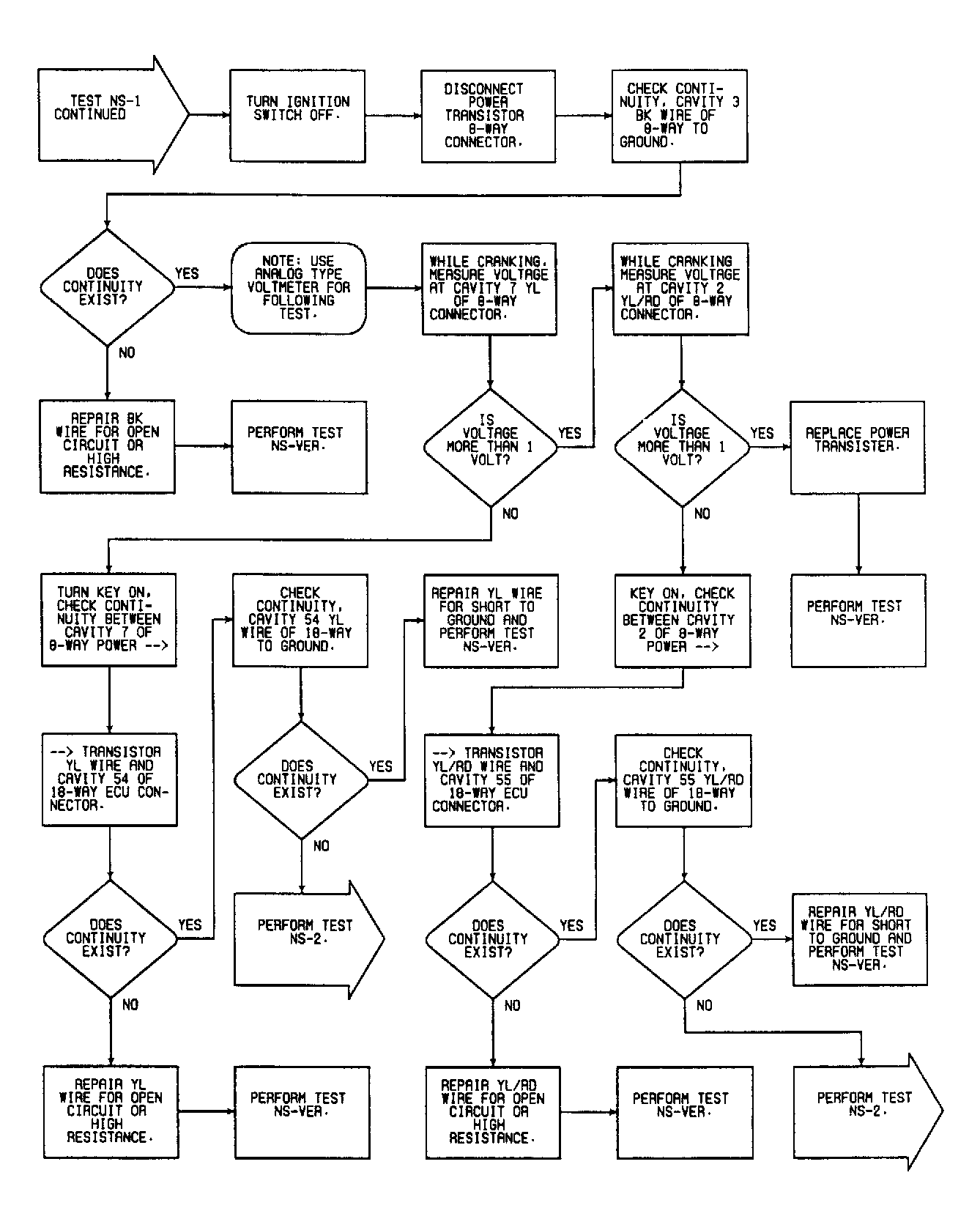

Fig 7: Flow Chart NS-1 (1.6L) (4 of 4)

G90J19918
