Dr-5: Code 14 Throttle Position Sensor Circuit

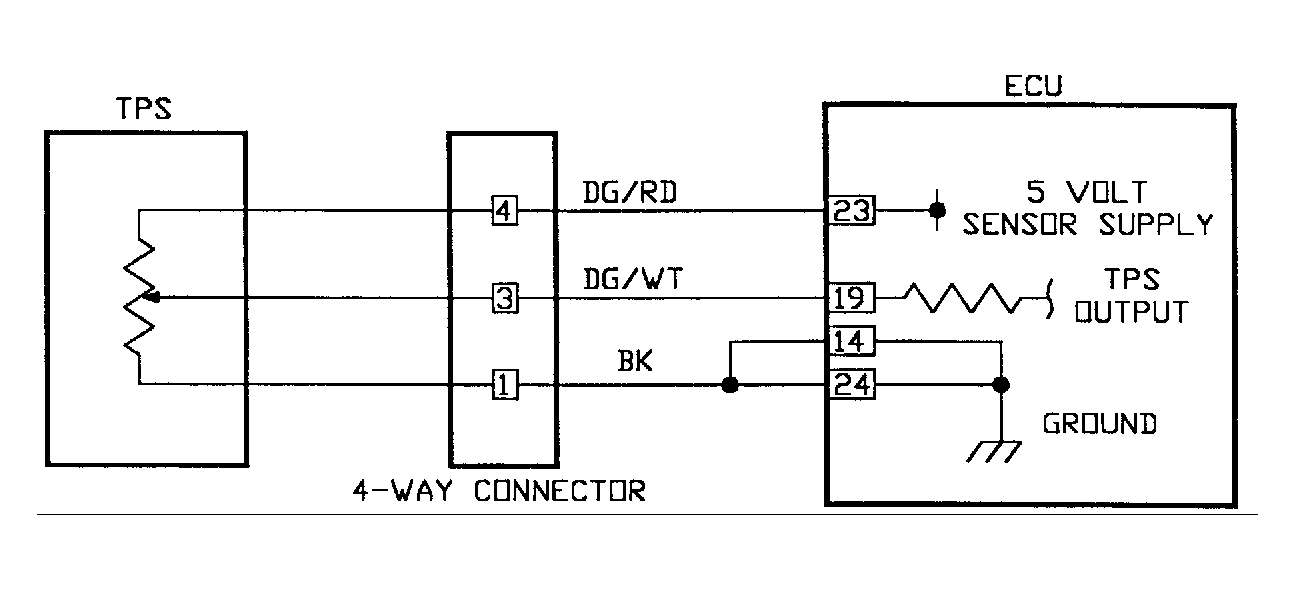

Fig 1: Circuit Diagram DR-5 (1.8L)
G90H20146

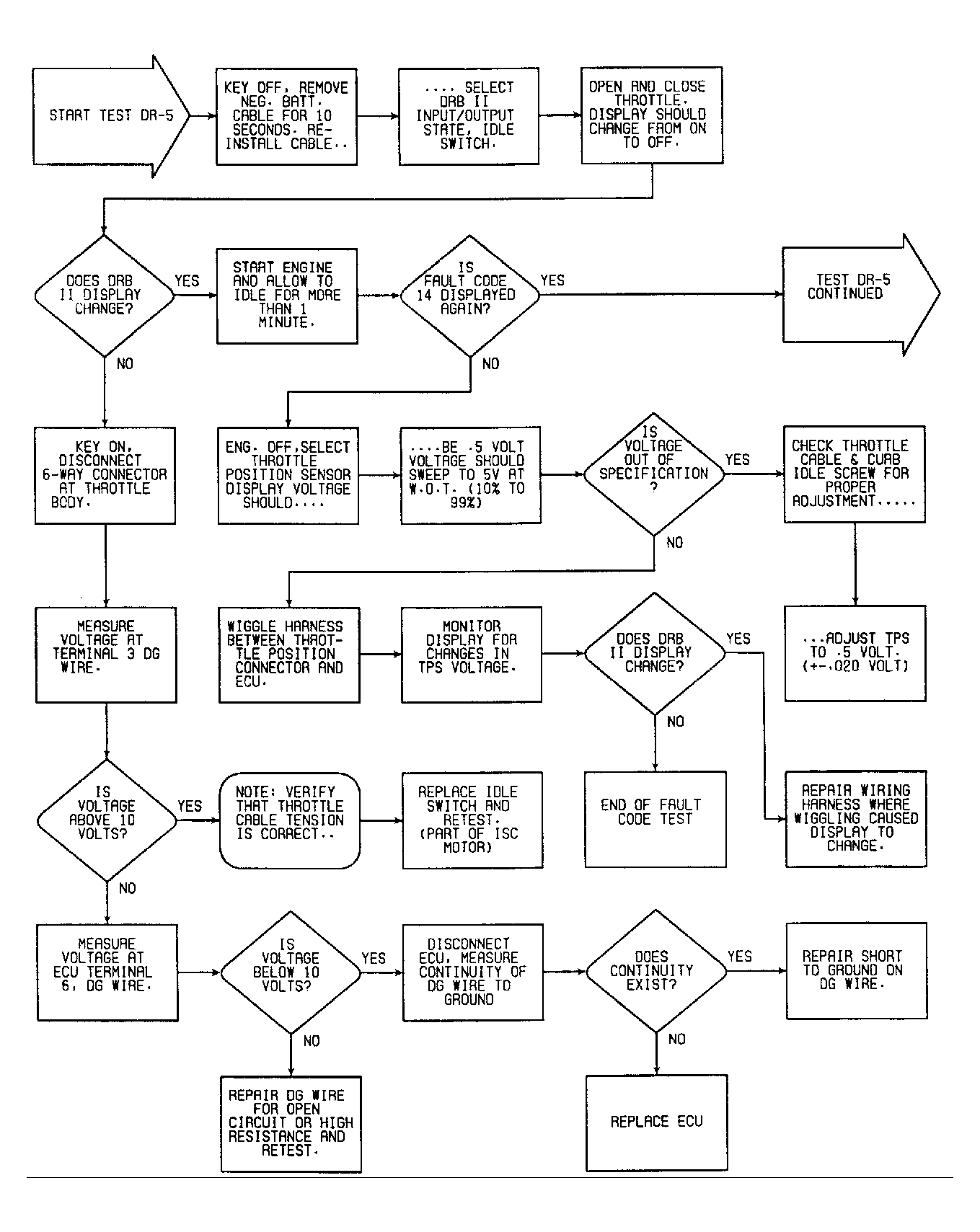

Fig 2: Flow Chart DR-5 (1.8L) (1 of 2)
G90C02095
Fig 3: Flow Chart DR-5 (1.8L) (2 of 2)
G90E02096
