NS-1: Testing Ignition Circuit

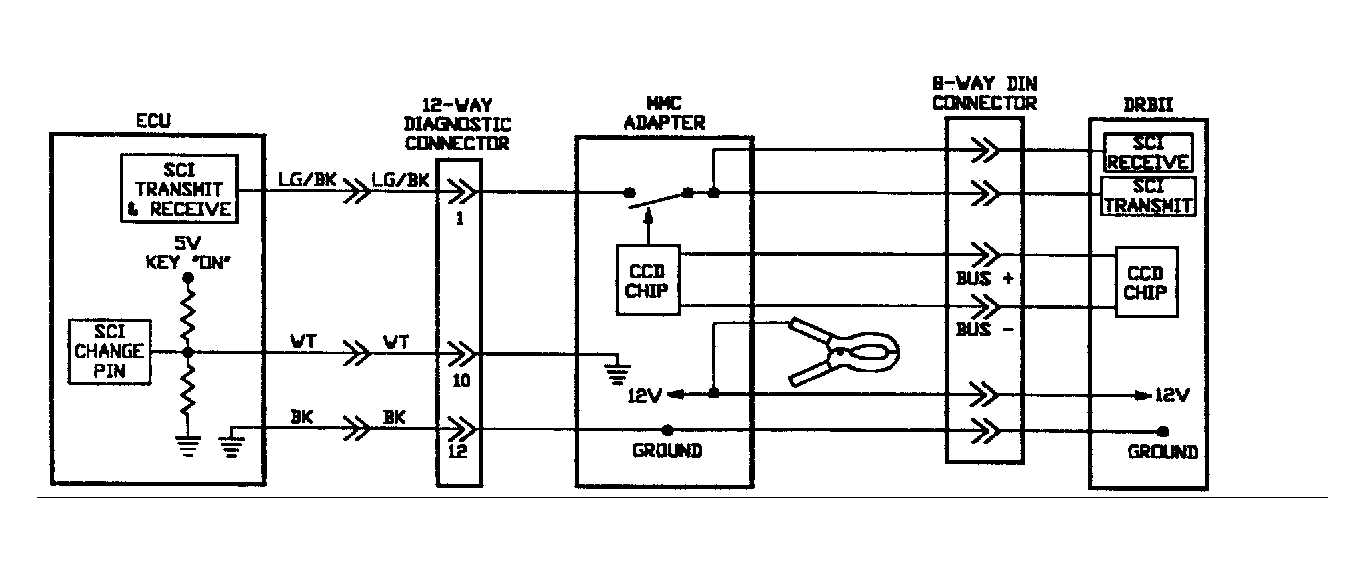

Fig 1: Circuit Diagram NS-1 (1.8L) (1 Of 2)

G90G20137

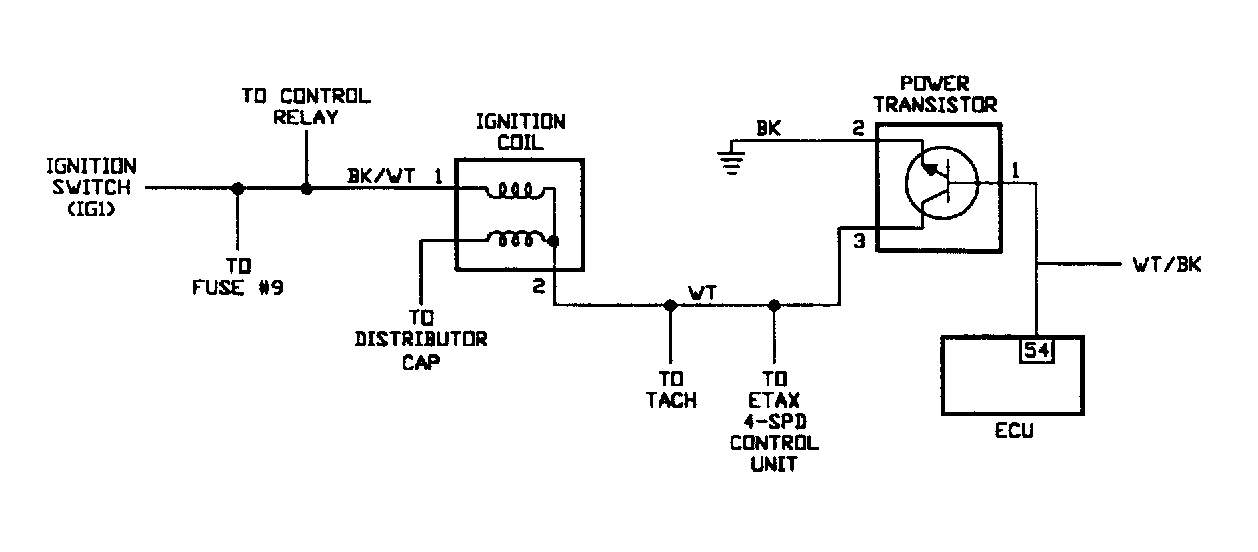

Fig 2: Circuit Diagram NS-1 (1.8L) (2 Of 2)

G90H20138

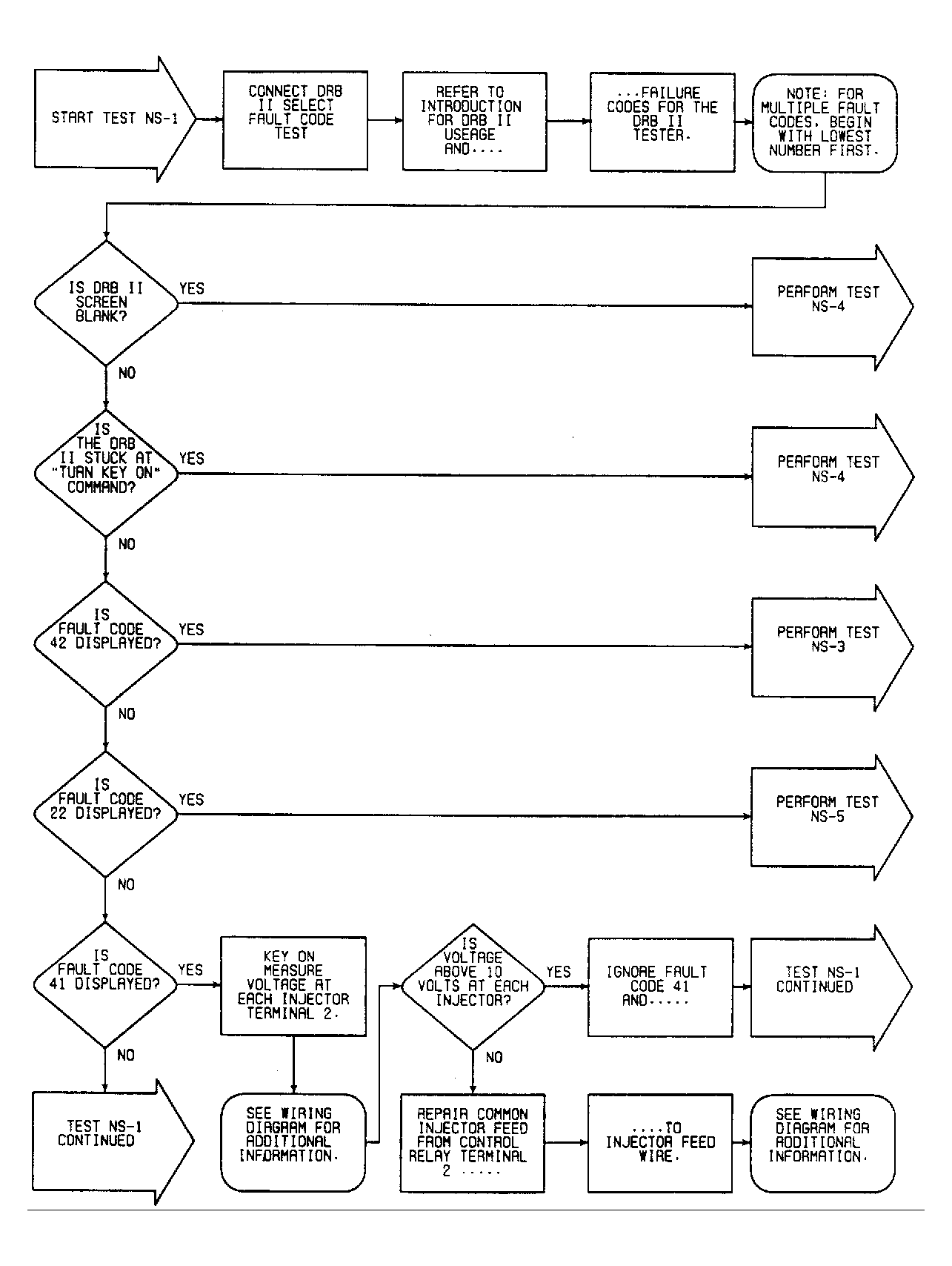

Fig 3: Flow Chart NS-1 (1.8L) (1 of 3)

G90G06967

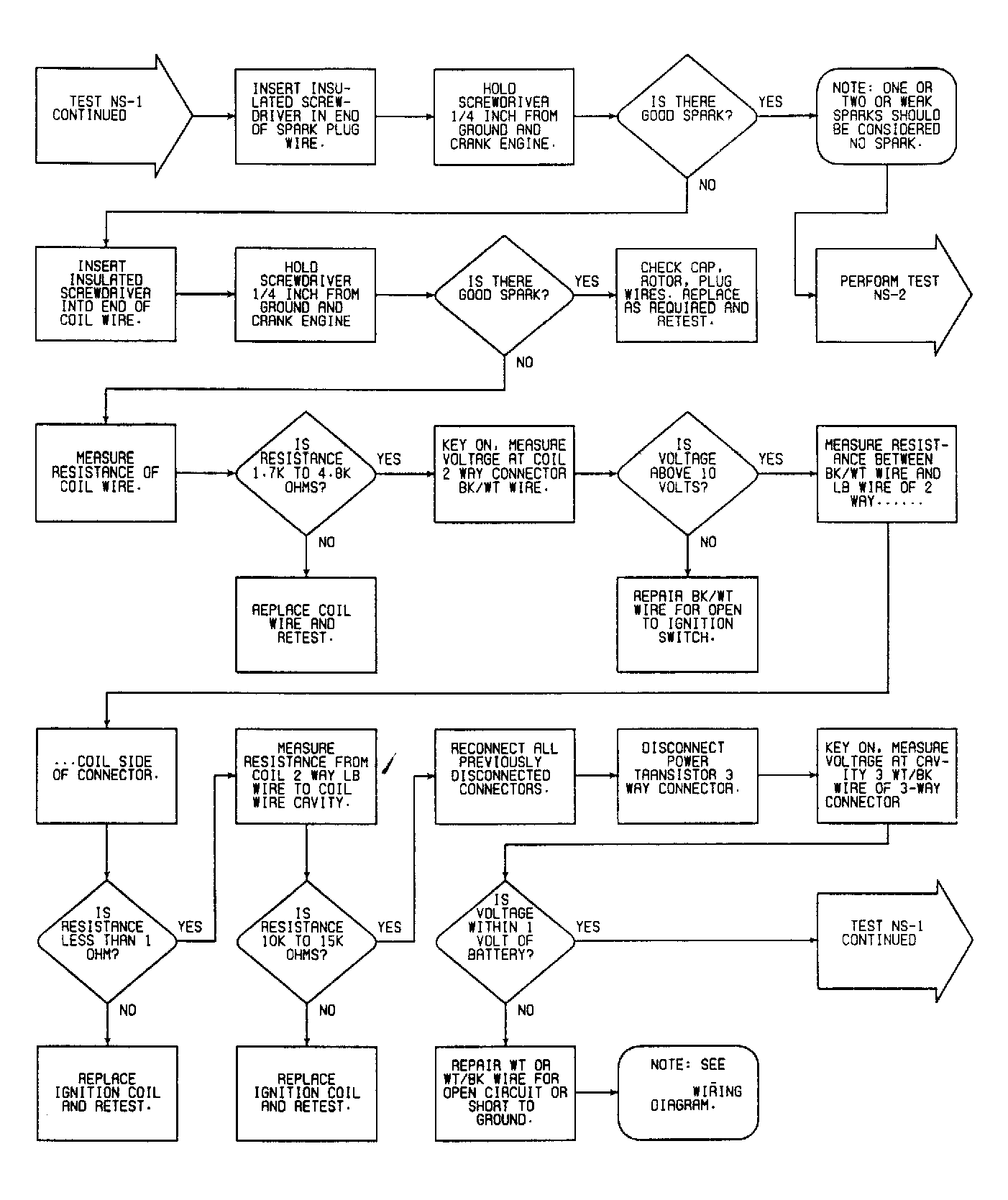

Fig 4: Flow Chart NS-1 (1.8L) (2 of 3)

G90A02080

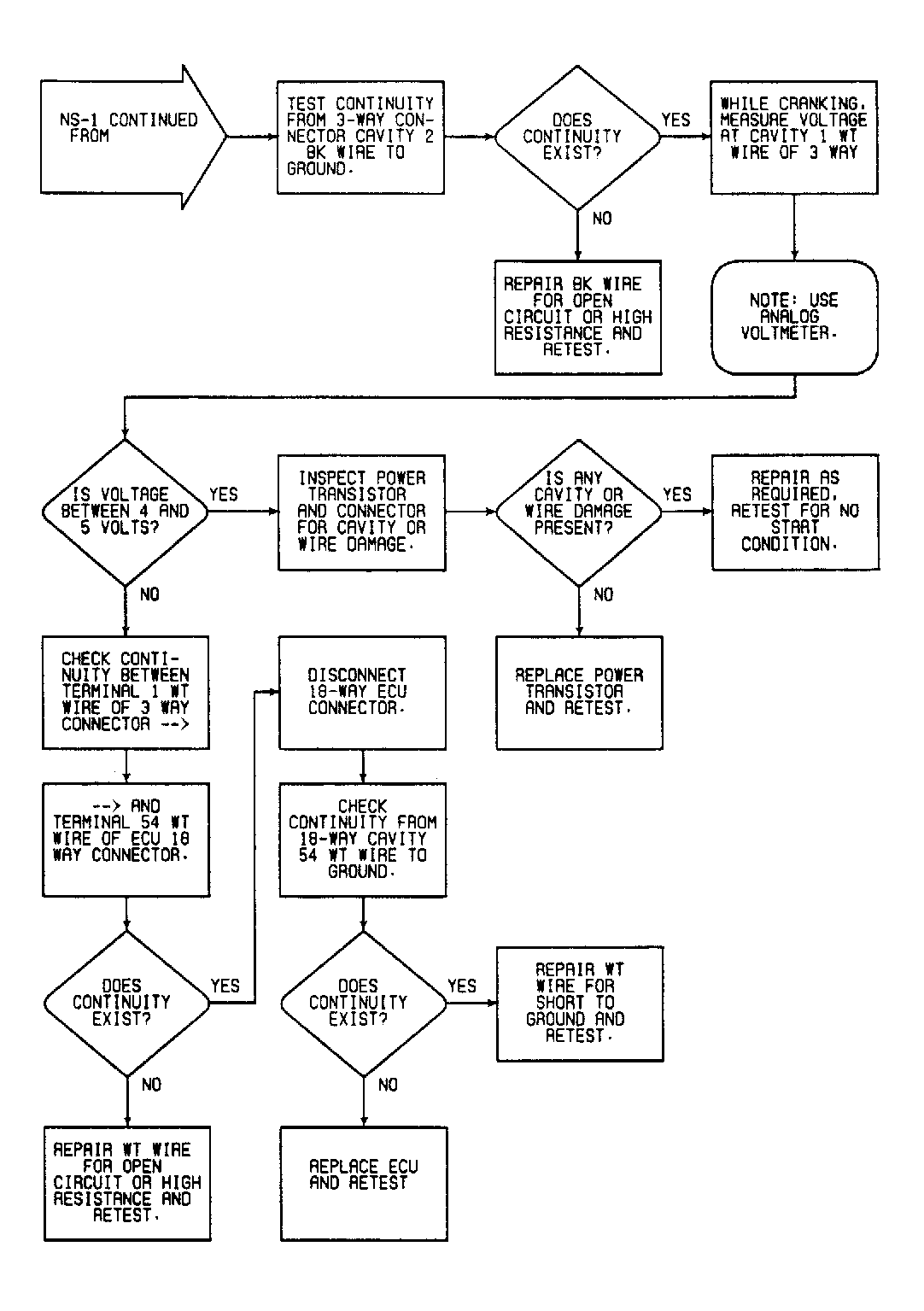

Fig 5: Flow Chart NS-1 (1.8L) (3 of 3)

G90C02081
