Dr-10: Checking TDC Sensor

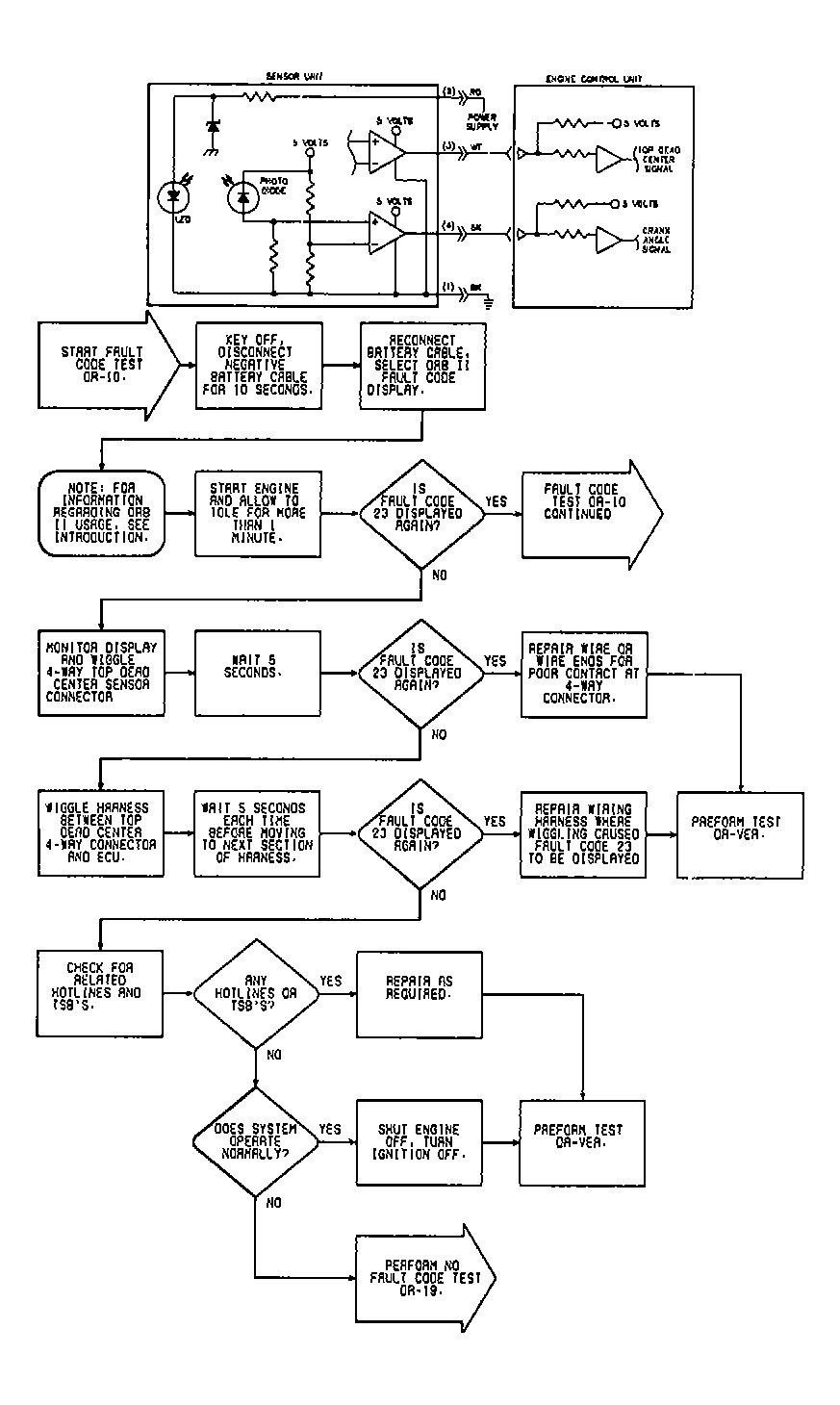

Fig 1: DR-10 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
G90B12683

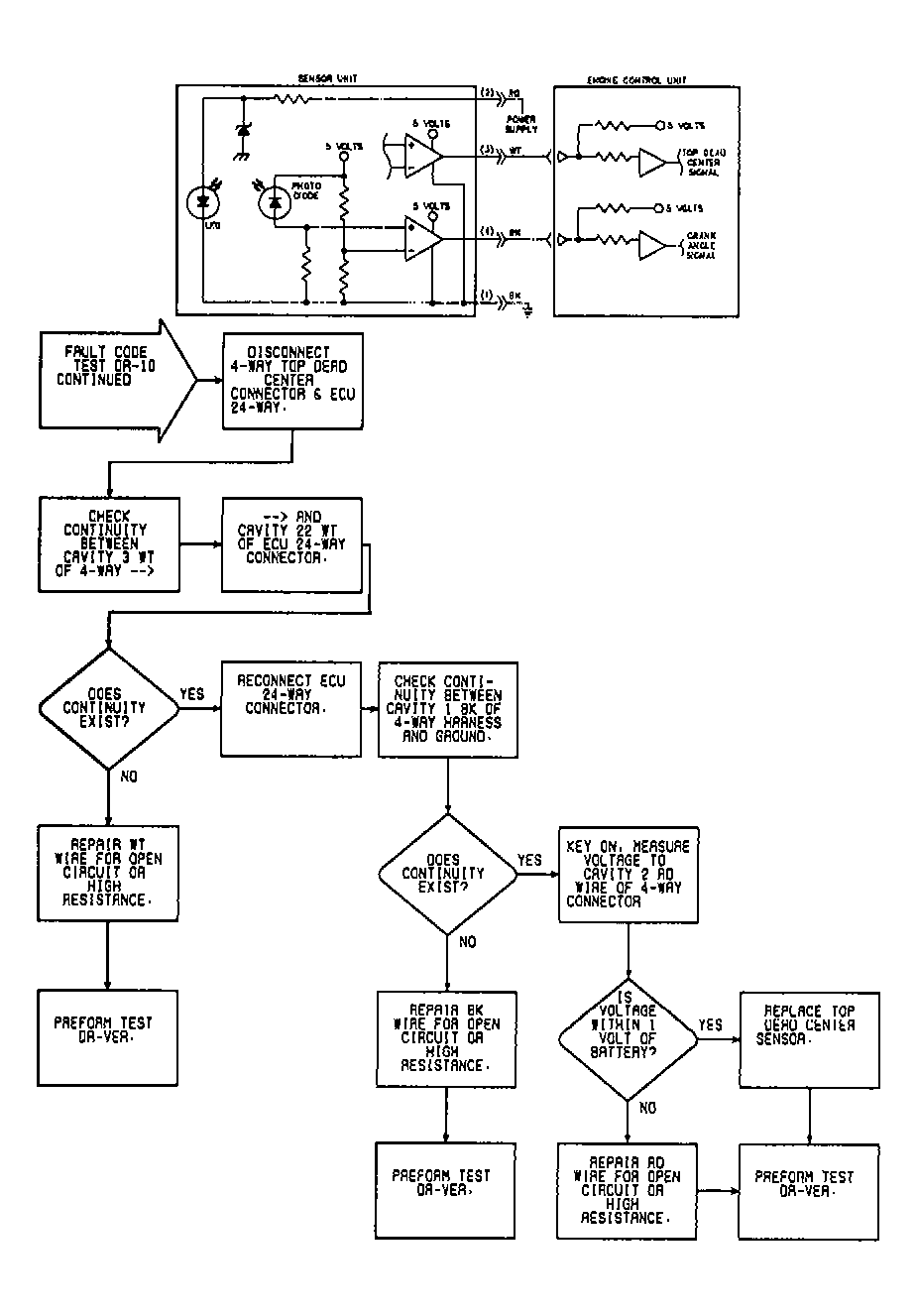

Fig 2: DR-10 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
G90C12684
